About this item

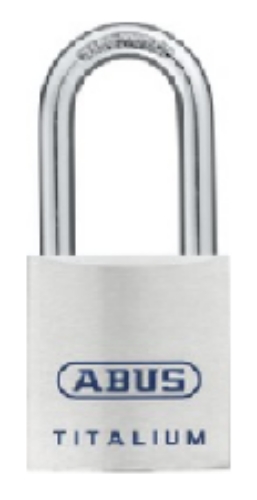

The ABUS 80TI/40HB40 C KD is a Titalium Series padlock rated at ABUS Security Level 6, with a long shackle and a keyed different configuration so each lock in a group operates on its own unique key. The solid lock body is made from TITALIUM aluminum alloy, a material that delivers security comparable to brass at significantly lower weight. The 9/32-inch hardened steel shackle carries NANO PROTECT plating for extreme corrosion resistance, and a 6-pin precision cylinder with paracentric keyway adds resistance to picking and unauthorized key duplication. Two keys are included.
What TITALIUM aluminum alloy means for Security Level 6 performance
TITALIUM is ABUS's proprietary aluminum alloy developed specifically for padlock bodies that need the structural strength of traditional brass without the weight penalty. At Security Level 6, the 80TI/40HB40 sits in the upper range of the standard padlock line, suited to high-traffic commercial installations, outdoor equipment enclosures, transit fleet hardware, and any application where corrosion resistance and attack resistance both need to be addressed in one unit.
NANO PROTECT shackle plating and what it resists
The hardened steel shackle uses NANO PROTECT surface treatment, an ABUS corrosion barrier that outperforms standard chrome plating in salt spray and moisture exposure. This matters on outdoor installations where shackle corrosion is the most common cause of padlock failure over time. The shackle is double bolted, meaning it locks at both sides of the shackle arch when closed, which significantly increases resistance to prying and cutting compared to single-bolt designs.
How the long shackle configuration affects installation compatibility
The 40HB40 designation in the model number indicates a long shackle with 1-9/16-inch shackle height, compared to the standard shackle height on the base 80TI/40 model. The additional clearance makes this padlock the correct specification for thicker chain links, larger hasp staples, locker handle bars, and cobra loop cables with a wider loop diameter. The shackle width is 13/16 inch and the shackle diameter is 9/32 inch. Confirm both shackle height and diameter are compatible with the hasp or chain being secured before ordering.
Chrome-plated cylinder plugs and the paracentric keyway
The 6-pin precision cylinder uses a paracentric keyway, a profile with an irregular geometry that makes it significantly harder to pick or bypass with standard tools than a conventional keyway. The cylinder plugs are chrome-plated for additional corrosion resistance independent of the lock body treatment. The large tulip-shaped key head makes the key easy to locate and operate in low-visibility conditions, which is a practical detail on job sites and equipment yards used during early morning or evening hours.
Keyed different supply and what KD means for access control
The KD designation means each padlock ships with a unique key cut that does not match any other lock in a keyed different order. This configuration is the correct choice for storage facilities, locker banks, equipment cages, and transit fleet lockups where individual access control is required at each secured point. No two locks in a KD group open with the same key. For multiple locks that need to open from a single key, a keyed alike configuration is the appropriate specification instead.
Where the 80TI/40HB40 sits in the ABUS Titalium padlock range
The full Titalium line covers multiple shackle heights, body sizes, and security levels. Browse the complete ABUS Titalium padlocks catalog to compare models across the series. For the broader ABUS padlock selection including brass, solid steel, and weather-protected options, the padlocks section covers the full range. For security hasps, chains, and accessories compatible with this padlock, miscellaneous locks is available for reference.
Confirm shackle height and diameter compatibility with the hasp or chain before ordering. Two keys are included. A hasp or cable is required and is not included.
