About this item

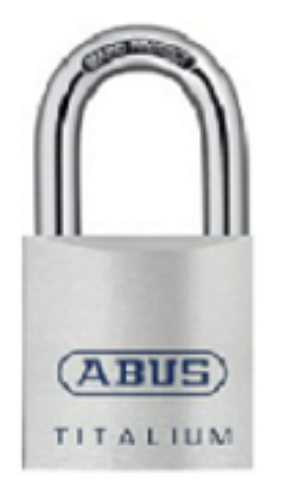

The ABUS 80TI/50 C KD is a Titalium Series padlock rated at ABUS Security Level 8, keyed different so each lock in a group operates on its own unique key. The 1-31/32-inch lock body is made from TITALIUM aluminum alloy, a proprietary ABUS material that delivers the structural strength of traditional brass at significantly lower weight. The 25/64-inch hardened steel shackle carries NANO PROTECT plating for extreme corrosion resistance, and a 6-pin precision cylinder with paracentric keyway provides protection against picking and unauthorized key copying. Two keys are included.
What TITALIUM aluminum alloy delivers at Security Level 8
TITALIUM is ABUS's proprietary aluminum alloy developed for padlock bodies that need high structural integrity without the weight of brass. At Security Level 8, the 80TI/50 sits in the upper tier of the ABUS padlock range, built for commercial and industrial installations where both corrosion resistance and attack resistance are required over the long term. The solid body construction and silver-finish appearance make it a practical fit for high-visibility locations as well as utility and equipment environments.
NANO PROTECT shackle plating and double bolting
The hardened steel shackle uses NANO PROTECT surface treatment, an ABUS corrosion barrier that outperforms standard chrome plating in moisture and salt spray exposure. The shackle is double bolted, locking at both sides of the arch when closed, which increases resistance to prying and cutting compared to single-bolt shackle designs. The shackle height is 1-3/8 inches and the diameter is 25/64 inch. Chrome-plated cylinder plugs provide an additional layer of corrosion resistance independent of the body and shackle treatments.
How the 80TI/50 body size affects installation fit
The 50 designation in the model number refers to the 1-31/32-inch body width, the larger of the two standard 80TI body sizes. The wider body supports a 25/64-inch shackle diameter, which requires a hasp staple opening sized to accept that clearance. Body depth is 29/32 inch and overall height is 3-21/32 inches. Confirm the hasp staple opening accepts a 25/64-inch shackle diameter and that the shackle width of 63/64 inch clears the hardware being secured before ordering.
Typical applications for the 80TI/50 at this security level
At Security Level 8, this padlock is suited to cellar doors, gates, storage units, equipment cages, tool containers, locker systems, cabinet banks, and high-value outdoor enclosures where an aluminum alloy body is preferable to brass for weight reasons without conceding on attack resistance. The tulip-shaped key head makes the key easy to locate and operate in low-light field conditions.
What keyed different means and when to specify it
The KD designation means each padlock ships with a unique key cut that does not open any other lock in the same order. No two locks in a keyed different group share a key. This is the correct specification for storage facilities, locker banks, equipment yards, and transit fleet applications where individual access control at each secured point is required. When multiple locks across a property need to open from a single key, a keyed alike configuration is the appropriate alternative.
Where the 80TI/50 sits in the ABUS Titalium padlock line
The Titalium range covers multiple body sizes and shackle configurations. Browse the complete ABUS Titalium padlocks catalog to compare the full series. For the broader ABUS padlock selection including brass and weather-protected options, the padlocks section covers the full range. For compatible security hasps and accessories, miscellaneous locks is available for reference.
Confirm shackle diameter and hasp staple compatibility before ordering. Two keys are included. A hasp or cable is required and is not included.
