About this item

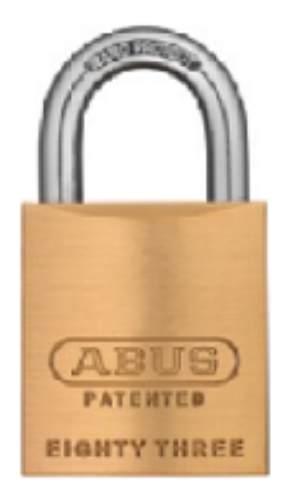

The ABUS 83/50-300 S2 is a rekeyable solid brass padlock rated at ABUS Security Level 8, fitted with a Schlage C keyway cylinder and a larger 83/50 body. The padlock body width is 1-57/64 inches with a shackle diameter of 3/8 inch and a shackle width of 55/64 inch. The solid brass body pairs a high-precision pin tumbler cylinder with a special alloy steel shackle carrying NANO PROTECT coating for corrosion resistance. The cylinder is field-rekeyable using the patented pinning window and the shackle is exchangeable without tools. SKU: 83/50-300 S2.
How the 83/50 body size differs from the 83/45 in the ABUS rekeyable brass padlock range
The 83/50 designation refers to the padlock body width of 1-57/64 inches, which is wider than the 83/45 body at 1-7/8 inches. The shackle diameter on the 83/50-300 S2 is 3/8 inch, compared to the 5/16-inch shackle on the 83/45 series. The wider body and larger shackle make the 83/50 the correct specification when the installation requires a heavier shackle gauge, a larger hasp staple opening, or chain links with a wider inside diameter than the 83/45 shackle can engage.
Both the 83/45 and 83/50 use the same Z-Bar mechanism, the same rekeyable cylinder design, and the same NANO PROTECT shackle treatment. The body size and shackle diameter are the differentiating factors. For the same Schlage C keyway in the 83/45 body with a 5/16-inch shackle, the ABUS 83/45-300 S2 with Schlage C keyway is also stocked.
How the Schlage C keyway cylinder works with the 83/50 S2 rekeying system
The Schlage C keyway is one of the most widely installed commercial key profiles in the United States, found across mortise locks, cylindrical locks, and padlocks in offices, schools, healthcare facilities, and institutional buildings. Fitting the 83/50-300 S2 with a Schlage C cylinder allows this padlock to be integrated directly into an existing Schlage C key system after rekeying the cylinder to the target key cuts.
Rekeying is performed by removing the cylinder from the 83/50 body through the patented pinning window, repinning to the correct cuts, and reinstalling. No tools beyond a standard rekeying kit are needed, and no other component of the padlock is affected. The body, shackle, and Z-Bar all stay in place during a rekey. For Schlage C-compatible key blanks and cylinder components, the cylinders, cores, and keys section covers the available options.
What the Z-Bar and NANO PROTECT shackle provide on the 83/50-300 S2
The Z-Bar is an ABUS-patented mechanism built into the cylinder that switches the padlock between key-retaining and non-key-retaining operation within seconds. In key-retaining mode, the key stays in the cylinder until the shackle is closed, preventing the key from being removed from an open lock. In non-key-retaining mode, the key can be withdrawn at any point. Switching between the two modes requires no tools and is reversible at any time.
The 3/8-inch shackle is made from special alloy steel with NANO PROTECT surface treatment. NANO PROTECT is an ABUS corrosion barrier that performs in salt air, prolonged moisture exposure, and high-humidity industrial environments where standard chrome plating on steel shackles degrades. The 83/50-300 S2 is suited to gates, storage unit enclosures, equipment cages, grating covers, tool containers, cellar windows, shed doors, and switchboard panels. For replacement shackles and ABUS padlock accessories, the padlock parts and accessories catalog covers the available options.
Other ABUS 83 Series S2 rekeyable padlock options at American Locksets
The ABUS 83 Series S2 covers multiple body sizes and keyway configurations. For the 83/45 body without a pre-installed cylinder, allowing you to fit your own existing cylinder, the ABUS 83/45 WO S2 without cylinder is stocked. For the complete ABUS rekeyable padlock range across all body sizes and keyway options, browse the ABUS padlocks catalog.
Confirm the Schlage C keyway is compatible with the existing key system and that the 3/8-inch shackle diameter fits the hasp staple or chain hardware before ordering. Two keys are included.
