About this item
The ABUS 07050 is a 5-drawer file cabinet locking bar constructed from 16-gauge formed steel, measuring 56-3/4 inches long by 1-3/8 inches wide. It spans all five drawer fronts and locks every drawer simultaneously with a single padlock, eliminating the vulnerability of single-drawer cabinet locks that leave the remaining drawers unprotected. The bar is reversible for left or right side mounting, requires a minimum 1/2-inch cabinet frame width adjacent to the drawer openings, and ships with mounting screws. A padlock with a 40mm body and minimum 1/4-inch shackle is recommended and is sold separately. SKU: 07050.
Why a 5-drawer file cabinet needs a full-length locking bar instead of a built-in drawer lock
Most standard filing cabinets ship with a single built-in lock that engages a rod running through the cabinet body. These locks are functional for basic access control, but they have two well-documented limitations: the locking rod can often be manipulated through the drawer gap with a thin tool, and a single point of failure means the entire security of five drawers rests on one lock mechanism. The 07050 addresses both problems by providing a physical steel barrier across all five drawer fronts simultaneously, secured by an external padlock that the facility controls and can upgrade independently of the cabinet.
The spring-loaded hinge holds the bar clear of the drawers during normal work hours, requiring no adjustment between accesses. When security is needed, the bar swings down across all five drawer faces and a padlock is inserted through the hasp eye to hold it in place. No drawer can be opened while the bar and padlock are engaged. For ABUS padlocks sized for the 40mm body minimum required on this bar, the ABUS padlocks catalog covers the full selection. For padlocks from all brands, the padlocks section covers the complete range.
What the 56-3/4 inch length means for cabinet compatibility and installation requirements
At 56-3/4 inches, the 07050 is the longest bar in the ABUS file cabinet series and is sized specifically for the total drawer-face height of standard 5-drawer vertical filing cabinets. Installing this bar on a 4-drawer or 3-drawer cabinet will result in a bar that extends below the bottom drawer and cannot seat correctly against the drawer faces. The bar length is fixed to the 5-drawer configuration and is not adjustable.
The cabinet must have at least 1/2 inch of vertical steel frame space adjacent to the drawer openings for the mounting screws to anchor. This is the minimum frame width required for secure installation. Most standard steel filing cabinets have adequate frame width, but confirm this measurement on the cabinet before ordering. Mounting is reversible, so the bar installs on either the left or right side of the cabinet face depending on workspace layout. No drilling into the cabinet body beyond the mounting screw holes is required.
Where the 07050 fits in the ABUS file cabinet locking bar range

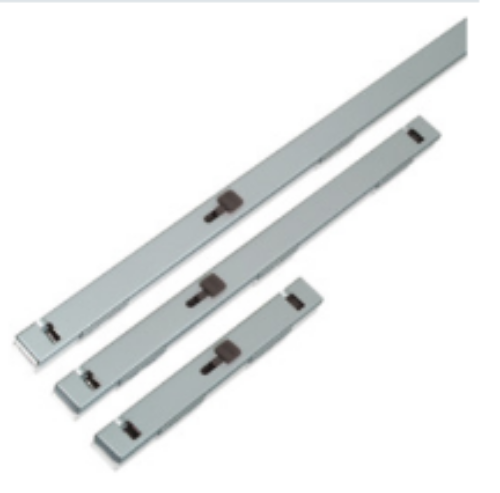

The ABUS file cabinet bar line covers 1-drawer through 5-drawer configurations. The 07050 is the largest model and is used only on 5-drawer cabinets. For 4-drawer cabinets, the ABUS 07040 4-drawer file cabinet locking bar is the correct specification. For 2-drawer cabinets, the ABUS 07020 2-drawer file cabinet locking bar is stocked. All models in the line meet the Department of Defense Industrial Security Requirements and share the same 16-gauge steel construction, spring-loaded hinge design, reversible mounting, and DOD compliance standard as the 07050. For padlock replacement shackles and accessories compatible with the padlock used with this bar, the padlock parts and accessories catalog is available.
Confirm the cabinet has 5 drawers and a minimum 1/2-inch frame width before ordering. A padlock with a 40mm body and 1/4-inch minimum shackle is recommended and is not included. Mounting screws are included.
