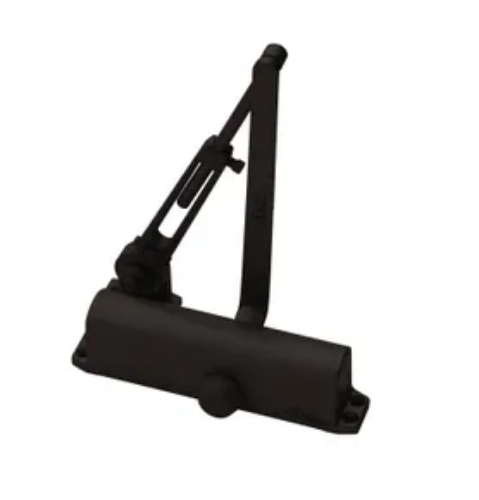

Accentra (Yale) 1111BF 690 Multi Size Non Hold Open Door Closer, Dark Bronze Finish

The Accentra (Yale) 1111BF 690 is a multi-size hold-open door closer finished in 690 dark bronze, certified to ANSI/BHMA A156.4 Grade 1 and listed by UL and cUL with compliance to UL10C. The 1111BF is the hold-open model in the 1100 series, meaning the door can be held in the open position rather than automatically returning to closed on every cycle. The closer has an aluminum body, adjusts across spring sizes 1 through 4, and includes adjustable backcheck and closing speed valves. Sleeve nuts (1-3/4 inch) are included. Non-handed. SKU: 1111 690.

Why the 690 dark bronze finish is specified on the Yale 1111BF

Finish 690 is the ANSI/BHMA designation for dark bronze. On commercial door hardware, the finish of the door closer is matched to the finish of the other hardware on the same door: the lever, the deadbolt, the hinges, and any exit device trim. When the door hardware specification calls for dark bronze finishes throughout, the 690 finish on the 1111BF ensures the closer visually matches the rest of the hardware set.

Dark bronze is commonly specified in commercial interiors where the door hardware palette is warm-toned, and on building exteriors where the darker finish reduces the visual contrast with dark-colored door frames or frames with a bronze anodized finish. The 690 designation on the closer corresponds directly to the 690 finish code used across Accentra lever locks, strikes, hinges, and other door hardware components from the same line. For the same 1111BF closer in 689 aluminum finish, the Accentra Yale 1111BF 689 aluminum door closer is also stocked.

What hold-open means on the Yale multi-size door closer and where it is used

The 1111BF hold-open function allows the door to remain in the open position when pushed past the hold-open engagement angle. The closer holds the door there until it is manually moved toward closed, at which point the spring takes over and returns the door at the controlled speed set by the closing speed valve. This is the correct specification for service corridors, delivery access doors, maintenance passages, and any commercial door that needs to stay open during operational periods without staff manually propping it.

The hold-open function on the 1111BF is mechanical. It does not require electrical power or integration with a building management or fire alarm system. For fire-rated door assemblies or doors where code requires automatic closing on every cycle, the non-hold-open 1101BF is the required model. Confirm that the hold-open function is permitted by the applicable fire and building code for the specific door before specifying the 1111BF. For the full Accentra closer range, browse the Accentra door closers catalog. For all door closer options across brands, the door closers section is available.

Spring size selection, valve adjustments, and installation details for the 1111BF 690

The 1111BF 690 is adjustable across spring sizes 1 through 4, with size 1 applying the lightest closing force for lighter interior doors and size 4 providing heavier closing force for wider or heavier commercial doors. The spring size selection is made during installation based on door weight, door width, and the air pressure conditions at the opening.

The backcheck valve limits how forcefully the door can be pushed open past a set angle, protecting the door, frame, and wall hardware from impact damage. The closing speed valve sets how quickly the door moves from open to fully closed once released. Both valves are field-adjustable after installation. Sleeve nuts (1-3/4 inch) are included for through-bolt mounting applications. The closer is non-handed and covers both left-hand and right-hand door configurations without additional parts. For other commercial hardware and builders hardware, the builders hardware section covers the full range. For the complete commercial lock and hardware offering at American Locksets, browse the commercial locks section.

Confirm hold-open is permitted at this location by applicable code before ordering. Sleeve nuts included. Finish: 690 dark bronze. Non-handed.
