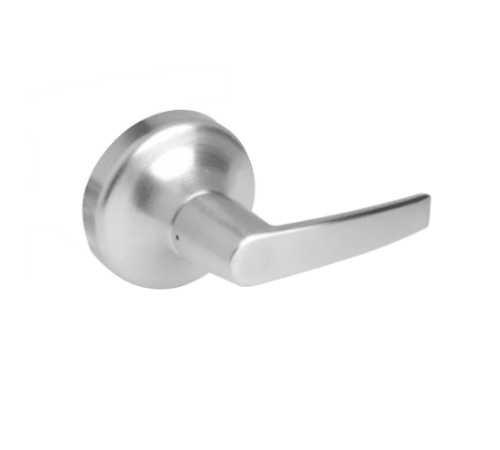

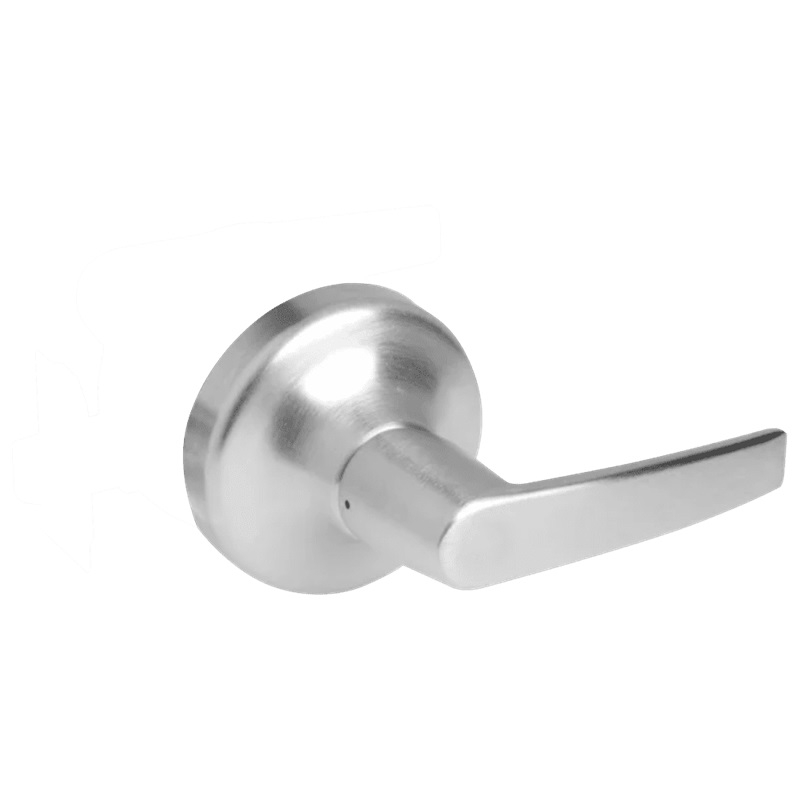

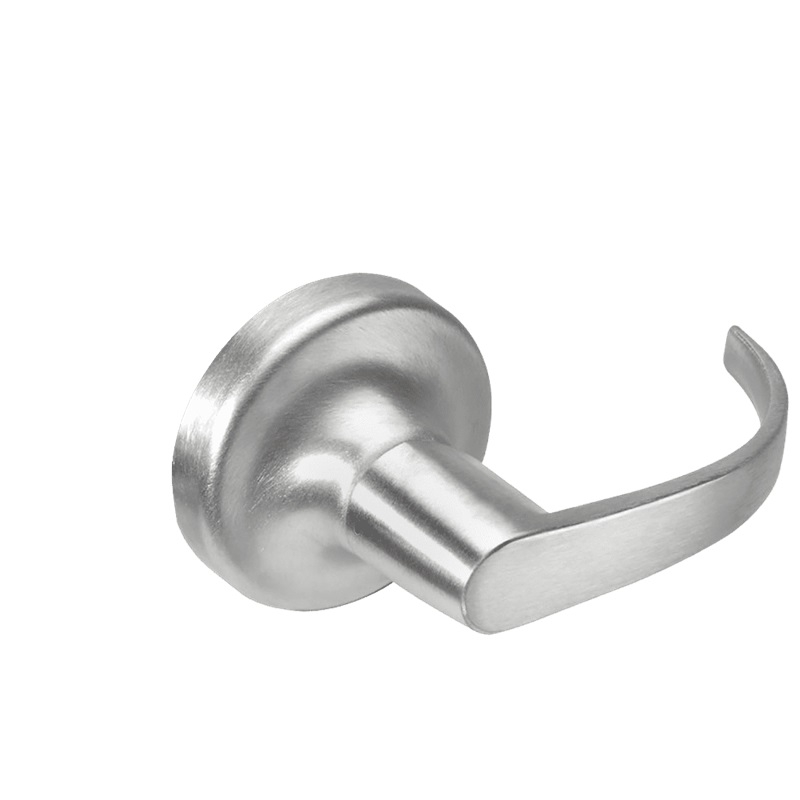

Accentra (Yale) 355LN Grade 2 Dummy Lever Trim

The Accentra (Yale) 355LN is a Grade 2 dummy lever trim for non-operational applications where a lever handle is required for appearance or ADA-compliant door pull functionality without an active locking or latching mechanism. Also referenced as the 4655LN in some Yale catalog formats, the 355LN is available in three lever styles: Augusta (AU), Monroe (MO), and Pacific Beach (PB). All three are non-handed and comply with ADA requirements for easy gripping and lever operation. Door thickness: 1-3/8 inches to 1-3/4 inches. Seven finishes available. SKU: 355LN.

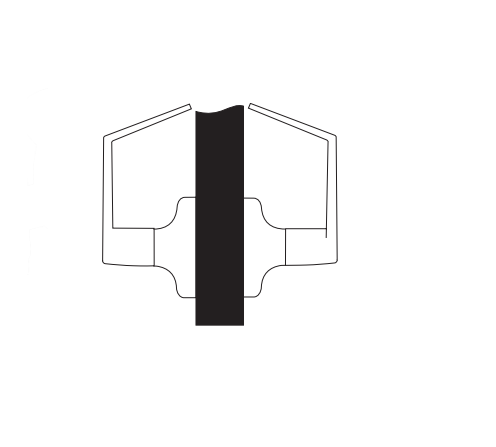

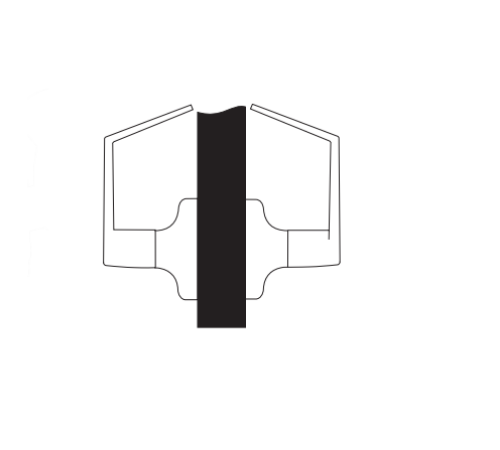

What a dummy lever trim is and where the 355LN is installed

A dummy lever trim is a lever handle that is fixed to the door surface and does not operate any latch, lock, or locking mechanism. It is used purely for appearance and for pull functionality on doors that use a push-pull operation rather than a latching handle. The door opens and closes by pushing or pulling the lever, but the lever itself does not retract a bolt or release a latch.

Typical applications include closet doors, pantry doors, passage doors in commercial interiors where a separate latch mechanism is already present, and decorative door panels where the visual continuity of the lever style across the building is maintained even on non-latching doors. The 355LN is also used as the inactive trim side of a pair of doors where one side needs a lever handle for ADA-compliant gripping but the door itself is fixed or passive. For Accentra lever locks with full latch and lock functionality in the same lever styles, the Accentra lever locks catalog covers the available configurations.

Which lever styles are available and what ADA compliance means for the 355LN

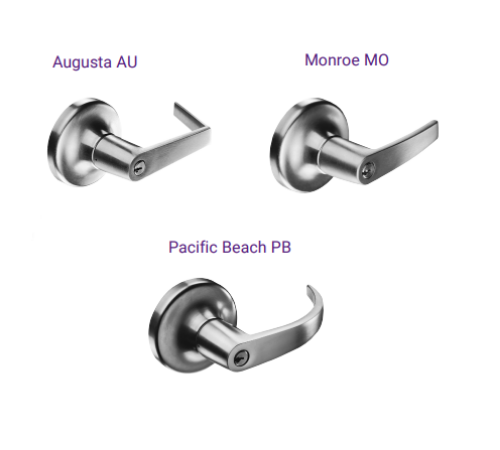

The 355LN is offered in three lever styles. Augusta (AU) is a straight lever with a clean horizontal profile. Monroe (MO) is a curved lever with a gently arched design. Pacific Beach (PB) is a rounded lever with a wider grip profile. All three are non-handed, meaning no left-hand or right-hand designation is required when ordering. All three comply with ADA requirements: they can be operated with one hand without tight grasping, pinching, or twisting of the wrist, and they require less than 5 lbs of operating force. ADA compliance applies to the gripping and pulling action, not to locking or latching, since this is a dummy trim.

The ADA-compliant grip profile makes the 355LN the correct specification for accessible door locations in commercial and institutional buildings where all operable door hardware must meet ADA standards regardless of whether the hardware includes a latch or lock function. For builders hardware and other commercial door hardware, the builders hardware section covers the available range.

Finish options, door thickness range, and warranty coverage for the 355LN

The 355LN is available in seven finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze Oil Rubbed, 625 (US26) Bright Chromium Plated, and 626 (US26D) Satin Chromium Plated. The finish should be selected to match the active lever trim and other door hardware on the same door or door opening.

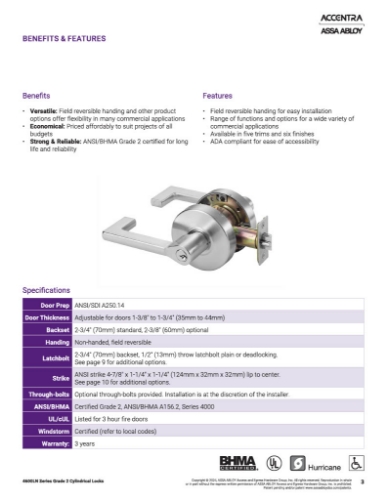

The lockset is preassembled for door thicknesses from 1-3/8 inches (35mm) to 1-3/4 inches (44mm), preset at the factory for 1-3/4 inches. The 355LN carries a five-year limited warranty in conjunction with the 5300LN series, plus a lifetime warranty against lever sag and lever finish on all lever trims. For the complete commercial lock range at American Locksets including other Accentra hardware, browse the commercial locks section. For miscellaneous locks and specialty hardware, the miscellaneous locks section is also available.

Specify lever style and finish when ordering. Non-handed. Door thickness 1-3/8 to 1-3/4 inches. Also referenced as: 4655LN.
