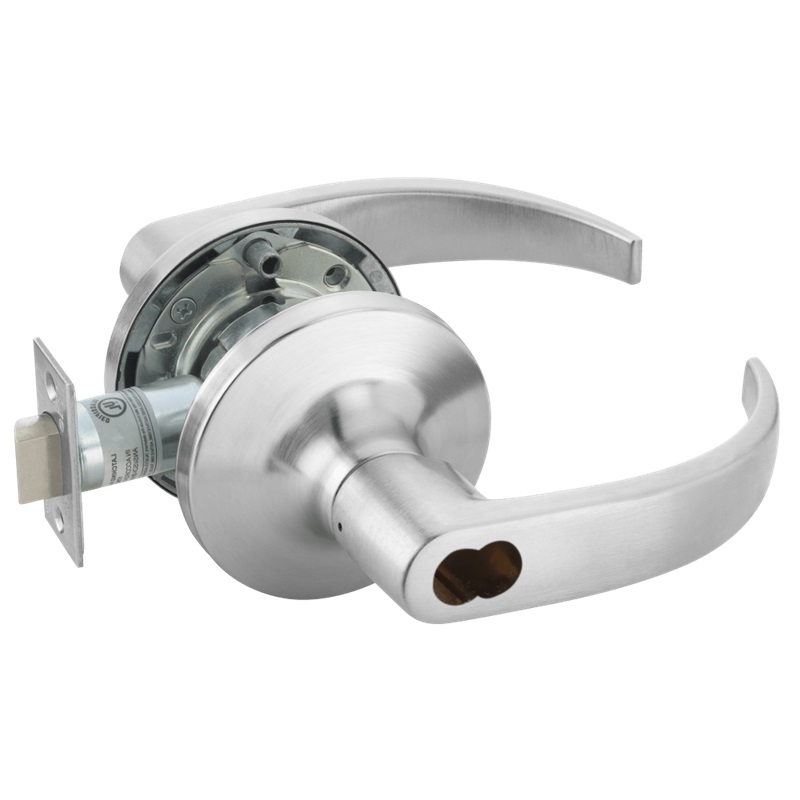

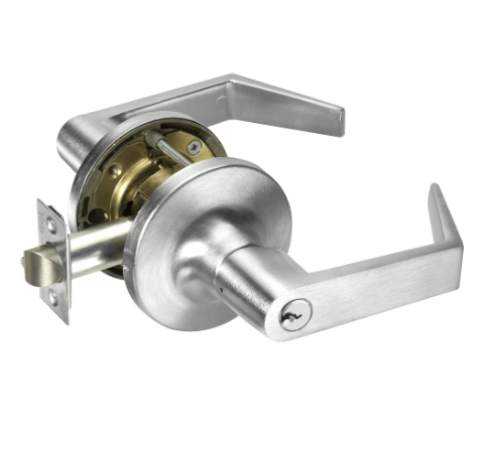

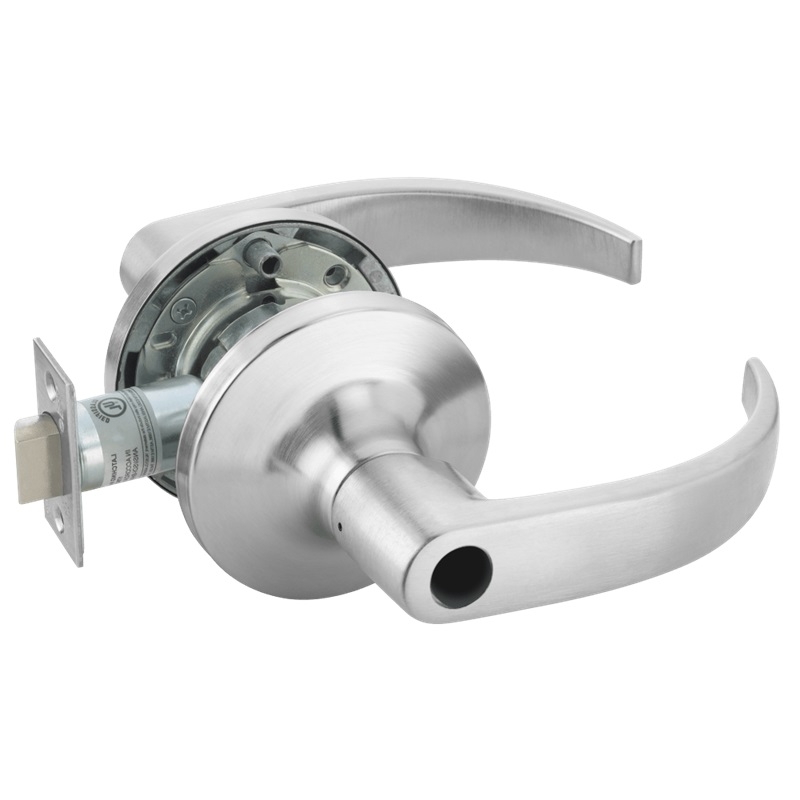

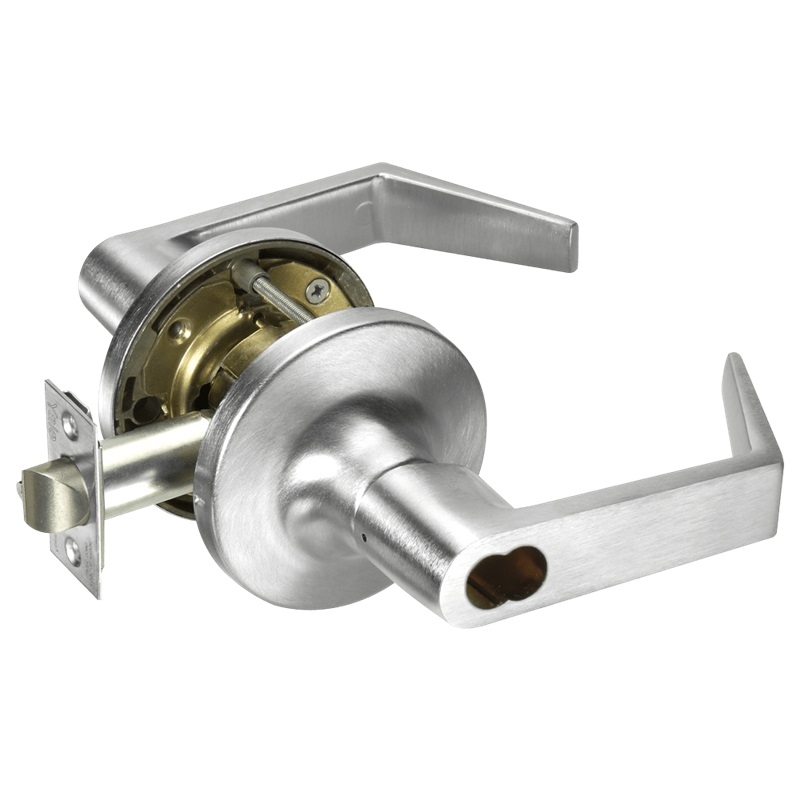

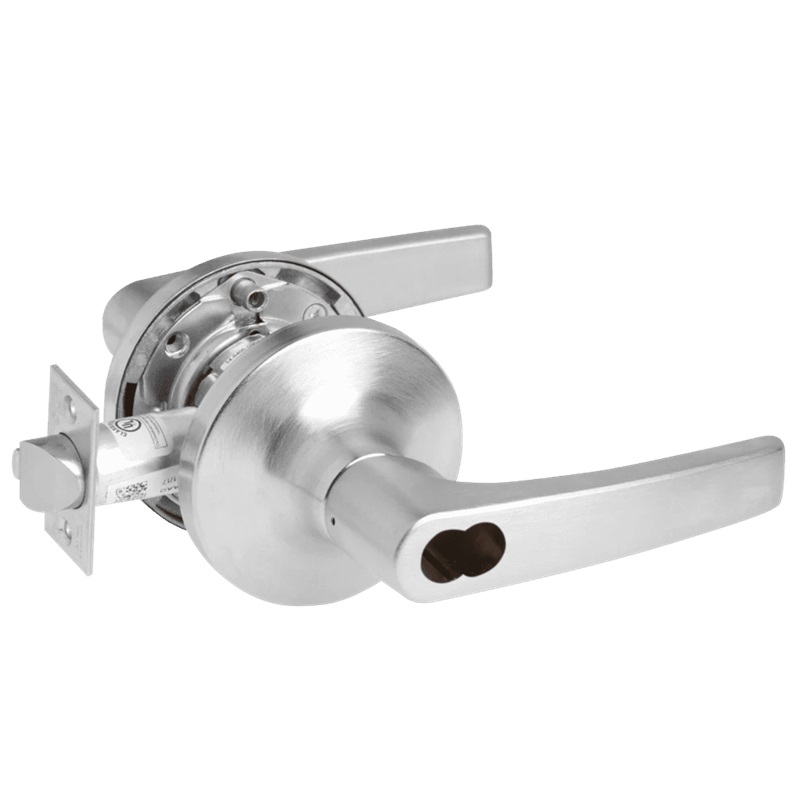

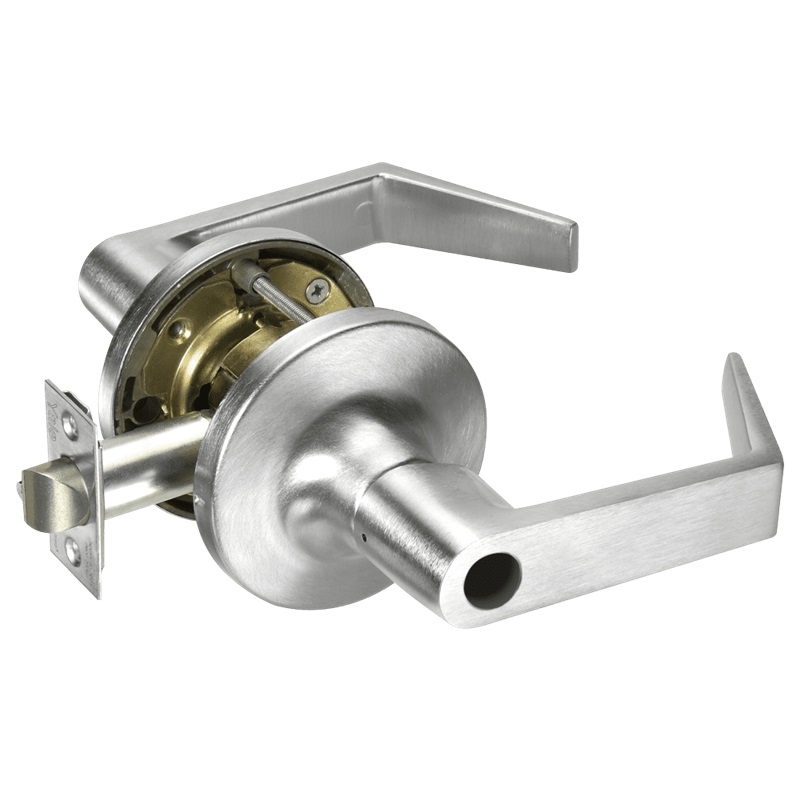

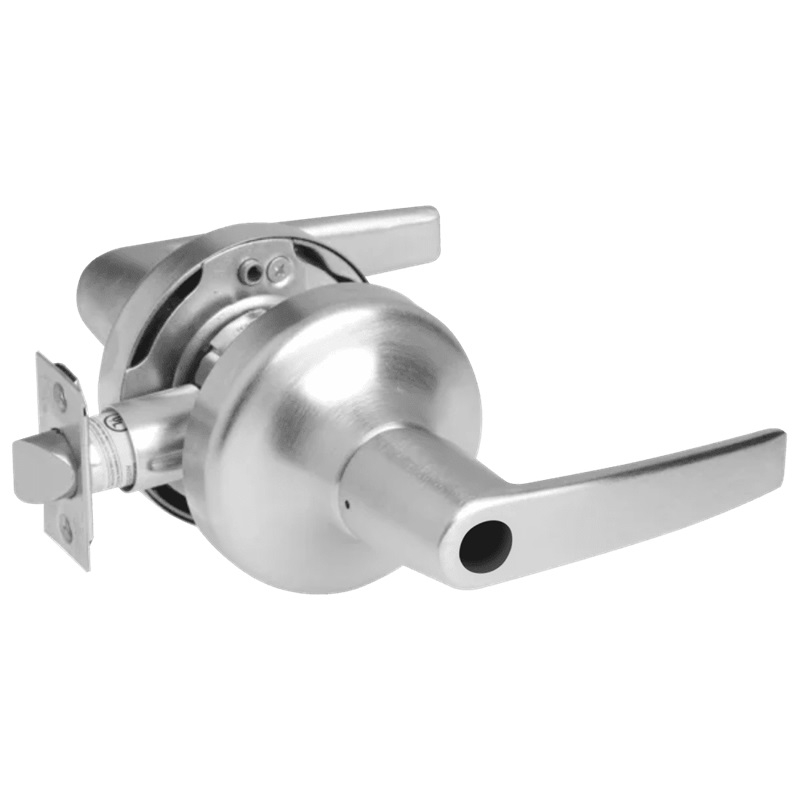

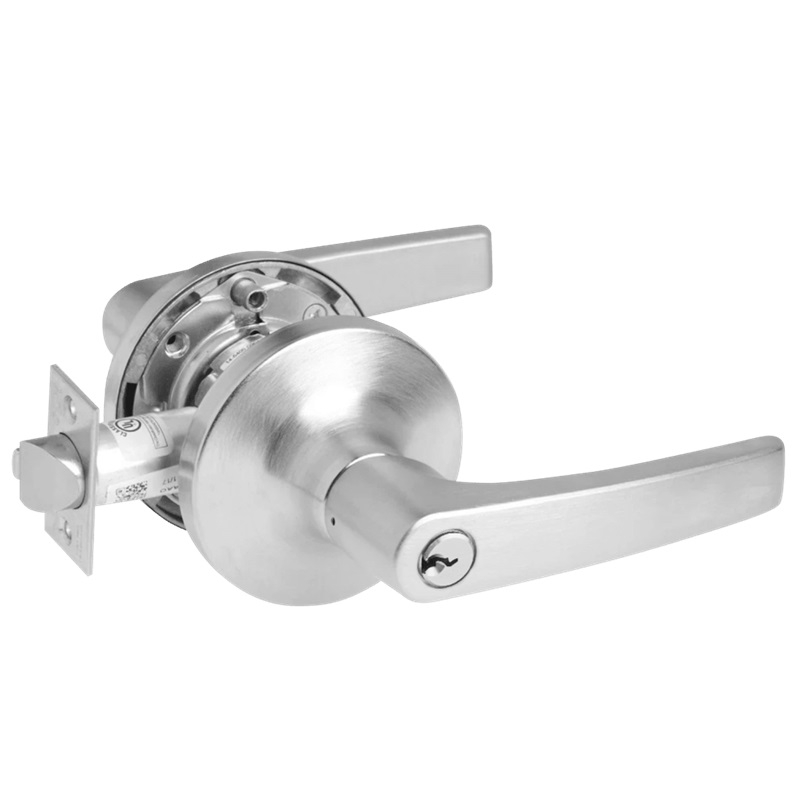

Accentra (Yale) 5421LN Grade 1 Communicating Lock

Accentra (Yale) 5421LN Grade 1 Communicating Lock

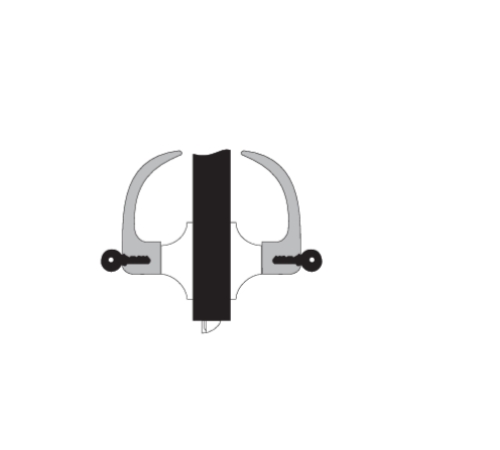

Communicating Lock-ANSI F80

For communicating or store entrance doors. Deadlocking latchbolt. Either lever operates latchbolt (except when key in either lever locks or unlocks the lever independently of the other). Should be used only in offices or rooms with multiple entries.

• Lever handles are Free-Wheeling in locked position.

ANSI: Certified ANSI/BHMA A156.2, Series 4000 Grade 1.

Fire listings: UL - cUL Fire Label for all door functions up to 3 hours.

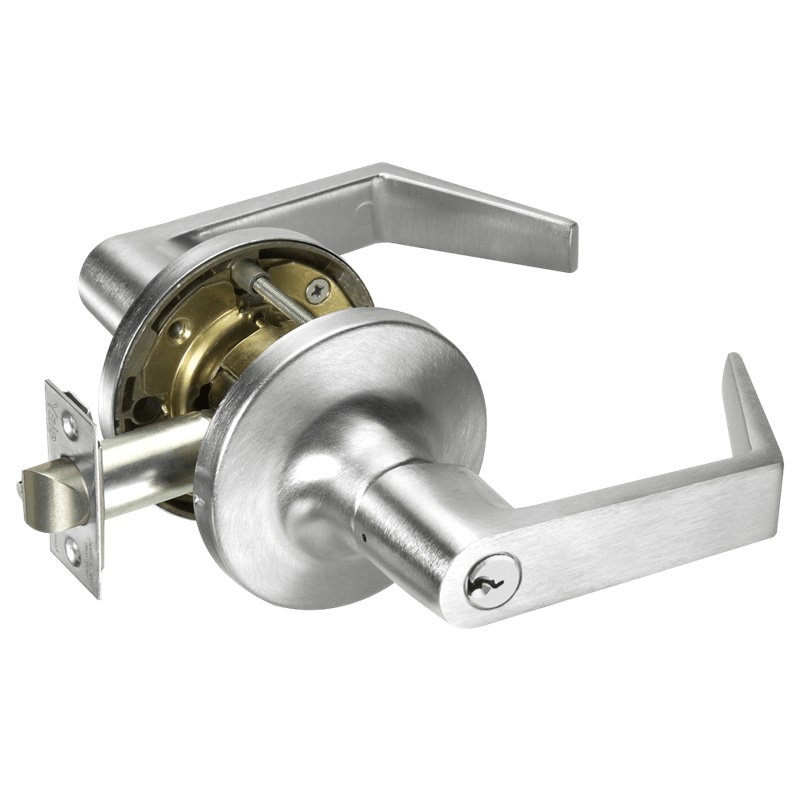

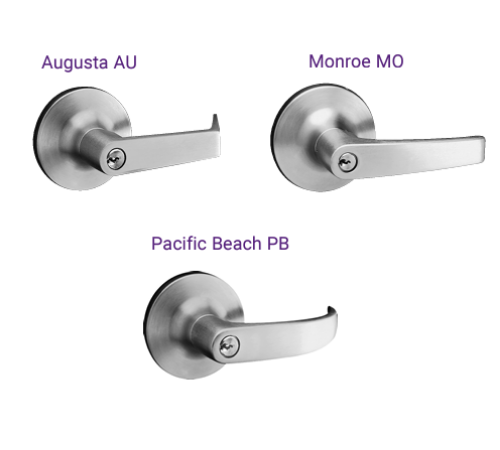

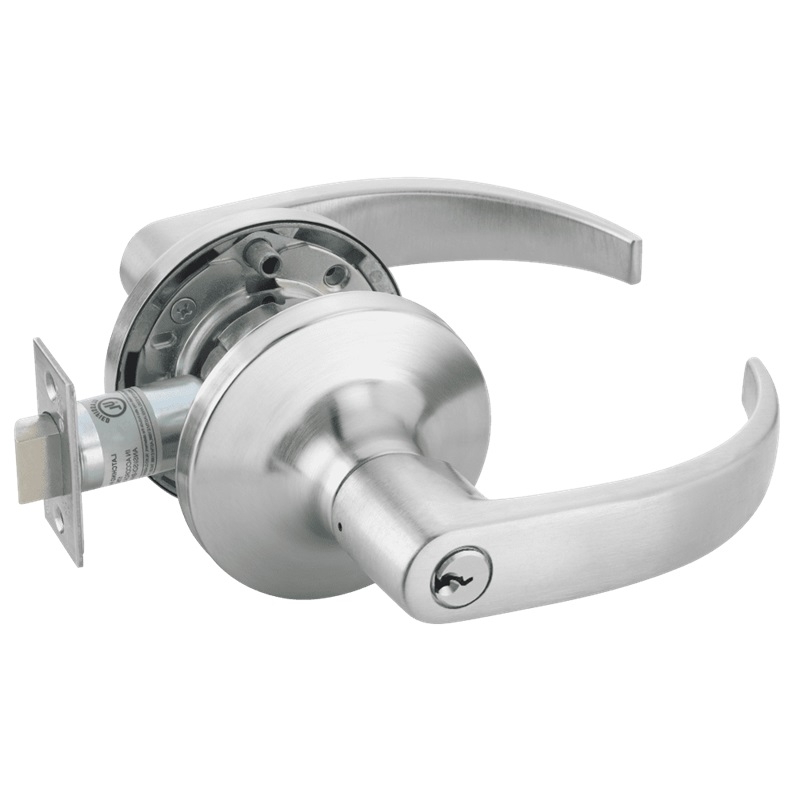

Non-Handed: Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.

Door Thickness: Patented door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4" to 2". Rose spacers available for 1-3/8" thick doors.

Lock Chassis: Lockset chassis constructed of heavy-gauge cold-rolled steel, trivalent chrome plated to protect against rust and corrosion.

Free wheeling lever trim: All locking functions feature the patented Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.

Backset: 2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) andExtensionslinksup to 19".

Latchbolt: Stainless steel with 1/2throw. Optional: 3/4throw deadlocking fire latch for pair of doors.

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).

Strike: Wrought brass, bronze or stainless steel ANSI curved lip, 4-7/8x 1-1/4x 1-1/4lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.

Cylinder: Brass, 6-pin, Y1 (PARA) keyway standard.

Keying Features Available: 7-pin,Master keying, Construction master keying.

Keys: Two nickel silver standard.

Warranty: The 5400LN Series cylindrical lever lock carries a seven-year warranty. Likewise, the 5400LN carries a lifetime warranty against lever sag and lever spring breakage.

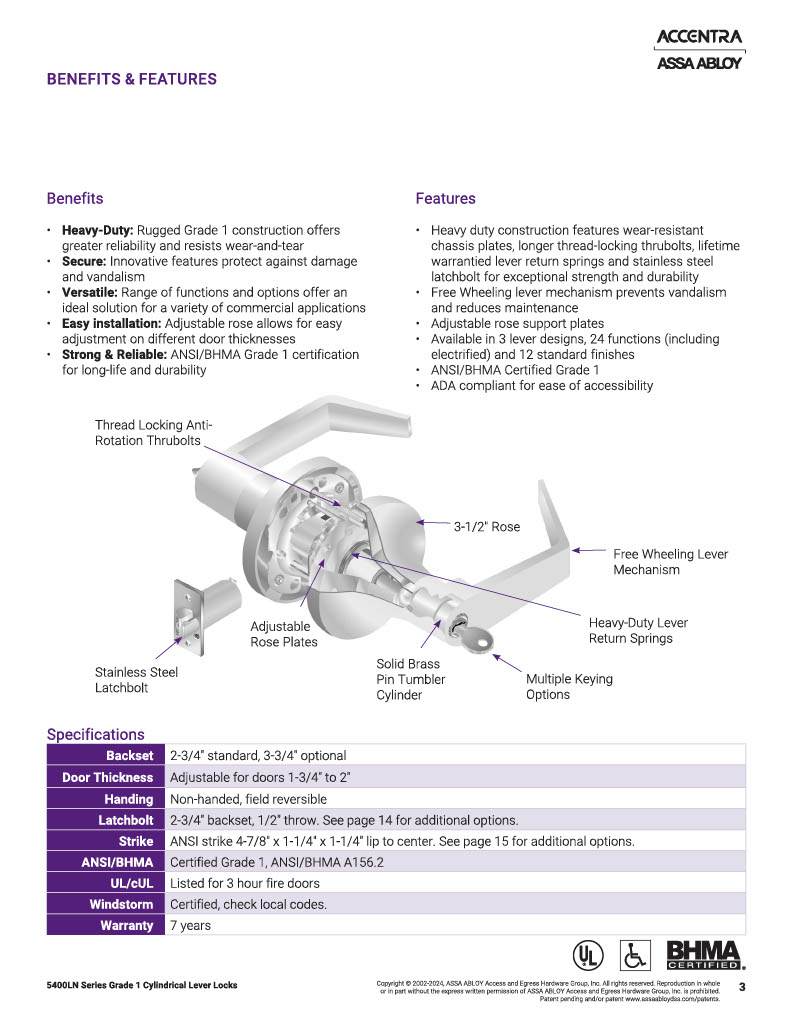

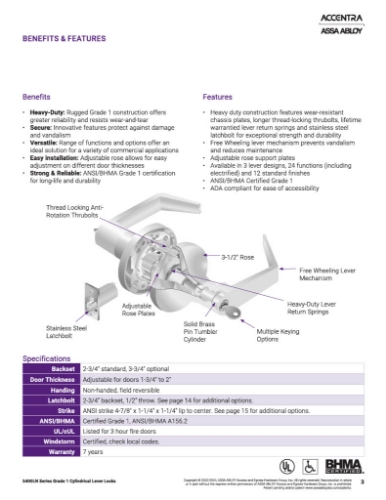

Full-featured grade 1 lever lockset offering

• Patented Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.

• Stainless steel latchbolt provides added strength and wear resistance. Direct 1/2" throw is standard.

• A 3/4" latch throw for fire-rated or pairs of doors is available.

• Wear-resistant plates in the chassis help extend the life of the lockbody and provide smoother lock operation.

• Longer thread locking through-bolts through the chassis provide greater stability and prevent rotation.

• Lifetime warranted heavy-duty lever return springs prevent lever sag and provide positive return of lever to horizontal position.

• Patented (patent no. 6,131,970) door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4" to 2-1/4". Rose spacers available for 1-3/8" thick doors.

• Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easym gripping and operation.

• Expanded cylinder and keying options: - Yale- 6- and 7-pin standard and interchangeable corecylinders including Yale KeyMark- patented keyway cylinders. - Standard cylinders with Schlage C and Sargent- LA keyways. Small format interchangeable cores with Best keyways. - Levers which accept interchangeable core cylinders by Best, Schlage-, ASSA- and Medeco-.

3-1/2" roses cover ANSI/BHMA hollow metal door cutout.

A.D.A. The 5400LN meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1, all requiring ease of accessibility for the handicapped.
