Accentra (Yale) AU5408LN Grade 1 Classroom Lock with Augusta Lever

Classroom Lock-ANSI F84

For classroom or utility room doors. Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked by key).* Inside lever always active. Outside lever locked* or unlocked only by key.

Lever handles are Free-Wheeling in locked position.

Lever: Augusta AU

Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated

ANSI: Certified ANSI/BHMA A156.2, Series 4000 Grade 1.

Fire listings: UL - cUL Fire Label for all door functions up to 3 hours.

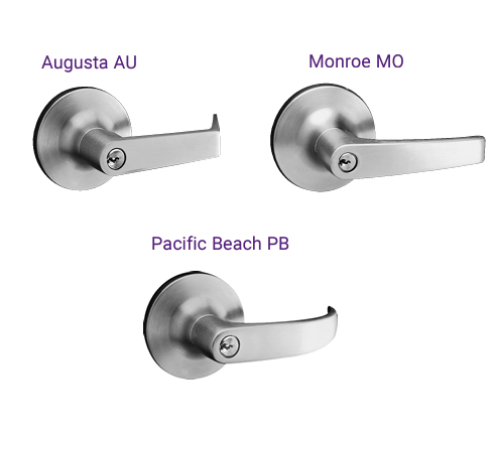

Non-Handed: Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.

Door Thickness: Patented door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4" to 2". Rose spacers available for 1-3/8" thick doors.

Lock Chassis: Lockset chassis constructed of heavy-gauge cold-rolled steel, trivalent chrome plated to protect against rust and corrosion.

Free wheeling lever trim: All locking functions feature the patented Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.

Backset: 2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) andExtensionslinksup to 19".

Latchbolt: Stainless steel with 1/2" throw. Optional: 3/4" throw deadlocking fire latch for pair of doors.

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).

Strike: Wrought brass, bronze or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.

Cylinder: Brass, 6-pin, Y1 (PARA) keyway standard.

Keying Features Available: 7-pin, Master keying, Construction master keying, Interchangeable core (IC).

Keys: Two nickel silver standard.

Warranty: The 5400LN Series cylindrical lever lock carries a seven-year warranty. Likewise, the 5400LN carries a lifetime warranty against lever sag and lever spring breakage.

Model: Accentra (Yale), 5408LNAU, AU5408LN, AU5408LN605, AU5408LN606, AU5408LN612, AU5408LN613, AU5408LN625, AU5408LN626,AU5408LN1210, AU5408LN1210LC, AU5408LN1210LC626, AU5408LN1220LC, MAU5408LN626, BAU5408LN626

Accentra (Yale) AU5408LN Grade 1 Classroom Lock with Augusta Lever

Name: Accentra (Yale) AU5408LN Grade 1 Classroom Lock with Augusta Lever
SKU: AU5408LN
Price: 539.84 USD
Availability: InStock

SKU: AU5408LN

In Stock

Chat

$539.84

About this item

If you're looking for the Yale classroom lock, this is it under its current name. Yale's commercial line became ASSA ABLOY Accentra in 2024, so the AU5408LN is the same lock schools and facilities have specced as a Yale 5408 for years. It's a Grade 1 cylindrical lockset set up for the classroom function, with the Augusta lever. The model number tells the story: AU is the Augusta lever, and the 08 is what makes it classroom function instead of storeroom.

How the classroom function works

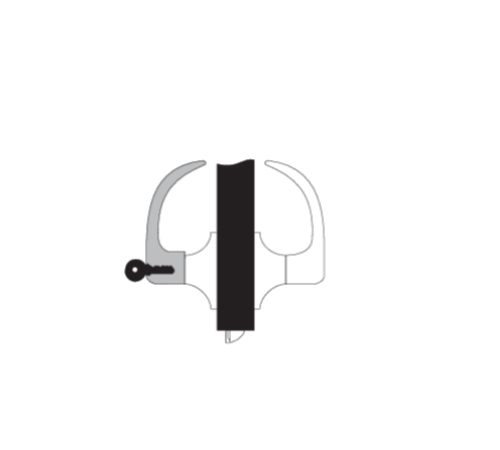

This is the part worth understanding before you buy, because "classroom" means something specific. With the AU5408LN (ANSI F84), the outside lever is locked and unlocked only by key. There's no thumbturn and no button inside the room. A teacher with a key locks or unlocks the door from the corridor side, and once it's set, it stays that way until someone keys it again. The inside lever is always free, so anyone in the room can always walk out, which keeps the door compliant for egress.

That key-only control is the whole point. It's why this function shows up on classroom and utility room doors: staff keep control of who gets in, the room never traps anyone inside, and there's no fiddly interior hardware for a student to tamper with. One thing to know if you're specifying for lockdown: because the outside lever locks from the corridor, a teacher has to step toward the door with a key to secure it. Plenty of districts still spec this as their standard classroom lock, but if your security plan calls for locking from inside the room without opening the door, that's a different function (often classroom security or intruder function), and worth confirming with your team before you order.

AU5408LN specifications

Grade: ANSI/BHMA A156.2, Series 4000, Grade 1, the top commercial cylindrical grade.
Function: Classroom, ANSI F84. Outside lever locked or unlocked by key only; inside lever always free.
Lever: Augusta, with the FreeWheeling mechanism. When the outside lever is locked, it spins freely up and down while staying secured, so there's nothing to wrench against.
Latchbolt: Deadlocking, 1/2 inch throw standard.
Cylinder: 6-pin conventional, keyed different, 2 keys. Schlage C and Yale keyways available, plus LFIC and SFIC less-core versions for IC core systems.
Handing: Field reversible. Bore 2-1/8 inch, backset 2-3/4 inch.
Door thickness: Adjustable rose plates fit 1-3/4 inch to 2 inch doors, and 1-3/8 inch with spacer plates.
Accessibility: Meets ADA and ANSI A117.1. Knurled levers available where local code requires a tactile warning.
Fire: UL and cUL fire labeled for door functions up to 3 hours.
Finishes: Seven, including satin chrome (626), bright brass (605), satin bronze (612), and oil-rubbed bronze (613).
Warranty: 7 years on the series, plus a lifetime warranty against lever sag and spring breakage.

Why the 5400LN holds up in schools

Classroom doors take more abuse than almost any opening in a building. Kids hang on levers, slam doors, and test every weak point daily. The reason the 5400LN survives is the Free Wheeling lever. On most lever locks, a locked lever is rigid, so when someone cranks on it, the mechanism eventually gives, sags, or snaps. The Free Wheeling design lets the locked outside lever spin freely, so there's no leverage to damage anything. That, plus the lifetime guarantee against lever sag, is why this lock ends up on so many school and hospital doors. You install it once and it keeps working.

Order the Accentra AU5408LN from American Locksets

We stock the full Accentra and Yale commercial line from authorized distribution, so every lockset ships with a real manufacturer warranty. You'll find more Grade 1 cylindrical locksets in the commercial locks category.
