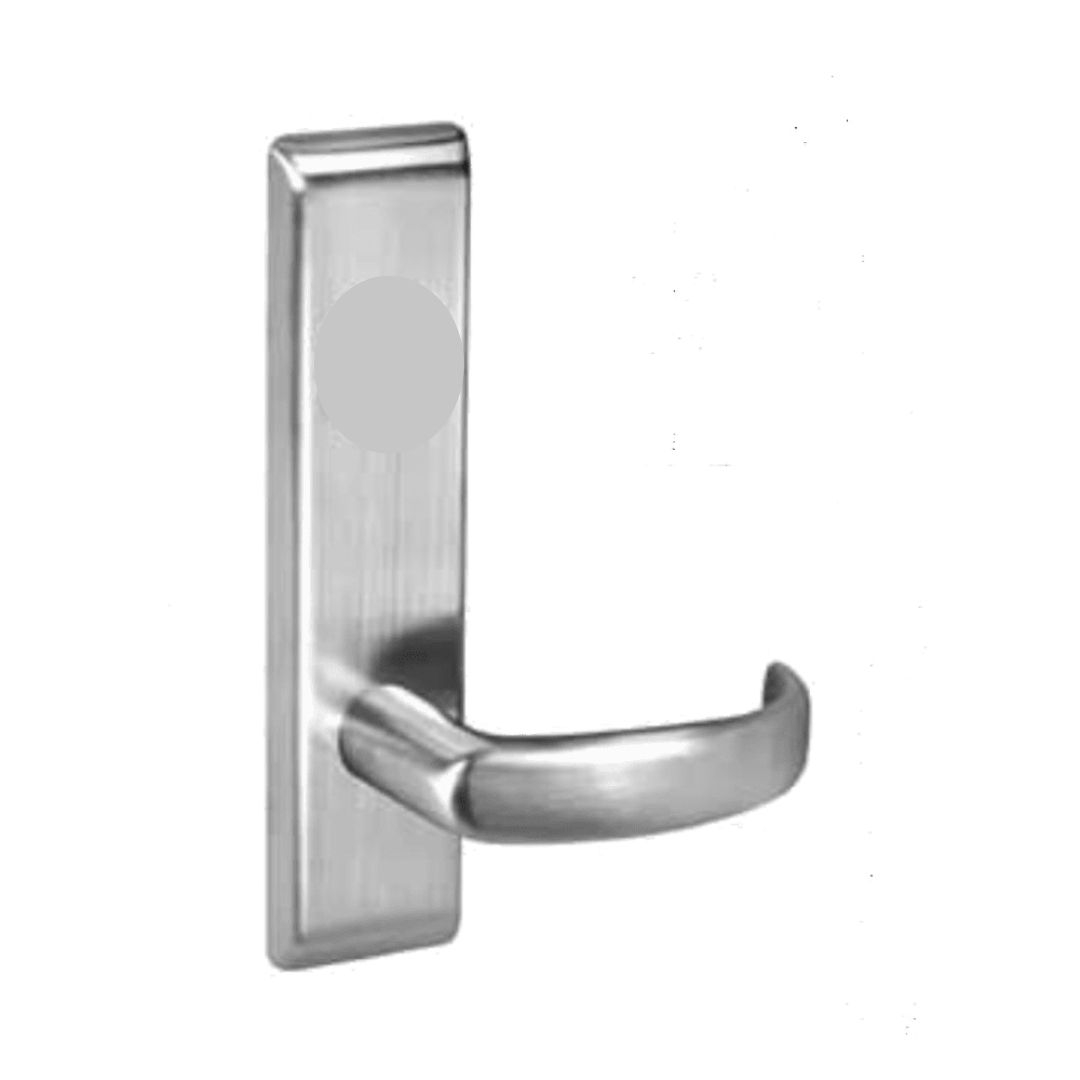

Accentra (Yale) PBCN855FL Mortise Dummy Lever Trim One Side, Pacific Beach Lever

Accentra (Yale) PBCN855FL Mortise Dummy Lever Trim One Side, Pacific Beach Lever

Model: Accentra 855FL / Yale 855FL

Former Brand: Yale (now Accentra, ASSA ABLOY)

Series: 8800 Series Mortise Platform

Function: Dummy lever trim one side - push or pull only, single face, lever rigid and non-operational

Trim Formats: Sectional rose (R suffix) and escutcheon (CN suffix)

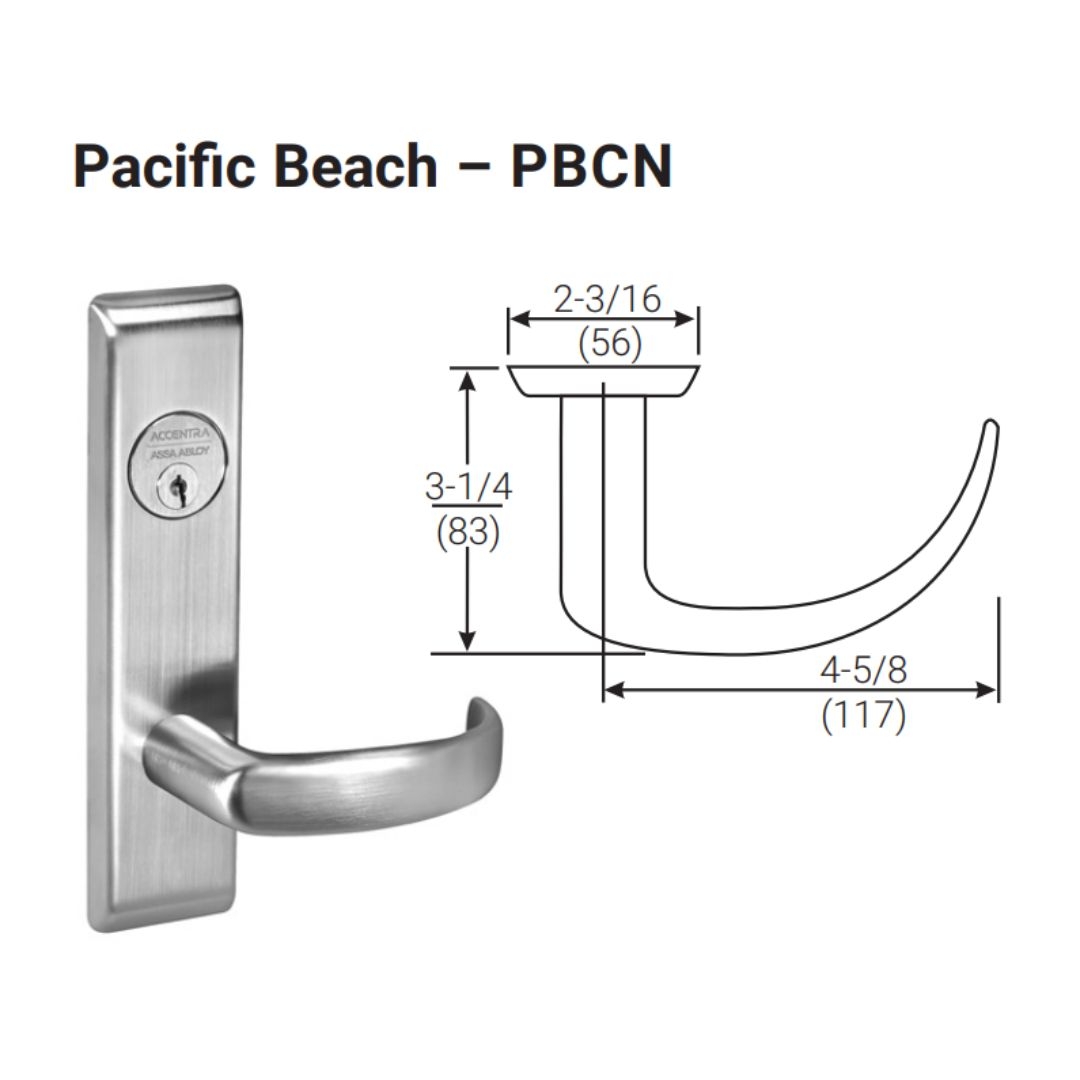

Lever Options: Pacific Beach (PBR/PBCN)

Door Thickness: 1-3/4" standard; through 3-1/4" with standard trims

Handing: Field reversible; specify hand to reduce installation costs (RH furnished if not specified)

ANSI/BHMA: A156.13, Series 1000, Operational Grade 1

Security Grade 1: 8800FL with CN escutcheon trim meets Security Grade 1

ADA: Compliant - all lever designs meet ANSI 117.1 and UFAS requirements

Knurled Option: Available - suffix "Knurled" on order

Lead Shield Option: Available - suffix "lead-lined" on order

UL/cUL: Listed for fire doors up to 3 hours; 20-minute wood doors; single swing to 4'x8', pairs to 8'x8'

Federal: Meets FF-H-106C

Warranty: 10-year mechanical

Finishes: 605, 606, 612, 625, 626, BSP, others by lever selection

Dummy trim one side: Push or pull only. Knob/lever one side. Knob/lever non-operational and rigid at all times. Available in all sectional and escutcheon trim.

Handing: Yale mortise locks are field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.

Door Thickness: 1-3/4" (44mm) standard.

Warranty: Mechanical mortise locks (10) year warranty and Electrified mortise (2) year warranty.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal: Meets FF-H-106C.

UL /ULC: Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction
