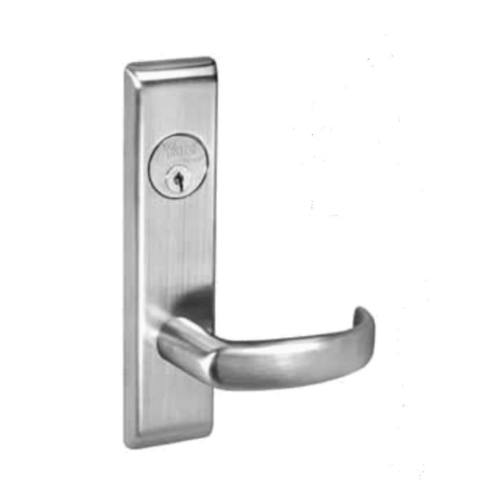

Accentra (Yale) PBCN8818-2FL Mortise Classroom Security Intruder Lever Lock, Pacific Beach Lever

Accentra (Yale) PBCN8818-2FL Mortise Classroom Security Intruder Lever Lock, Pacific Beach Lever

Classroom Security Intruder

Latchbolt retracted by lever unless outside lever is locked by key  Deadbolt operated by key either sideWhen deadbolt is projected, outside lever is automatically lockedKey retraction of latchbolt by either side unlocks outside lever Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, with outside lever remaining lockedDeadlocking latchbolt.

Handing: Yale mortise locks are field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.

Former Brand: Yale (now Accentra, ASSA ABLOY)

Series: 8800 Series Mortise Lock

Deadbolt: 1" stainless steel throw

Latchbolt: 3/4" stainless steel, two-piece antifriction camming action, deadlocking

Cylinder: Not included- 2153 or 2553, 1-1/8" mortise cylinder with 2160 cam, order separately

Trim Formats: Sectional rose (R suffix), escutcheon (CN suffix)

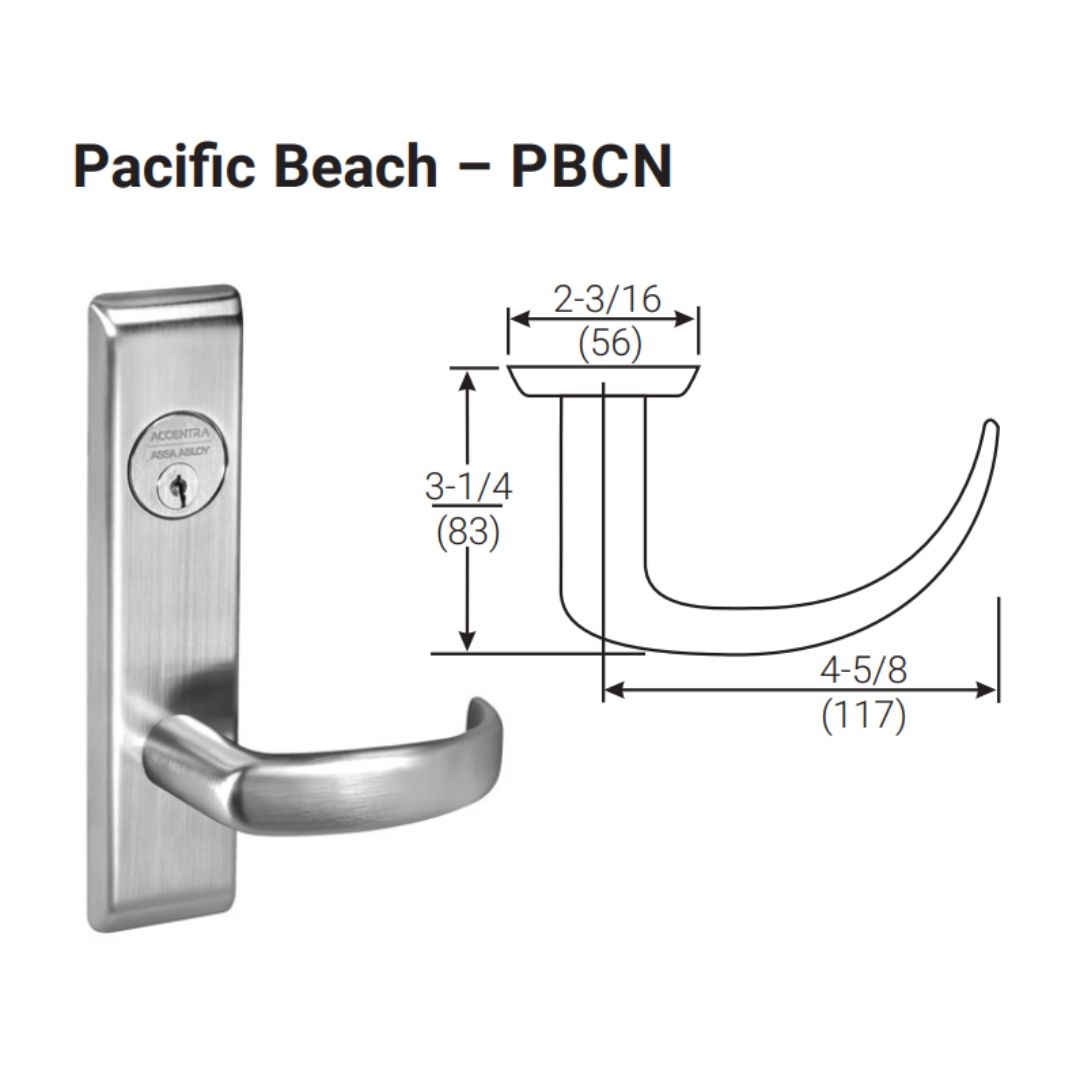

Lever Options: Pacific Beach (PBR/PBCN)

Door Thickness: 1-3/4" standard; through 3-1/4" with standard trims

ANSI/BHMA: A156.13 Series 1000, Operational Grade 1; Security Grade 1 with CN escutcheon

ADA: Compliant- all lever designs meet ANSI 117.1 and UFAS

UL/cUL: 3-hour fire doors; 20-minute wood doors

Cycle Test: 12.3 million cycles, UL Verification ID V572228

Federal: FF-H-106C

ISO: 9001

Warranty: 10-year mechanical

Model: 8818-2FL ARR, AUR, CRR, JNR, MOR, PBR, PNR, VIR, ZAUR, ZCRR, ZMOR, ZPBR, ARCN, AUCN, CRCN, JNCN, MOCN, PBCN, PNCN, VICN, ZAUCN, ZCRCN, ZMOCN, ZPBCN.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal: Meets FF-H-106C.

UL /ULC: Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction
