Alarm Lock Trilogy ETPDL S1G 26D V99 Exit Trim Prox Lock W/Audit Trail - Satin Chrome - Von Duprin 99 Series

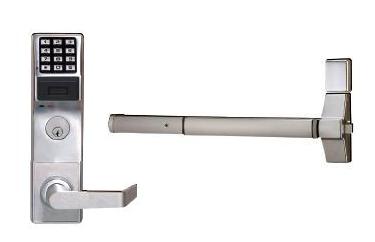

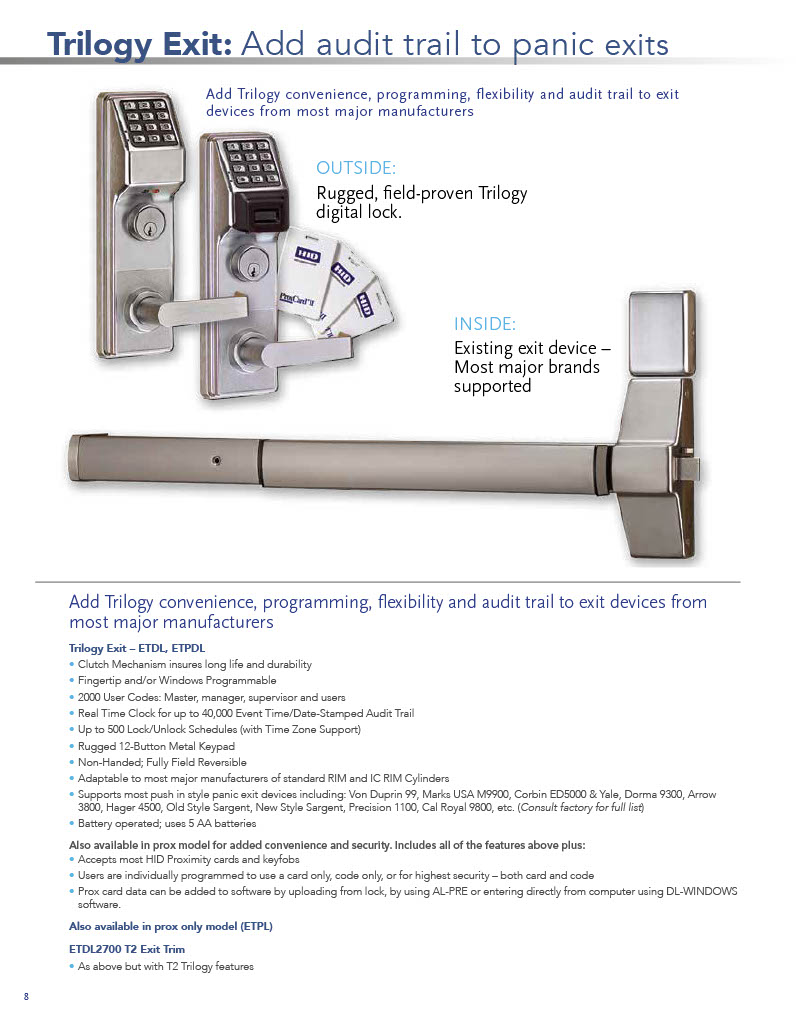

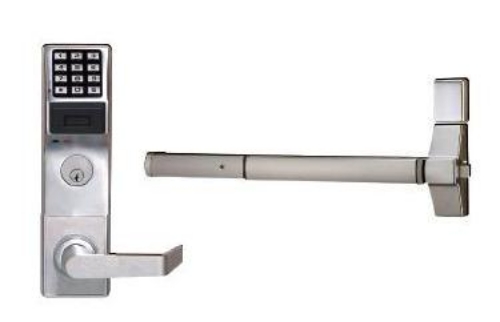

The Alarm Lock Trilogy ETPDL-S1G-26D-V99 is a standalone electronic exit trim that combines keypad code entry, proximity card reading, and a 40,000-event time-stamped audit trail in a single unit designed to mount directly to the Von Duprin 99 series panic exit device. It adds controlled access and full activity logging to a life-safety egress opening without replacing the panic hardware or requiring a networked access control system. The straight lever (S1G), satin chrome finish (26D), and field-reversible non-handed design suit a wide range of commercial door configurations. The panic exit device itself is sold separately.

How does the keypad and proximity card combination work on this exit trim?

The ETPDL model carries both a 12-button all-metal weather-resistant keypad and a built-in proximity card reader, giving administrators three credential options for each user: code only, proximity card only, or both card and code required simultaneously. The dual-credential option is the highest-security configuration, requiring an occupant to present a valid prox card and enter a valid PIN before the clutch mechanism allows the lever to retract the latch. For high-risk doors in schools, healthcare facilities, or secure office environments, that two-factor requirement significantly raises the bar against unauthorized entry. Prox card data can be entered directly into the lock's memory via keypad, uploaded from an AL-PRE enrollment reader, or loaded from a PC running DL-Windows software. The system supports 2,000 users structured in a hierarchy: one master administrator, multiple managers, supervisors, and standard users, each with individually assigned credential types and access schedules. The full range of keypad and proximity locks available on this site includes additional Trilogy configurations for different door and hardware types.

What does the 40,000-event audit trail record and how is it accessed?

The real-time clock inside the ETPDL logs up to 40,000 events with individual time and date stamps. Recorded activities include valid user entries, failed code attempts, keypad lockout triggers, lock and unlock events, program mode changes, and remote release activations. That depth of logging covers roughly months of activity on a busy door before the buffer cycles, and every event is associated with the specific user code or credential that triggered it. The audit trail can be retrieved three ways: directly from the lock to a PC via the AL-PCI interface cable running DL-Windows software, wirelessly transferred using the AL-DTMII Data Transfer Module which holds data for up to 96 locks simultaneously, or printed on-site using the AL-IR1 hand-held infrared printer. All three accessories are sold separately. For facilities that need on-demand printable access records without visiting a server room or pulling software reports, the on-site printer option is particularly practical for compliance documentation and security incident review.

What Von Duprin hardware does this exit trim mount to?

The V99 suffix designates compatibility with the Von Duprin 98 and 99 series rim exit devices, which are among the most widely installed panic bars in commercial construction. The trim mounts to the exterior of the door and connects to the panic device's latch mechanism, so the inside push bar always provides instant egress regardless of the lock's electronic state. Entering a valid code or presenting a valid prox card allows the outside lever to retract the latch for entry. The clutch mechanism on the lever prevents the lever from retracting the latch directly in the locked state, protecting the mechanism from stress damage during unauthorized handle attempts. Door thickness is 1-3/4" standard. A generic rim cylinder with Schlage C keyway is included for key override. The Von Duprin panic hardware that this trim pairs with is available separately, as is the broader exit hardware range including coordinating door closers and strikes for complete opening packages.

The ETPDL-S1G-26D-V99 is the right specification when a Von Duprin 99 series opening needs controlled entry, dual-credential capability, and a verifiable record of who accessed the door and when.
