Altronix AL175UL Power Supply/Charger, Input 115VAC 60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1.75A, Grey Enclosure

Altronix AL175UL Power Supply/Charger, Input 115VAC 60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1.75A, Grey Enclosure

Product Details

Altronix AL175UL Power Supply/Charger, Input 115VAC 60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1.75A, Grey Enclosure, Lifetime Warranty

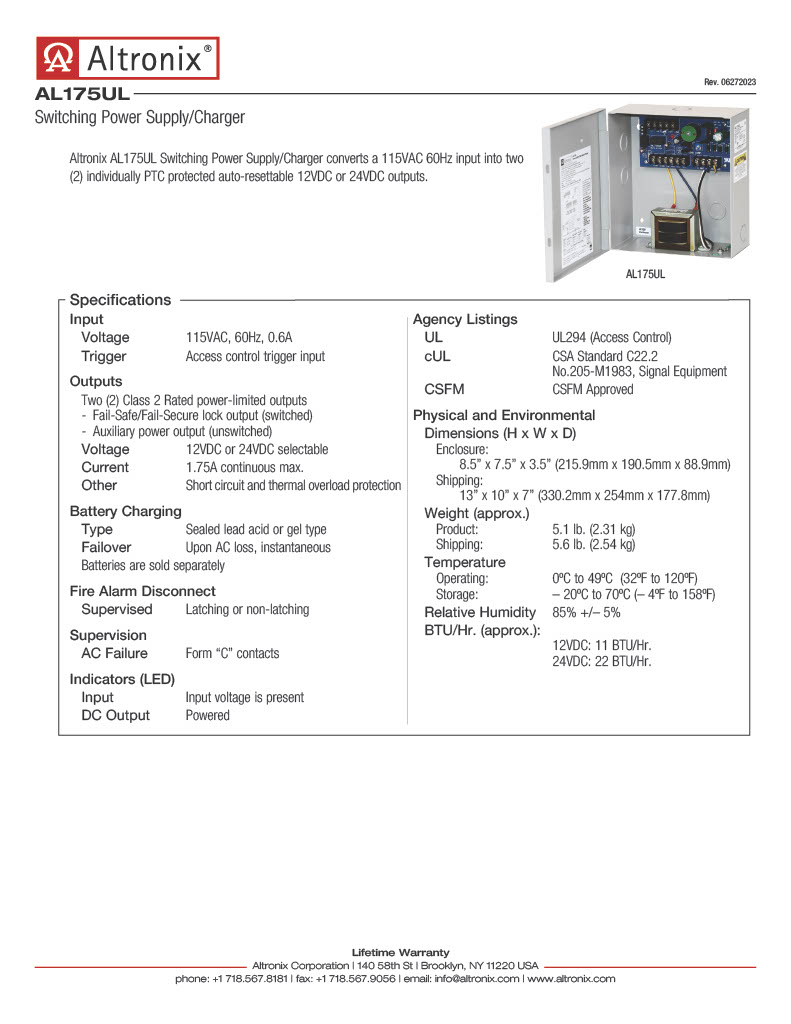

Specifications:

Input: 115VAC, 60Hz, 0.6A. Access control trigger input.

Output: 12VDC or 24VDC selectable outputs. 1.75A supply current. 2 Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.):12VDC: 11 BTU/Hr. - 24VDC: 22 BTU/Hr. System AC input VA requirement: 69VA.

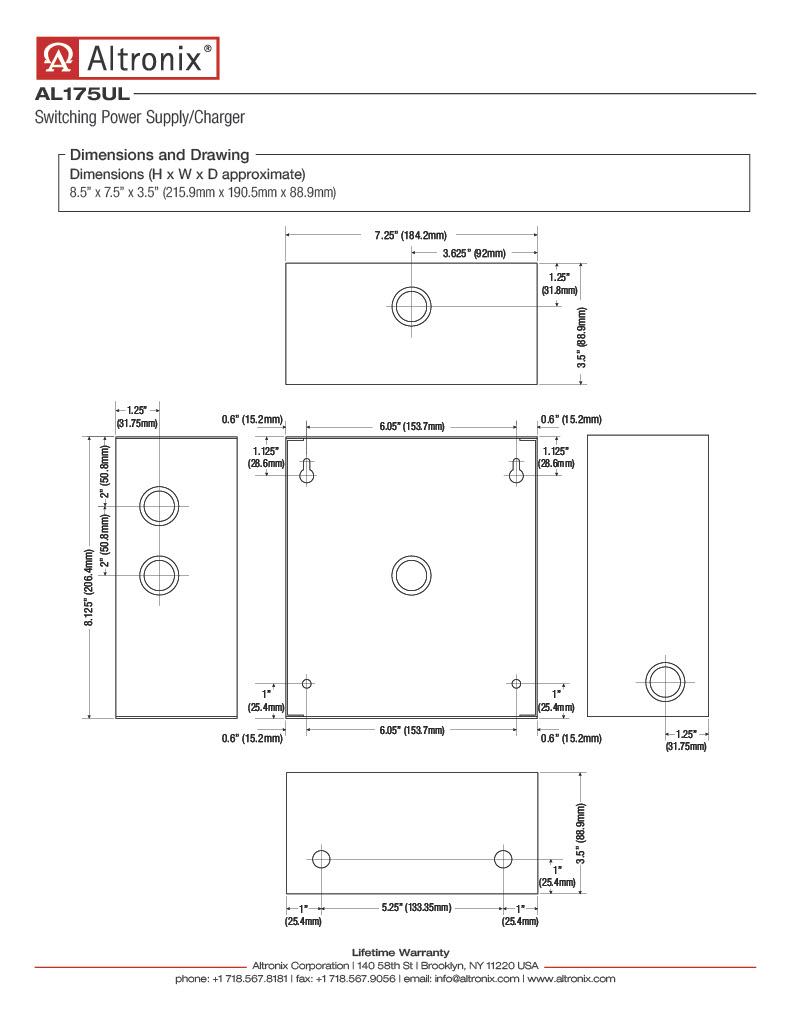

Enclosure: Wall mount enclosure for indoor use. Dimensions: 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:5.1 Lbs. (2.31 kg). Shipping Weight: 5.6 Lbs. (2.54 kg).

ALTRONIX AL175UL, AL175UL, AL175UL ALTRONIX,

Altronix AL175UL Power Supply/Charger, Input 115VAC 60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1.75A, Grey Enclosure

Name: Altronix AL175UL Power Supply/Charger, Input 115VAC 60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1.75A, Grey Enclosure
SKU: AL175UL
Price: 204.55 USD
Availability: InStock

SKU: AL175UL

In Stock

Chat

$204.55

About this item

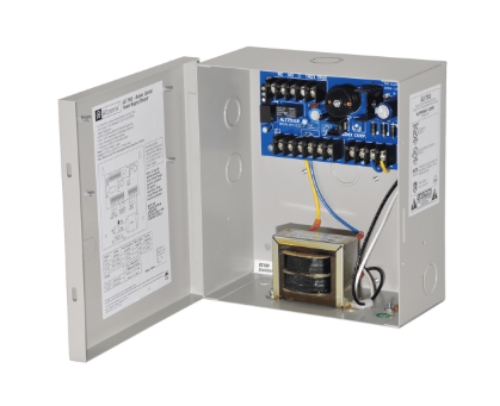

Altronix AL175UL Switching Power Supply/Charger converts a 115VAC 60Hz input into 2 individually PTC protected 12VDC or 24VDC outputs.

Resources

https://www.altronix.com/products/AL175UL
