Altronix AL400UL Power Supply/Charger - Input 115VAC 60Hz at 3.5A, Single Output, 12VDC at 4A or 24VDC at 3A, Grey Enclosure Includes Plug-in Transformer

Altronix AL400UL Power Supply/Charger - Input 115VAC 60Hz at 3.5A, Single Output, 12VDC at 4A or 24VDC at 3A, Grey Enclosure Includes Plug-in Transformer

Product Details

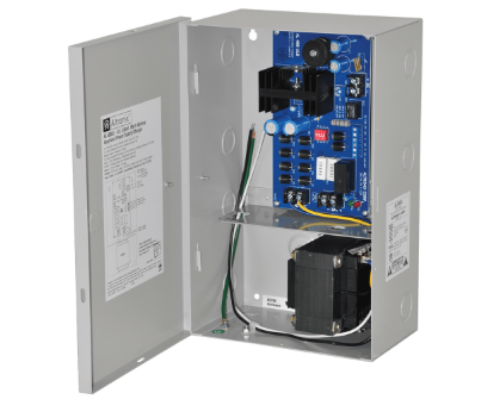

Altronix AL400UL Power Supply/Charger Grey Enclosure Includes Plug-in Transformer, Lifetime Warranty

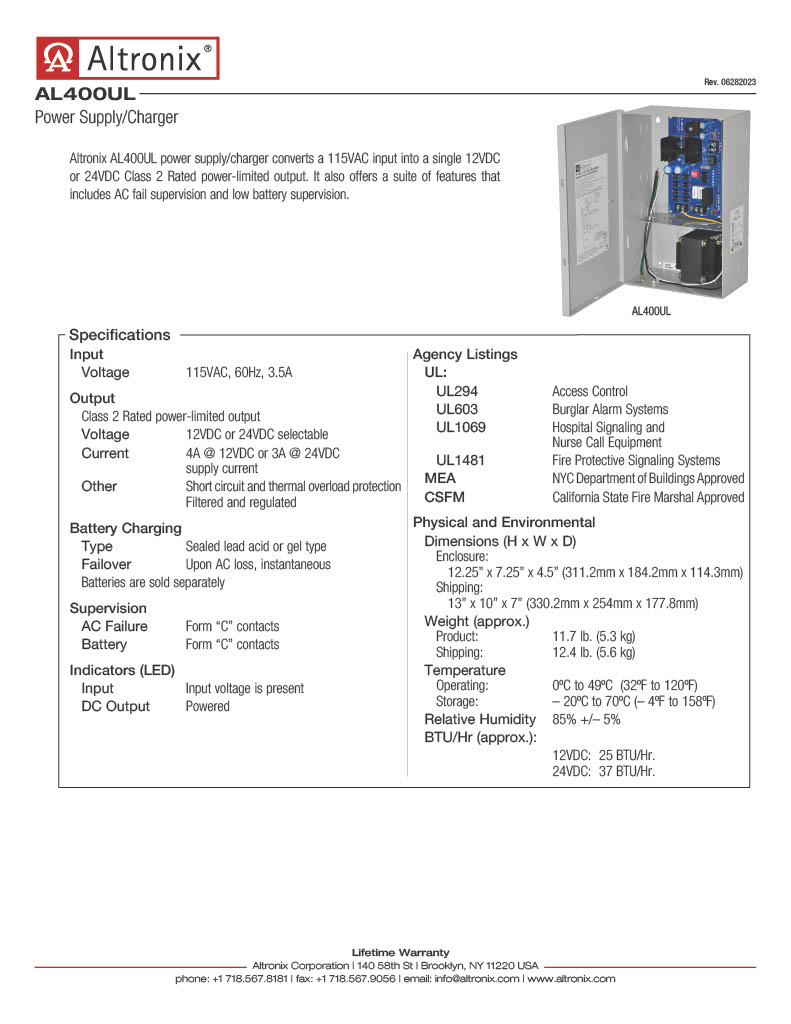

Specifications:

Input:115VAC, 60Hz, 3.5A. Output:12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. Class 2 Rated power limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup:Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision:

AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators:**AC input and DC output LED indicators.

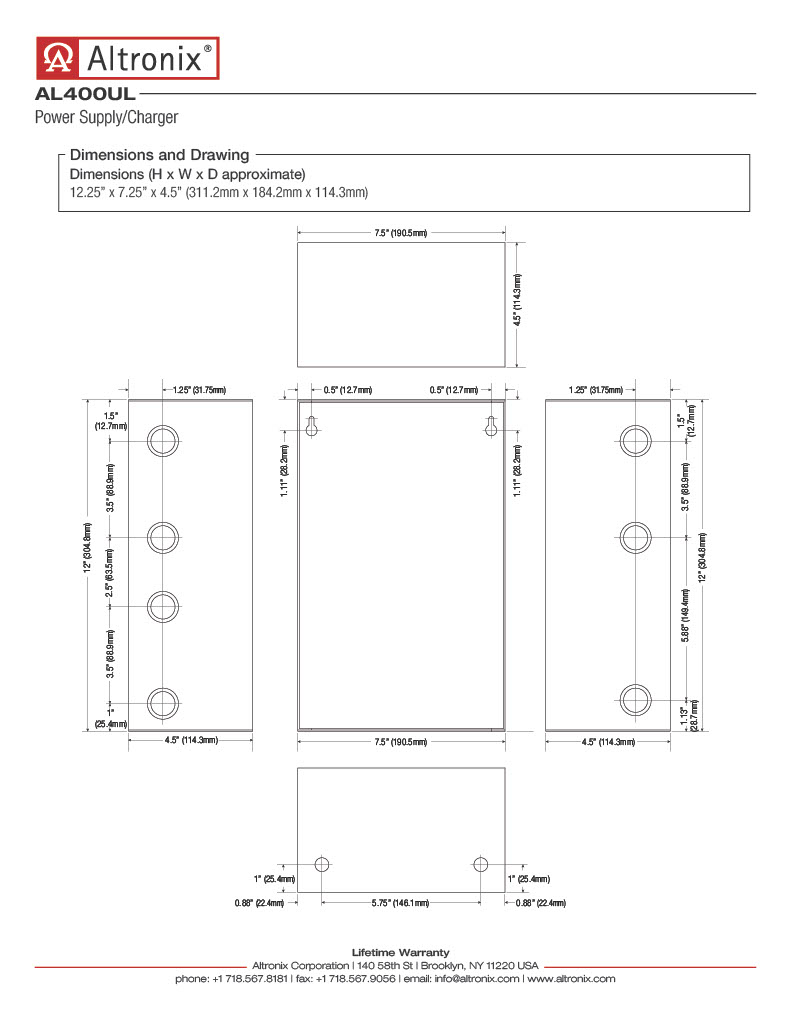

Temperature: Operating 0 to 49 C (32 to 120 F ) Storage - 20 to 70 C ( - 4 to 158 F) Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VAC: 37 BTU/Hr. System AC input VA requirement: 166.75VA. Wall mount enclosure for indoor use. Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D). 1/2" and 3/4" combination knockouts.Lifetime Warranty

AL400UL ALTRONIX, ALTRONIX AL400UL,Altronix Power Supply/Charger,

Altronix AL400UL Power Supply/Charger - Input 115VAC 60Hz at 3.5A, Single Output, 12VDC at 4A or 24VDC at 3A, Grey Enclosure Includes Plug-in Transformer

Name: Altronix AL400UL Power Supply/Charger - Input 115VAC 60Hz at 3.5A, Single Output, 12VDC at 4A or 24VDC at 3A, Grey Enclosure Includes Plug-in Transformer
SKU: AL400UL
Price: 301.79 USD
Availability: InStock

SKU: AL400UL

In Stock

Chat

$301.79

About this item

AL400UL is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output.

Resources

https://www.altronix.com/products/AL400UL

Altronix AL400UL Power Supply/Charger Grey Enclosure Includes Plug-in Transformer, Lifetime Warranty

Specifications:

Battery Backup:Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision:

AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators:**AC input and DC output LED indicators.
