Altronix ALTV1224DC CCTV Camera and Accessory Power Supply - Input 115VAC 50/60Hz at 1.45A

Altronix ALTV1224DC CCTV Camera and Accessory Power Supply - Input 115VAC 50/60Hz at 1.45A

Product Details

Altronix ALTV1224DC CCTV Camera and Accessory Power Supply, Input 115VAC 50/60Hz at 1.45A, Grey Enclosure, Lifetime Warranty

Input:115VAC, 50/60 Hz, 1.45A. Output: 8 fuse protected outputs. 12VDC or 24VDC field adjustable. 4A total continuous supply current (0.5A per device, 3.5A max.). Outputs are rated @ 3.5A. Filtered and electronically regulated outputs.

Temperature:Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%.

BTU/Hr (approx.): 12VDC:25 BTU/Hr. - 24VDC: 49 BTU/Hr . System AC input VA requirement:166.75VA.

Features: AC input and DC output LED indicators. Power ON/OFF switch. Ease of installation saves time and eliminates costly labor.

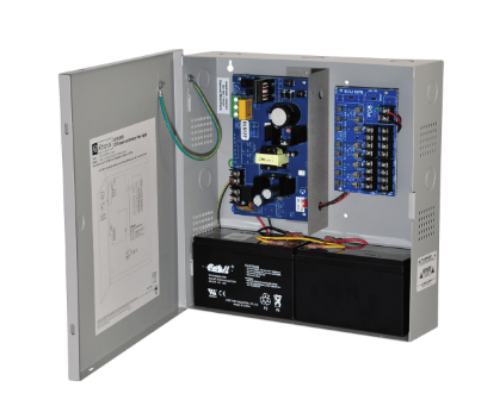

Enclosure:Wall mount enclosure for indoor use.

Dimensions:13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Weights (approximate): Product Weight: 7.8 Lbs. (3.54 kg). - Shipping Weight: 8.7 Lbs. (3.95 kg).

Altronix ALTV1224DC. ALTV1224DC. Altronix ALTV1224DC.

Altronix ALTV1224DC CCTV Camera and Accessory Power Supply - Input 115VAC 50/60Hz at 1.45A

Name: Altronix ALTV1224DC CCTV Camera and Accessory Power Supply - Input 115VAC 50/60Hz at 1.45A
SKU: ALTV1224DC
Price: 258.23 USD
Availability: InStock

SKU: ALTV1224DC

In Stock

Chat

$258.23

About this item

ALTV1224DC is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via 8 fuse protected outputs with a total of 4A total supply current.

Resources

https://www.altronix.com/products/ALTV1224DC

Altronix ALTV1224DC CCTV Camera and Accessory Power Supply, Input 115VAC 50/60Hz at 1.45A, Grey Enclosure, Lifetime Warranty

Temperature:Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%.

BTU/Hr (approx.): 12VDC:25 BTU/Hr. - 24VDC: 49 BTU/Hr . System AC input VA requirement:166.75VA.

Features: AC input and DC output LED indicators. Power ON/OFF switch. Ease of installation saves time and eliminates costly labor.

Enclosure:Wall mount enclosure for indoor use.

Dimensions:13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Weights (approximate): Product Weight: 7.8 Lbs. (3.54 kg). - Shipping Weight: 8.7 Lbs. (3.95 kg).

Altronix ALTV1224DC. ALTV1224DC. Altronix ALTV1224DC.

Altronix ALTV1224DC CCTV Camera and Accessory Power Supply - Input 115VAC 50/60Hz at 1.45A

Product code: ALTV1224DC

In Stock

$258.23

Altronix ALTV1224DC CCTV Camera and Accessory Power Supply - Input 115VAC 50/60Hz at 1.45A

Product code: ALTV1224DC

In Stock

$258.23

Altronix ALTV1224DC CCTV Camera and Accessory Power Supply - Input 115VAC 50/60Hz at 1.45A

SKU: ALTV1224DC
