Electronic Hardware
Power Supply
Altronix Power Supply

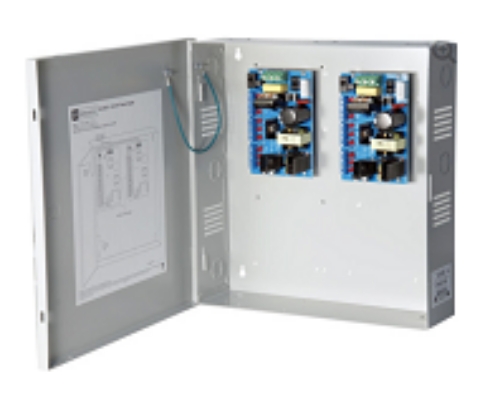

Altronix SAV182DCCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC @ 11A, 115VAC, Grey Enclosure

Altronix SAV182DCCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC @ 11A, 115VAC, Grey Enclosure

Product Details

**Altronix SAV182DCCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC @ 11A, 115VAC, Grey Enclosure, Lifetime Warranty

Specifications:**

Input: 115VAC 60Hz, 3A/230VAC 50Hz, 1.5A.

Output: 12VDC @ 11A total output current (0.61A per device, 2.5A max.). 18 Class 2 Rated PTC protected power limited auto-resettable outputs. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Features: Power LEDs. Field installable 3-wire line cord with integral strain relief. Unit maintains camera synchronization. Ease of installation saves time & eliminates costly labor.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 68 BTU/Hr. System AC input VA requirement: 115VAC: 345VA. 230VAC: 330VA.

Enclosure: Wall mount enclosure for indoor use.

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:7.8 Lbs. (3.538 kg). - Shipping Weight: 8.7 Lbs. (3.946 kg).

Sav182D altronix, altronix sav182d, sav182d,

Altronix SAV182DCCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC @ 11A, 115VAC, Grey Enclosure

Name: Altronix SAV182DCCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC @ 11A, 115VAC, Grey Enclosure
SKU: SAV182D
Price: 296.61 USD
Availability: InStock

SKU: SAV182D

In Stock

Chat

$296.61

About this item

Sav182D Power Supply provides 12VDC distributed via 18 Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.
