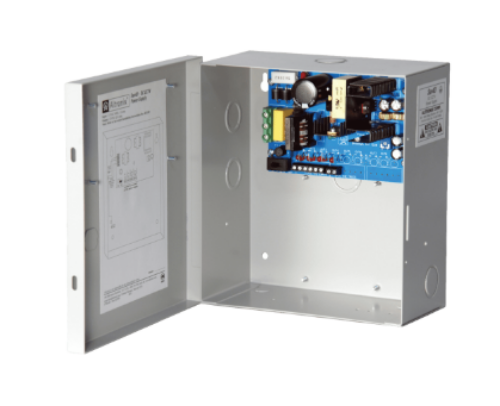

Altronix SAV4D CCTV Power Supply, 4 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC, Grey Enclosure

Altronix SAV4D CCTV Power Supply, 4 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC, Grey Enclosure

Product Details

Altronix SAV4D CCTV Power Supply, 4 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC, Grey Enclosure, Lifetime Warranty

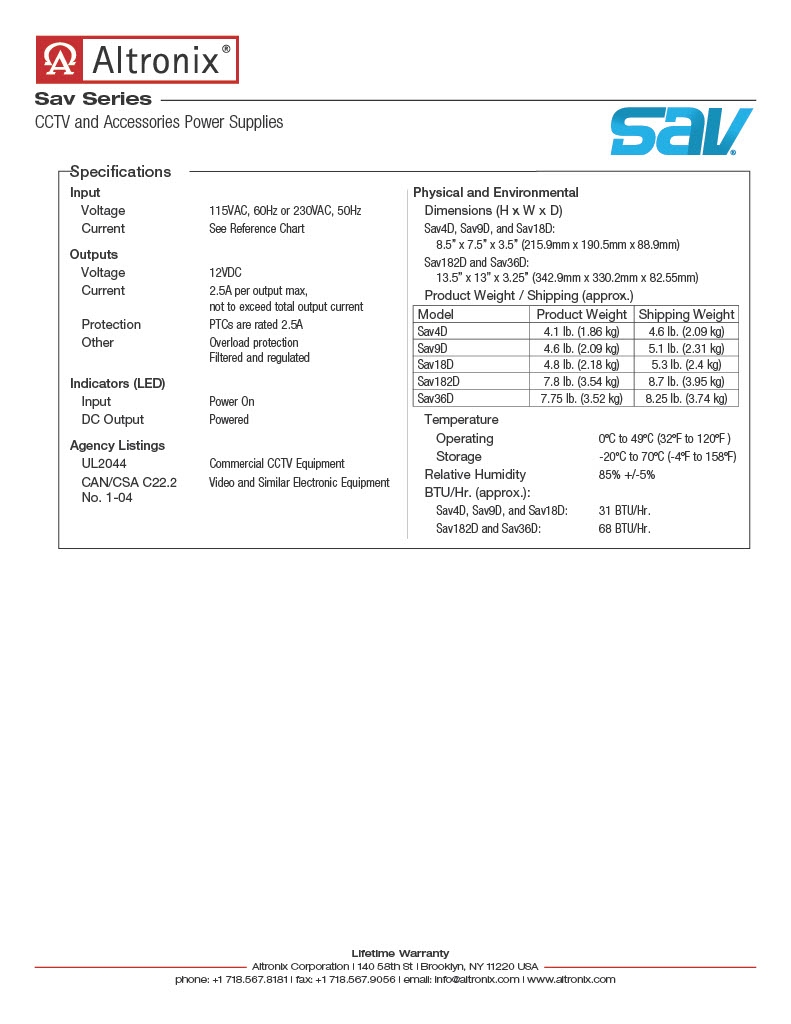

Specifications:

Input:115VAC 60Hz, 1.5A / 230VAC 50Hz, 0.75A.

Output:12VDC @ 5A total output current (1.2A per device, 2.5A max.). 4 Class 2 Rated PTC protected power limited auto-resettable outputs. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Features: 4 power LEDs. Field installable 3-wire line cord with integral strain relief. Unit maintains camera synchronization. Ease of installation saves time & eliminates costly labor.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 31 BTU/Hr. System AC input VA requirement: 172.5VA. Lifetime Warranty

Enclosure: Wall mount enclosure for indoor use. Dimensions:7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:4.1 Lbs. (1.859 kg). Shipping Weight:4.6 Lbs. (2.086 kg).

sav4d altronix, altronix sav4d, sav4d,

Altronix SAV4D CCTV Power Supply, 4 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC, Grey Enclosure

Name: Altronix SAV4D CCTV Power Supply, 4 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC, Grey Enclosure
SKU: SAV4D
Price: 150.52 USD
Availability: InStock

SKU: SAV4D

In Stock

Chat

$150.52

About this item

Sav4D Power Supply provides 12VDC distributed via four (4) Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.
