Altronix SMP3PM Switching Supervised Power Supply Board, 12VDC Application use TP1640, T2428100, 24VDC Application use T2428100 , 12/24VDC at 2.5A Output

Altronix SMP3PM Switching Supervised Power Supply Board, 12VDC Application use TP1640, T2428100, 24VDC Application use T2428100 , 12/24VDC at 2.5A Output

Product Details

Altronix SMP3PM Switching Supervised Power Supply Board, 12VDC Application use**TP1640, T2428100, 24VDC Application use T2428100 , 12/24VDC at 2.5A Output, Lifetime Warranty

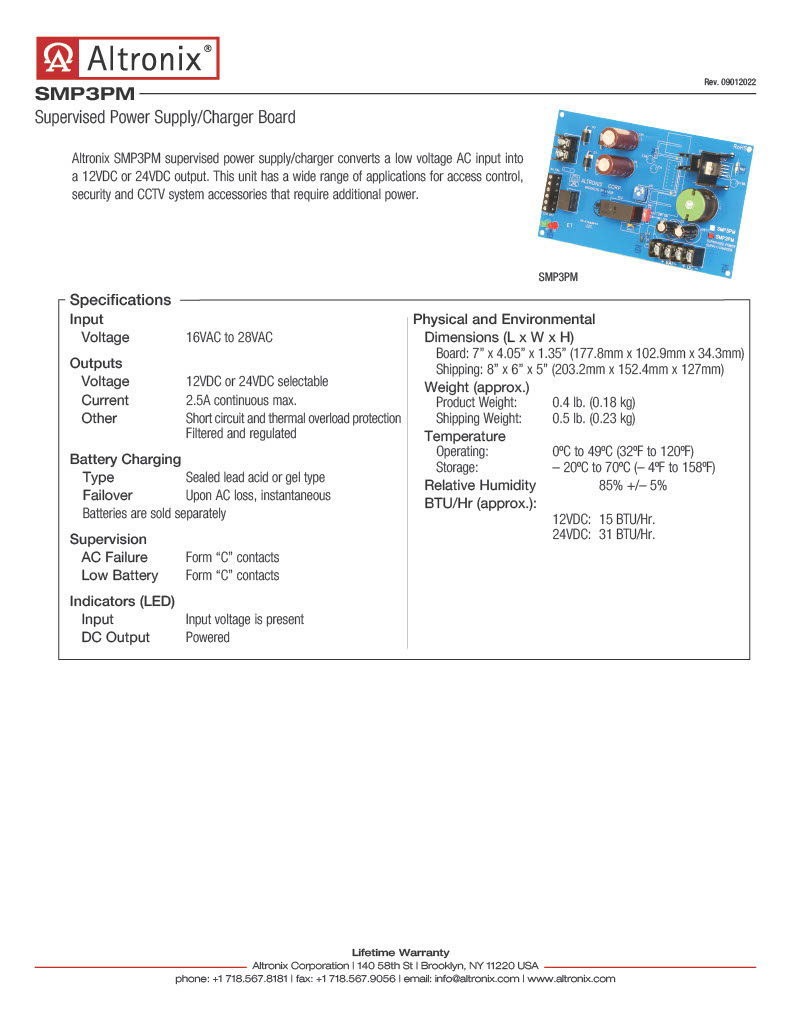

Specifications:**

Input: 12VDC applications use TP1640, T2428100. 24VDC applications use T2428100.

Output: 12VDC or 24VDC selectable output. 2.5A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Battery short circuit protection (circuit breaker).

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Electrical: * *Temperature: Operating Temperature: 0 C to 49 C (32 F to 120 F). Storage Temperature: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):12VDC: 15 BTU/Hr. - 24VDC: 31 BTU/Hr. System AC input VA requirement:12VDC: 55.2VA. - 24VDC: 115VA.

Features: Includes battery leads.

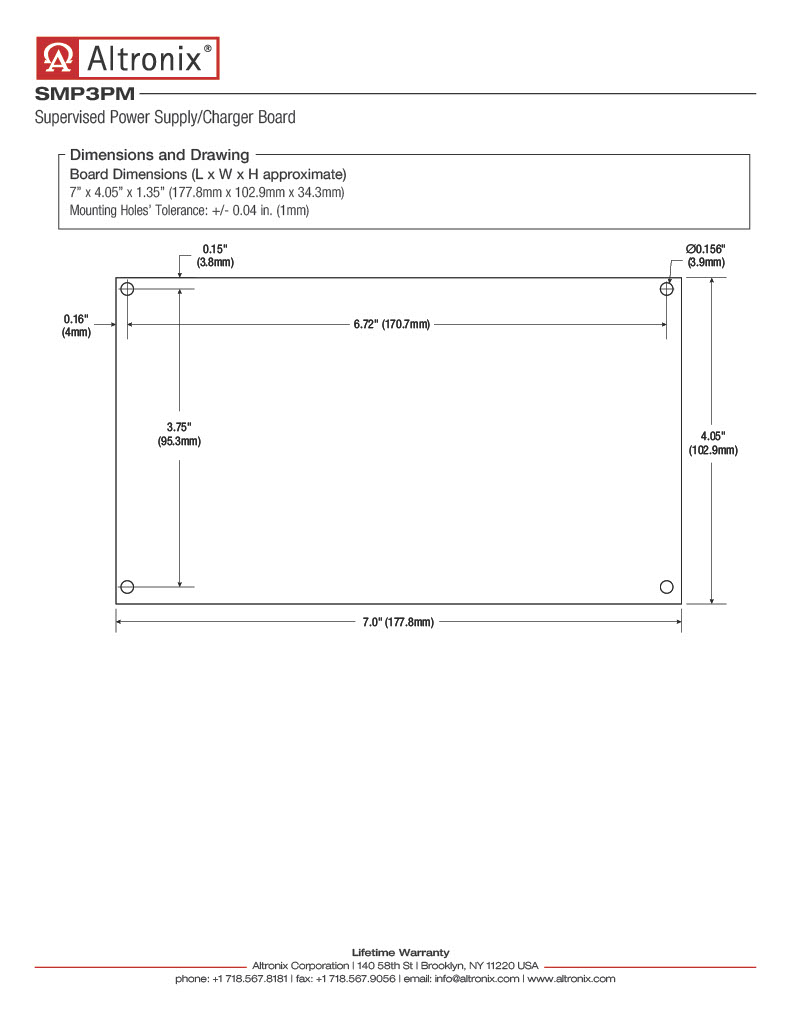

Dimensions (approximate): 7"W x 4.05"L x 1.35"H (177.8 mm W x 102.87 mm L x 34.29 mm H).

Product Weight:0.4 Lbs. (0.181 kg). - Shipping Weight: 0.5 Lbs. (0.226 kg).

SMP3PM, ALTRONIX SMP3PM, SMMP3PM ALTRONIX,

Altronix SMP3PM Switching Supervised Power Supply Board, 12VDC Application use TP1640, T2428100, 24VDC Application use T2428100 , 12/24VDC at 2.5A Output

Name: Altronix SMP3PM Switching Supervised Power Supply Board, 12VDC Application use TP1640, T2428100, 24VDC Application use T2428100 , 12/24VDC at 2.5A Output
SKU: SMP3PM
Price: 76.81 USD
Availability: InStock

SKU: SMP3PM

In Stock

Chat

$76.81

About this item

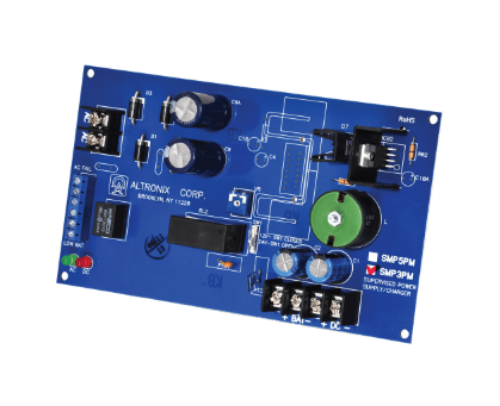

SMP3PM supervised power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Resources
