Altronix Power Supply
Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure

Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure

Product Details

Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure, Lifetime Warranty

Specifications:

Input: Input 115VAC, 50/60Hz, 0.65A or 230VAC, 50/60Hz, 0.35A.

Output: 12VDC or 24VDC selectable output. 2.5A supply current. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Zero voltage drop when switching over to battery backup.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 15 BTU/Hr. - 24VDC: 31 BTU/Hr. System AC input VA requirement: 115VAC: 74.75VA. - 230VAC: 80.5VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to 2 12VDC/7AH Batteries.

*Batteries sold separately

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts. Product Weight:6.9 Lbs. (3.72 kg). - Shipping Weight: 7.9 Lbs. (4.18 kg).

ALTRONIX SMP3PMCTX, SMP3PMCTX, SMP3PMCTX ALTRONIX

Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure

Name: Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure
SKU: SMP3PMCTX
Price: 230.09 USD
Availability: InStock

SKU: SMP3PMCTX

In Stock

Chat

$230.09

About this item

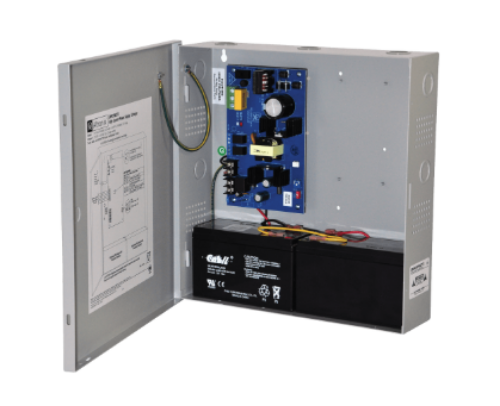

SMP3PMCTX supervised power supply/charger will convert a 115VAC/230VAC, 50/60Hz input, into a regulated 12VDC or 24VDC output @ 2.5A continuous supply current.

Resources

https://www.altronix.com/products/SMP3PMCTX

Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure, Lifetime Warranty

Specifications:

Input: Input 115VAC, 50/60Hz, 0.65A or 230VAC, 50/60Hz, 0.35A.

Output: 12VDC or 24VDC selectable output. 2.5A supply current. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Zero voltage drop when switching over to battery backup.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to 2 12VDC/7AH Batteries.

*Batteries sold separately

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts. Product Weight:6.9 Lbs. (3.72 kg). - Shipping Weight: 7.9 Lbs. (4.18 kg).

ALTRONIX SMP3PMCTX, SMP3PMCTX, SMP3PMCTX ALTRONIX

Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure

Product code: SMP3PMCTX

In Stock

$230.09

Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure

Product code: SMP3PMCTX

In Stock

$230.09

Altronix SMP3PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.65A or 230VAC 50/60Hz at 0.35A Input, 12/24VDC at 2.5A Output, Grey Enclosure

SKU: SMP3PMCTX

Securitron BPS-12/24-1 - Dual Voltage Boxed Power Supply - 12/24VDC - 1Amp

Product code: W561BD

In Stock

$514.00

$318.68

Securitron BPS-12-1 - Power Supply - 12VDC -1 Amp

Product code: W561BD

In Stock

$444.72

$275.73

Securitron BPS-12-3 - Power Supply - 12VDC - 3 Amp

Product code: W561BD

In Stock

$787.00

$487.94

Securitron BPS-12-6 - Power Supply - 12VDC - 6 Amp

Product code: W561BD

In Stock

$1,416.00

$877.92

Securitron BPS-12-45 - Power Supply - 12VDC - 4.5 Amp

Product code: W561BD

In Stock

$1,217.00

$754.54

Securitron BPS-12-9 - Power Supply - 12VDC - 9 Amp

Product code: W561BD

In Stock

$1,416.00

$877.92

Securitron BPS-12-15 - Power Supply - 12VDC - 15 Amp

Product code: W561BD

In Stock

$2,007.00

$1,244.34

Securitron BPS-24-2 - Power Supply - 24VDC - 2 Amp

Product code: W561BD

In Stock

$787.00

$487.94

Securitron BPS-24-3 - Power Supply - 24VDC - 3 Amp

Product code: W561BD

In Stock

$1,301.46

$806.91

Securitron BPS-24-4 - Power Supply - 24VDC - 4 Amp

Product code: W561BD

In Stock

$1,543.44

$956.93

Related Brands

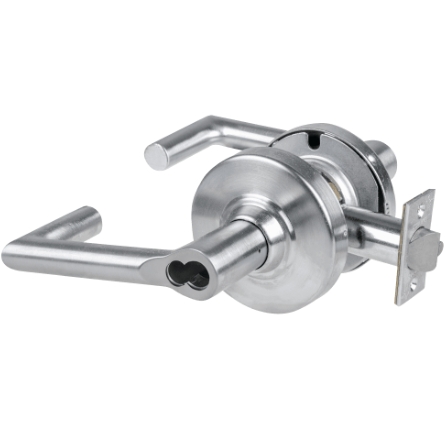

Schlage ALX50R TLR 626 Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Tubular Lever, FSIC Core, Satin Chrome Finish
