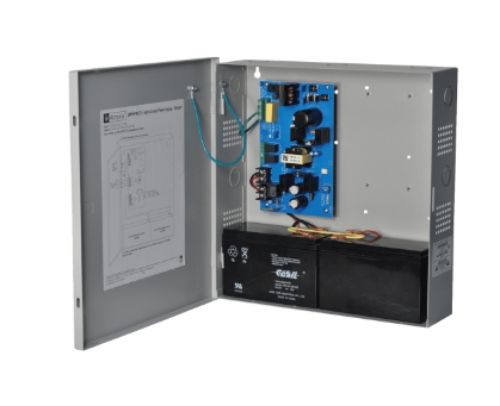

Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure

Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure

Product Details

Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure, Lifetime Warranty

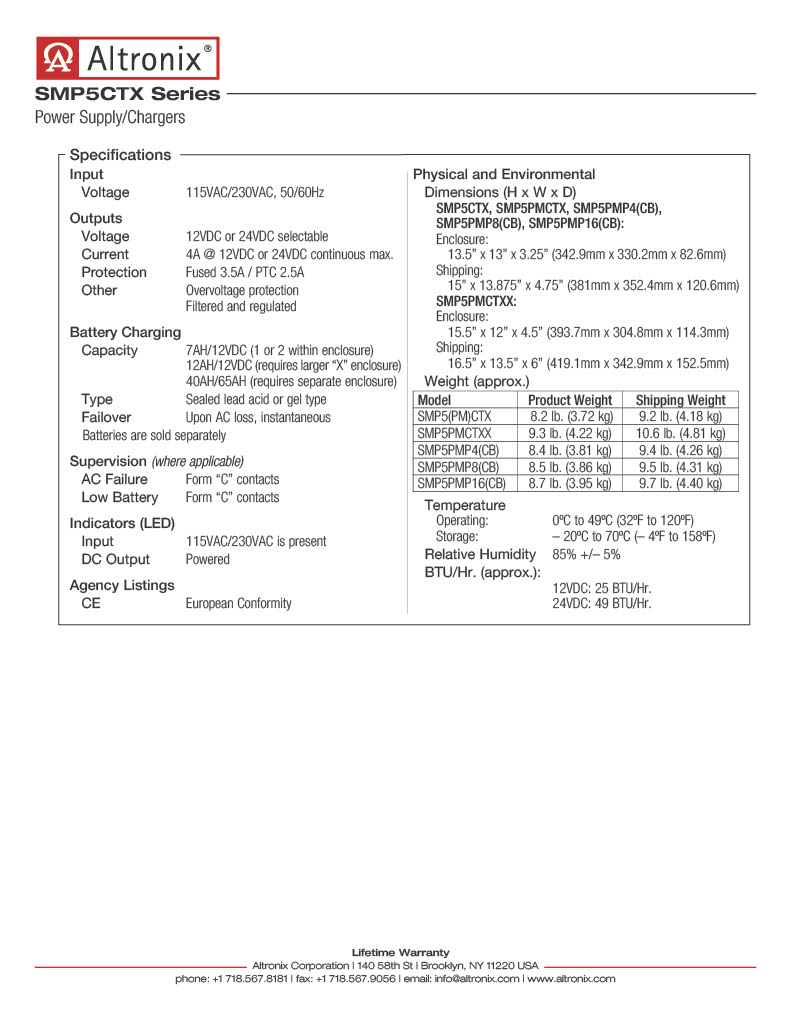

Specifications:

Input: 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A.

Output: 12VDC or 24VDC selectable output. 4A supply current. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Zero voltage drop when switching over to battery backup.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%.

BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VDC: 49 BTU/Hr.

System AC input VA requirement: 115VAC: 109.25VA. 230VAC: 115VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/7AH Batteries. Dimensions:13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts. *Batteries sold separately

Product Weight:7.4 Lbs. (3.356 kg). Shipping Weight: 8.3 Lbs. (3.764 kg).

SMP5PMCTX ALTRONIX, ALTRONIX, SMP5PMCTX

Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure

Name: Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure
SKU: SMP5PMCTX
Price: 245.44 USD
Availability: InStock

SKU: SMP5PMCTX

In Stock

Chat

$245.44

About this item

SMP5PMCTX supervised power supply/charger converts a 115VAC/230VAC, 50/60Hz input into a regulated 12VDC or 24VDC output @ 4A continuous supply current.

Resources

https://www.altronix.com/products/SMP5PMCTX

Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure, Lifetime Warranty

Specifications:

Input: 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A.

Output: 12VDC or 24VDC selectable output. 4A supply current. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Zero voltage drop when switching over to battery backup.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%.

BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VDC: 49 BTU/Hr.

System AC input VA requirement: 115VAC: 109.25VA. 230VAC: 115VA.

Product Weight:7.4 Lbs. (3.356 kg). Shipping Weight: 8.3 Lbs. (3.764 kg).

SMP5PMCTX ALTRONIX, ALTRONIX, SMP5PMCTX

Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure

Product code: SMP5PMCTX

In Stock

$245.44

Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure

Product code: SMP5PMCTX

In Stock

$245.44

Altronix SMP5PMCTX Supervised Power Supply/Charger, 115VAC 50/60Hz at 0.95A or 230VAC 50/60Hz at 0.5A Input, 12/24VDC at 4A Output, Grey Enclosure

SKU: SMP5PMCTX
