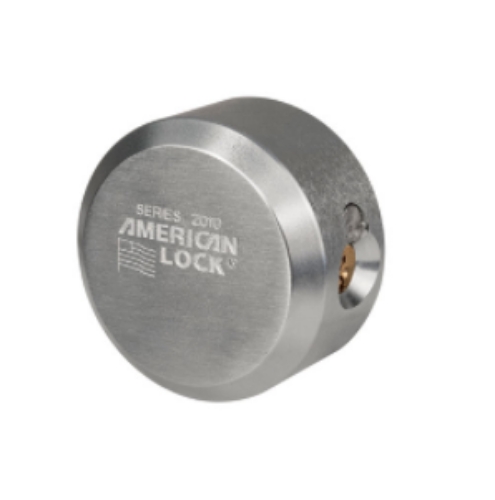

American Lock A2010-KD Hidden Shackle Padlock - 2-7/8in (73mm) Solid Steel Rekeyable 6-Pin Tumbler Flat Back Hidden Shackle Padlock - Keyed Different

The American Lock A2010 is a hidden shackle padlock built for maximum-security, severe-use applications. Where a normal padlock exposes its shackle (the U-shaped loop), a hidden shackle design encloses it almost entirely inside the lock body, so there's nothing for bolt cutters, saws, or pry bars to grab. The A2010 pairs that with a 2-7/8" (73mm) wide case-hardened solid steel body and a rekeyable 6-pin cylinder, making it one of the toughest padlocks for gates, trailers, and storage you can specify. This is the keyed different (KD) version, each lock has its own unique key.

Why a hidden shackle is the most secure padlock design

This is the whole point of the A2010, and it's worth understanding. On a conventional padlock, the shackle arcs above the body, which is exactly where an attacker attacks it: bolt cutters bite the exposed loop, or a saw cuts through it. A hidden shackle padlock turns that around. The shackle is short and recessed inside the thick steel body, so when the lock is closed around a matching hasp, there's no exposed metal to cut, pry, or shim. To defeat it, you'd have to get through the solid steel body itself, which the case-hardened construction is built to resist. That's why hidden shackle locks are the go-to for high-theft, outdoor, and unattended applications.

The A2010 has a 3/8" (10mm) diameter shackle, 1-9/32" (33mm) length, and 1-23/32" (44mm) width, dimensions sized to clamp tightly over a hasp staple with minimal exposure.

Built for severe use, mounts to a high-security hasp

The A2010 is precision machined from high-quality solid steel and triple plated for superior corrosion protection, so it survives outdoor weather and rough handling. The flat back is the key design feature for its intended use: it's tapped and threaded so the lock bolts directly to a high-security hasp, the American Lock A801 or A802. Bolted to one of those hasps, the lock and hasp together shield the staple completely, giving you a fully enclosed, attack-resistant locking point. (American Lock also offers the A800LHC, which bundles the A2010 with the hasp.)

That makes the A2010 the right lock for security gates and fences, storage buildings, trailers, trucks, and towing, anywhere a lock is exposed and needs to resist a determined physical attack. It replaces the older A2500 lock.

Rekeyable cylinder that keys into your system

The A2010 uses a rekeyable 6-pin APT2001 cylinder, which gives it superior pick resistance and tens of thousands of possible key changes. Because it's rekeyable, a locksmith can change the keying or bring it onto an existing American Lock key system, and it's available keyed alike (multiple locks, one key) or master keyed in addition to this keyed different version. Two keys are included.

American Lock A2010-KD specifications

• Type: Hidden shackle padlock, maximum security, severe use.

• Body: Case-hardened solid steel, 2-7/8" (73mm) wide. Triple plated for corrosion protection. Flat back, tapped and threaded for hasp mounting.

• Shackle: Hidden. 3/8" (10mm) diameter, 1-9/32" (33mm) length, 1-23/32" (44mm) width.

• Cylinder: Rekeyable 6-pin APT2001, high pick resistance.

• Keying: Keyed different (KD) standard. Also available keyed alike and master keyed.

• Keys: Two included.

• Hasp compatibility: Mounts to American Lock A801 and A802 high-security hasps.

• Replaces: A2500.

• Product number: A2010.

• Best for: Security gates and fences, storage buildings, trailers, trucks, towing.

Why choose the American Lock A2010

American Lock is a trusted name in heavy-duty commercial and industrial padlocks, and the A2010 is its workhorse hidden shackle lock. You get the most attack-resistant padlock format (no exposed shackle), a case-hardened solid steel body, triple plating for the elements, and a rekeyable high-security cylinder that can join your existing American Lock key system. Bolted to an A801 or A802 hasp, it creates a locking point that resists cutting, prying, and drilling, which is exactly what high-value, exposed assets need.

One thing to confirm before ordering: the A2010 is designed to mount to a compatible high-security hasp (A801/A802) for full hidden shackle protection, so plan for the hasp if you don't already have one. This is the different version, choose keyed alike or master keyed if you need multiple locks on one key or on your building system.
