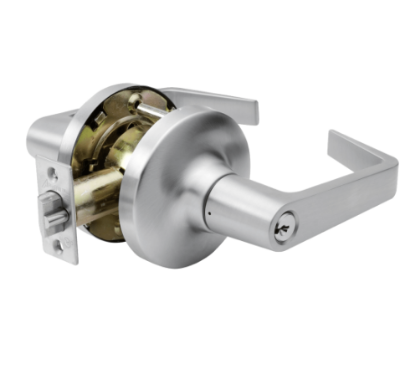

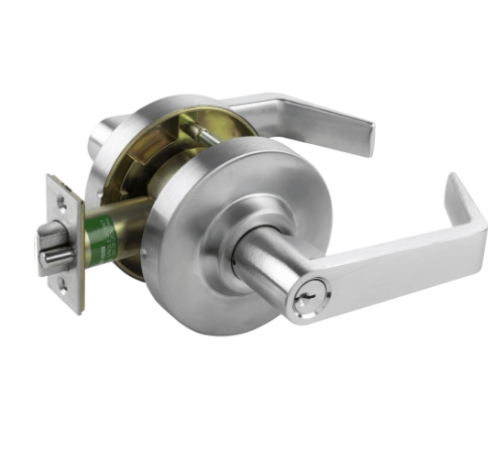

Arrow MLX81 SR - Entrance / Office Lock

Arrow MLX81 SR - Entrance / Office Lock

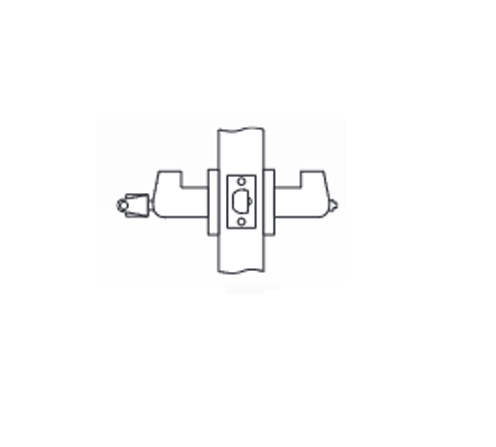

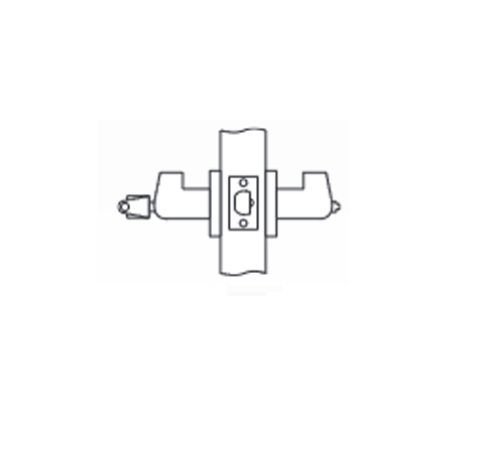

Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.

Finishes: 03 - Bright Brass - US3 (605), 10BP - Dark Oxide Satin Bronze, Oil Rubbed -  US10BL (614), 26D - Satin Chromium Plated US26D (626)

Lever Design: Sierra SR

ANSI/BHMA: A156.2, Series 4000, Grade 2

Backset: 2-3/4"  Backset.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm) standard.

Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Strike: ANSI A115.2, 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm) curved lip

Handing: Non handed.

Exposed Trim: MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).

Freewheeling Lever

Cylinder: Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different

Keys: brass keys

Warranty: Ten Year Warranty

Model: Arrow, MLX81, MLX81SR, MLX81SR26D, MLX81SR03, MLX81SR10BP

MLX81, MLX81-SR, MLX81-SR-26D, MLX81-SR-03, MLX81-SR-10B

Certification & Compliance:

Arrow MLX Series Cylindrical Lever Locks are BHMA Grade 2 Certified, ANSI/BHMA A156.2, Series 4000

All Arrow MLX Series Locks are U.L. and c.U.L. list for use on 3 hour, A label or lesser doors

Meets American with Disabilities Act Requirements
