Arrow SRX82 Exit Lever Trim, Nightlatch-storeroom For S1150, S1250, ED910, & PEC910 Devices

The Arrow SRX82 is an exit lever trim in nightlatch-storeroom function, designed to mount on Arrow S1150, S1250, ED910, and PEC910 exit devices. It's the trim component that provides controlled exterior access on a door already fitted with one of those exit devices, adding a keyed lever on the outside while the inside bar always allows free egress. The cast lever and wrought rose construction give it the durability expected of commercial exit hardware, and it's available in US26D satin chrome and US10B oil rubbed bronze to coordinate with the surrounding opening hardware.

What storeroom function means on an exit trim

Storeroom function is one of the more specific trim configurations in commercial door hardware, and it's worth understanding before specifying. In storeroom function, the outside lever is always locked. The only way to retract the latch from the outside is by inserting and turning a key. The key is removable only when the trim is in the locked position, meaning the door can't accidentally be left in an unlocked state. Inside egress is always free through the exit bar.

This configuration is the right choice for stockrooms, server rooms, equipment closets, and utility spaces where the door should remain secured at all times and access should only be granted by a key holder. It's distinct from passage or classroom function trims, where the lever can be left unlocked for periods of open access. The SRX82 keeps the door secured by default with no toggle or thumbturn to override that state from the outside.

Compatibility with Arrow exit devices

The SRX82 is specifically designed for four Arrow exit device models: the S1150, S1250, ED910, and PEC910. These are rim and surface vertical rod exit devices in Arrow's commercial exit hardware line. Specifying the correct trim for the installed device is not optional. Exit trim mounts through the exit device chassis, and a trim designed for one manufacturer's device will not seat correctly on a different model or brand. Before ordering, confirm the model number of the exit device already installed on the door. The full range of Arrow exit device trim options is available to browse by function and compatibility, and the broader exit device trims and mullion category covers trim for other brands and device types as well.

Lever, rose, and finish specifications

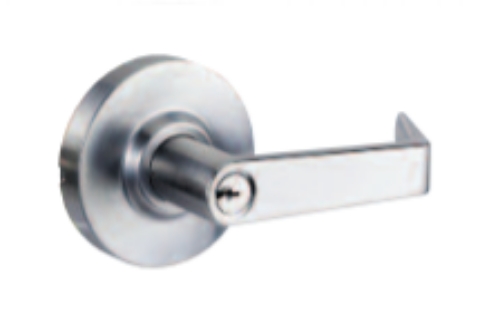

The SRX82 uses an S cast lever and R wrought rose. Cast lever construction is standard for commercial exit trim because it handles the repeated cycling and occasional impact that high-traffic exit doors see over years of use. The wrought rose provides a clean mount against the door face with a finished appearance that suits most commercial interior aesthetics.

Finish options are US26D satin chrome and US10B oil rubbed bronze. US26D is the most common commercial finish and coordinates with the majority of stainless steel and satin chrome hardware in institutional, office, and retail environments. US10B is specified when the opening calls for a warmer, darker finish to match bronze or dark architectural hardware packages. Both finishes are standard catalog options and do not require special ordering on the SRX82.

Ordering the Arrow SRX82

Confirm two things before ordering: the model number of your installed exit device (S1150, S1250, ED910, or PEC910) and the finish that matches your existing hardware. The SRX82 is storeroom function only and is not field-convertible to other functions. If your opening requires a different function such as passage, classroom, or office, that's a different trim model. Browse the complete exit hardware section for coordinating devices, closers, and accessories for the same opening.
