Product Details

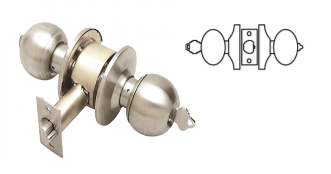

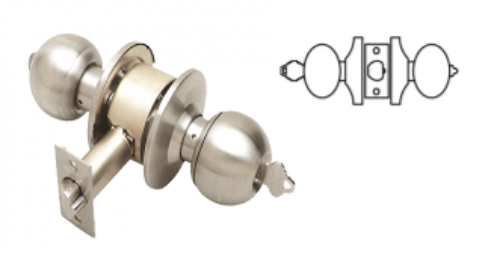

Cal-Royal 7500 Entrance Lock - ANSI: F109
Turn / Push button locking. Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned.
DOOR RANGES:Adjustable for 1 3/8" to 1 3/4" door thickness.
BACKSET:Standard 2 3/8" and 2 3/4" adjustable.
LATCH FACEPLATE:2 1/4" x 1" standard.
STRIKES:T strike standard. Optional ANSI or full lip strike available.
KEYING:6-pin "C" keyway cylinder, 2 keys per lock.
BORE DIAMETER:1" for latch. 2 1/8" for lock housing.
ANSI STANDARDS:Meets or exceeds requirements of ANSI / BHMA A156.2
Series 4000 for Grade 3 (FF-H-106C)
Model:
Cal Royal 75, 7500, 7500US5, BA0010B, BA00US3, BA0032D
