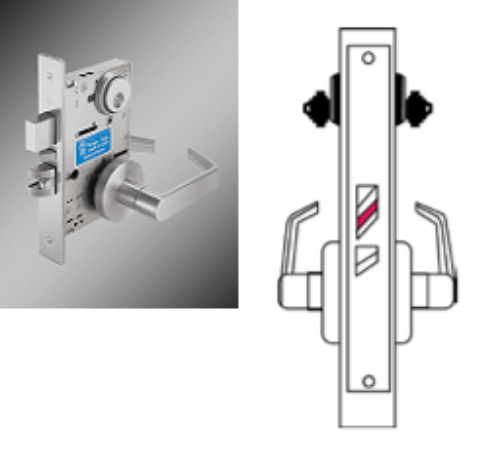

Cal Royal SC8071 US26D Extra H.D. Grade 1, Classroom Security Mortise Lockset - Satin Chrome

Cal Royal SC8071*US26D Extra Heavy Duty Grade 1, Classroom Security Mortise Lockset - With Clutch Free-Wheeling - Satin Chrome*

For Trims Styles Click here

Function:*-*ANSI  F32- Classroom Security -Latch bolt retracted by knob / lever from either side unless outside is locked by key from either side. When outside lever is locked, latch bolt is retracted by key outside or lever inside. Turning key from either side locks and unlocks outside lever. Auxiliary latch deadlocks latch bolt when door is locked. Inside knob / lever is always free for immediate egress.

For Doors:1 3/4" (44.5mm) thick standard.Lock Hand:Lock bodies are easily field reversible, no need to specify hand when ordering

Backset & Strike:2 3/4" (70mm) only backset. Brass or stainless steel strike; ANSI Standard A115.1; curve lip with dust box

Lock Case:Heavy Duty wrought steel, zinc dichromate plated

Center To Center:Center of lever to center of cylinder is 3 7 /8" (98mm)

Armor Faceplate:Brass or stainless steel; 8" x 1 7 /32" (203mm x 31.3mm); ANSI Standard A115.1

Deadbolt:1" (25.4mm) throw; hardened stainless steel

Latch Bolt:3/4" (19mm) throw; one-piece stainless steel with anti-friction reversible tongue

Cylinder & Keyways:6-pin solid brass "C" keyway standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

Interchangeable core (IC):Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW (SFIC). Also available with SCHLAGE,CORBIN / RUSSWIN D-1 thru 4, SARGENT LA , and YALE GA Large Format Cylinders.

Toggle Button:High rust-resistant chrome plated zinc alloy Warranty: Lifetime warranty

Model:Cal Royal SC8071 Extra Heavy Duty Grade 1, Classroom Mortise Lockset - With Clutch Free-Wheeling - Satin Chrome, SC8071SS, SC8071SE, SC8071 SS,  SC8071SE,

ANSI / BHMA -  Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards

UL / cUL  - UL and UL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate

POSITIVE PRESSURE - Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

ADA - Meets ADA requirements, specifically designed for Barrier Free Application
