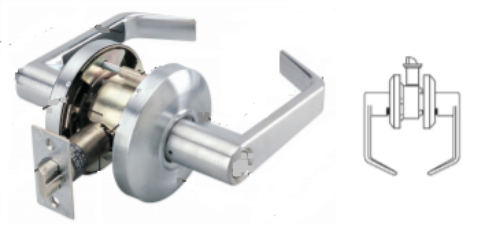

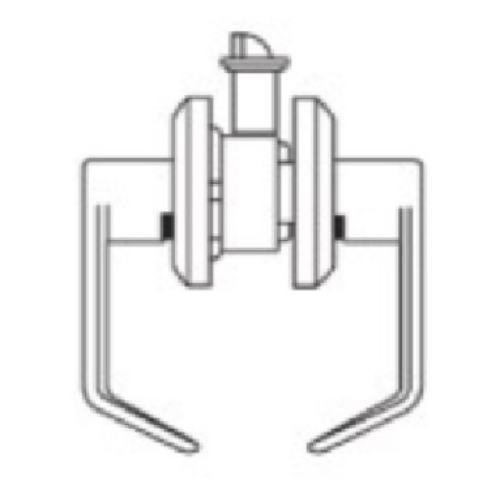

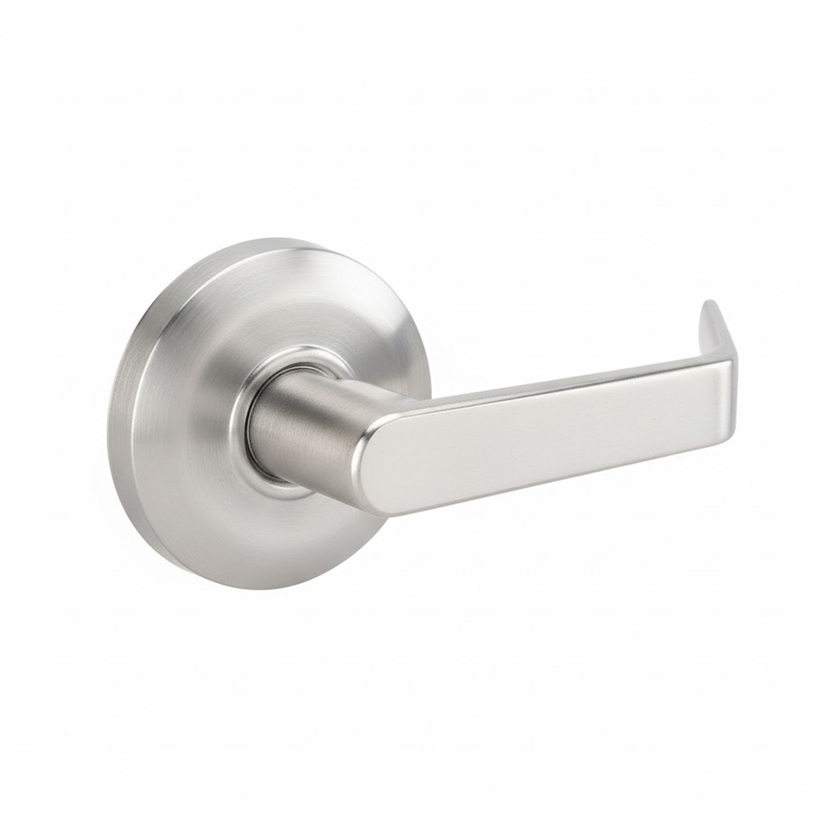

Cal-Royal SL30 US26D Passage Lock, Satin Chrome

The Cal-Royal SL30 is a Grade 2 passage lever lock, a plain lever set with no locking, just a latch that lets the door open and close from either side. The passage function (ANSI F75) means the lever operates the latch on both sides at all times, the spring latch holds the door closed, and there's no key, button, or way to lock it. It's the lock for doors that need to latch but never need to be secured, closets, corridors, supply rooms, and pairs that just stay shut against a stop. The SL30 is part of Cal-Royal's Pioneer Series with the SL lever style, a value-priced Grade 2 line built for offices, schools, hospitals, apartments, and other public buildings.

What the passage function does

This is worth being clear on, because passage means no security at all. Turn either lever and the latch retracts so the door opens, release it and the spring latch holds the door closed against the frame. There's no button, no key, no thumbturn, nothing to lock. That's exactly the point: on a closet, a hallway door, a stockroom that doesn't need security, or one leaf of a pair, you want reliable latching and free operation from both sides, never the risk of locking someone in or out. If a door does need to lock, the Cal-Royal SL line covers other functions, the SL00 for entrance/office, the SL03 for classroom, so match the function to the door.

Because the latch is reversible, the SL30 fits left-hand and right-hand doors without specifying handling, which keeps ordering and stocking simple.

Value-priced Grade 2 for everyday commercial doors

The SL30 is built to ANSI Grade 2, the right level for commercial openings in normal traffic that don't need heavy-duty Grade 1 hardware. The Pioneer Series is Cal-Royal's value lever line, so it delivers genuine commercial Grade 2 performance at an economical price, the practical choice when a project has a lot of passage doors to outfit and the budget matters. The 1/2" throw latchbolt is solid brass and UL listed, the front is adjustable for flat or beveled doors, and it fits doors 1-3/8" to 1-3/4" thick with a 2-3/4" backset standard (2-3/8", 3-3/4", and 5" optional).

The SL lever style gives the lock a clean, contemporary look, and an ASA strike comes standard with T and full-lip strikes available on request. For schools, offices, hospitals, and multifamily buildings filling everyday non-locking doors, the SL30 covers the job without overspending.

Cal-Royal SL30 specifications

• Function: Passage, ANSI F75. Latch operated by lever from either side at all times. No locking, no key.

• Grade: ANSI Grade 2. Pioneer Series, SL lever style.

• Latchbolt: 1/2" throw, solid brass. Reversible for RH or LH. UL listed.

• Door range: 1-3/8" to 1-3/4" thick.

• Backset: 2-3/4" standard. 2-3/8", 3-3/4", 5" optional.

• Front: 2-1/4" x 1-1/8", adjustable for flat or beveled doors (1/8" in 2").

• Strike: ASA standard. T strike and full-lip strike available on request.

• Screws: 8-32 x 1" FPH dual-purpose latch and stick screws.

• Finish: US26D satin chrome.

• Applications: Offices, schools, hospitals, apartments, hotels/motels, public buildings.

Why choose the Cal-Royal SL30

Cal-Royal is a value-focused commercial hardware brand, and the SL30 is a practical, economical passage lever for doors that just need to latch and operate freely. You get genuine Grade 2 commercial construction, a UL-listed solid brass latch, reversible non-handed installation, and the clean SL lever style, all at a value price that makes sense when you're outfitting a lot of openings. For the many passage doors in a school, office, or multifamily building, the SL30 is a smart way to keep the spec consistent without overspending.

One thing to confirm before ordering: passage means no locking at all. If the door needs to lock, choose a different Cal-Royal SL function (SL00 entrance/office, SL03 classroom, or a privacy version). The SL30 comes in satin chrome (US26D); confirm that matches your other hardware.
