Camden CM-TX9 Wall Switch Transmitter, 500 Foot Range, Includes (2) AAA Alkaline Batteries

Camden CM-TX9 Wall Switch Transmitter, 500 Foot Range, Includes (2) AAA Alkaline Batteries

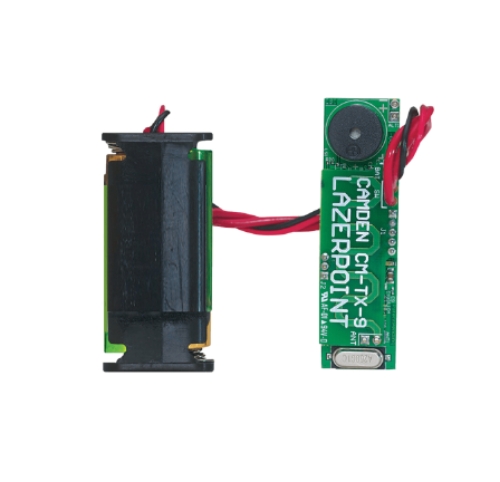

General Description Camden Lazerpoint Radio Controls comprise the following models: CM-TX-9 Wall switch ready transmitter. CM-RX-91 Basic Receiver. CM-RX-92 Full function (dual relay) Receiver.

TX-9 transmitters utilize readily available AAA batteries, and special circuitry to assure long life.

A proprietary piezo sounder is used to annunciate low battery, battery level, and "stuck switch" conditions.

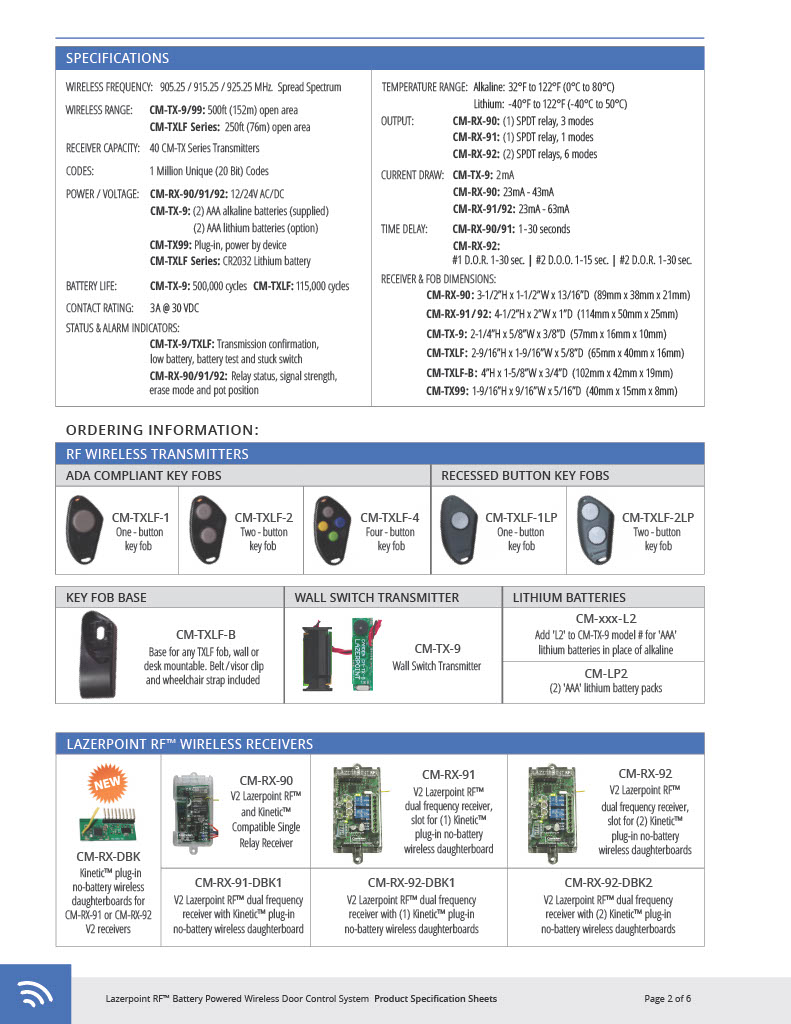

Technical Data

Model:TX-9 Transmitter. Frequency:Operates in the 902 - 928 MHz. - ISM Band Codes:1 million (20 bit) codes. Size:2 1/4" L x 5/8" W x 3/8" H. Mounting:Double sided foam tape. Switch Connection:2 x 10" leads with 1/4" quick disconnect terminations. Built-in Piezo sounder:Used for Low Battery status, Battery Gauge, and Stuck Switch indicator. Power:2 x AAA alkaline batteries. Battery life Minimum:500,000 operations. Range:Over 500 ft (open area). Temperature rating:-40 to 185 F (-40 to +85 C).

Warranty

Door Controls guarantees the Lazerpoint RF (TX-9, RX-91,or RX-92 models) to be free from manufacturing defects for 3 years from date of sale. If during the first 3 years a Lazerpoint RF component fails to perform correctly, it may be returned to our factory where it will be repaired or replaced (at our discretion) without charge. Except as stated herein, Camden extends no warranties expressed or implied regarding function, performance or service. NOTE: Batteries are exempt from this warranty!and 333 series touchless switches and CM-120 Series Keypads
