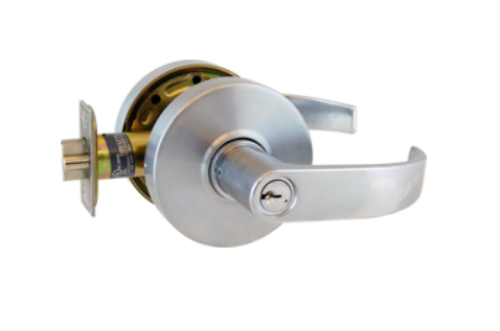

Command Access CL180LEEU L17 626 Electrified Low Energy Cylindrical Lock, Fail Secure, L17 Lever, Satin Chrome

Command Access CL180LEEU L17 626 Electrified Low Energy Cylindrical Lock, Fail Secure, L17 Lever, Satin Chrome

Product Details

Command Access CL180LEEU L17 626 Electrified Low Energy *Cylindrical Lock, Fail Secure, L17 Lever, Satin Chrome*

CL180LE-EU - Outside lever unlocked (EU) electronically. - Latchbolt retracted by key out-side or lever inside. - Switched power allows outside lever to retract latchbolt. - Inside lever is always free for immediate egress

SPECIFICATIONS:

Voltage: - Operating Voltage - 11-30 VDC - Surge Current: 400 mA @12V, 200 mA @ 24V - Holding Current: 30 mA - Specify Fail Safe (EL) or Fail Secure (EU)

Accessories:- 2-3/8" backset available

Features:- Low maximum current draw 400 mA (12V): use more locks on a single power supply. Additonal savings for the owner - Low holding current 30 mA : reliable operation and meets sustainable consideraton - Fail Safe (EL) & Fail Secure (EU) available; not field selectable - Multiple lever styles available - Available SFIC or LFIC (Schlage): Cylinder not included - Available with Schlage C type keyway standard

Command Access CL180LEEU L17 626 Electrified Low Energy Cylindrical Lock, Fail Secure, L17 Lever, Satin Chrome

Name: Command Access CL180LEEU L17 626 Electrified Low Energy Cylindrical Lock, Fail Secure, L17 Lever, Satin Chrome
SKU: CL180LEEUL17626
Price: 305.50 USD
Availability: InStock

SKU: CL180LEEUL17626

In Stock

Chat

$305.50

About this item

The Command Access CL180 LE series is a low-energy, cost effective cylindrical lock that is ideal for any continuous duty application or condition requiring low surge and hold current. Its unique electronics allow the CL180LE to function much like a motor-driven lockset without the potental problems inherent in motors. The CL180LE will operate with an input voltage between 11-30 volts, eliminating the need to inventory 12 and 24V models. The CL180LE features a standard Built-in Request to exit (REX/AE) switch.

Resources

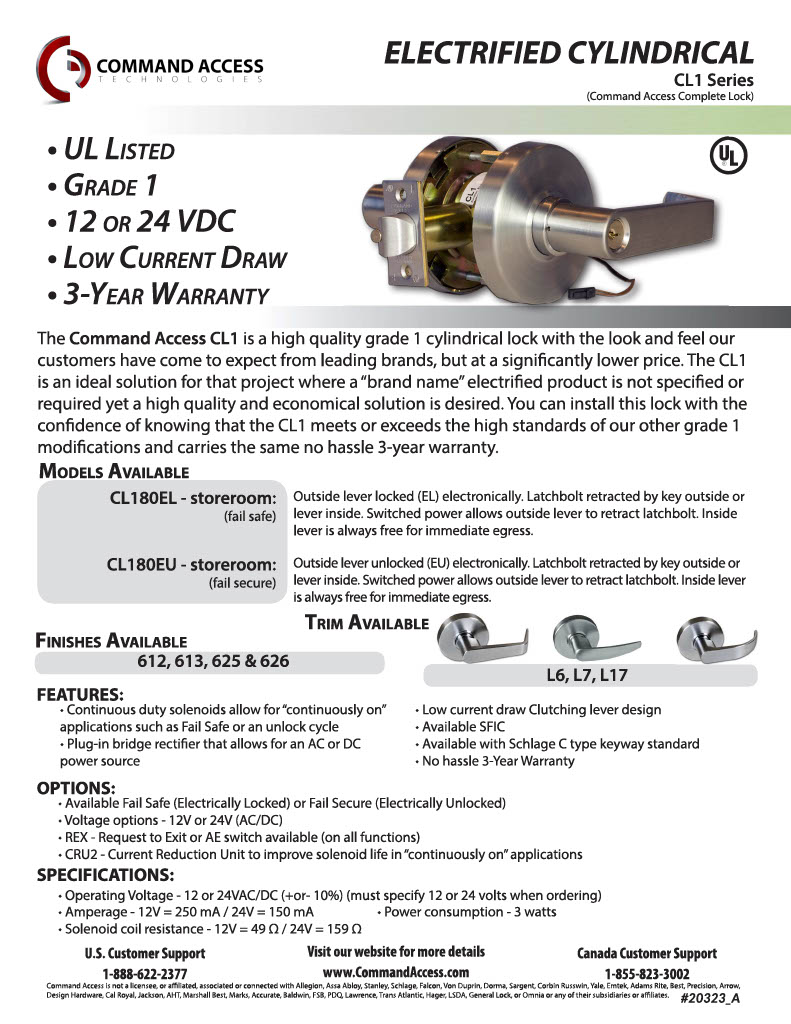

CUTSHEET

Command Access CL180LEEU L17 626 Electrified Low Energy *Cylindrical Lock, Fail Secure, L17 Lever, Satin Chrome*

SPECIFICATIONS:

Voltage: - Operating Voltage - 11-30 VDC - Surge Current: 400 mA @12V, 200 mA @ 24V - Holding Current: 30 mA - Specify Fail Safe (EL) or Fail Secure (EU)

Accessories:- 2-3/8" backset available
