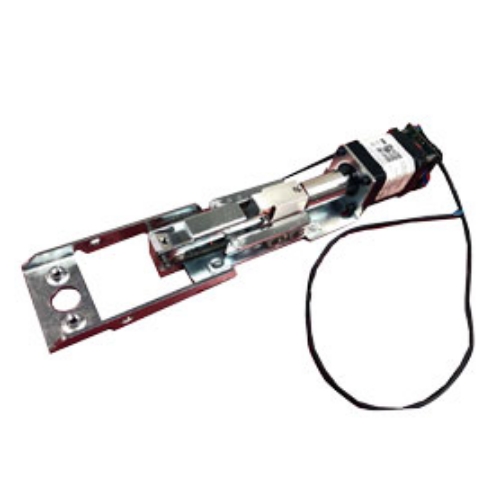

Command Access MLRK1-Cal Electrified Latch Retraction For Cal-Royal 98/2200 Series

Command Access MLRK1-Cal Electrified Latch Retraction For Cal-Royal 98/2200 Series The MLRK1-CAL is a practical and cost-effective way to convert a mechanical Cal Royal 9800 & 2200 series exit device to an electrified latch retraction device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches.  "PTS" Push to set technologyEasy installation - underneath the push pad for ultimate cutdownFast, quiet, smoothTrue Electronic Dogging - Full push pad retractionUL ListedFEATURES: MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issuesRemote MM4S module for easy accessibility y & servicing."PTS": 5 second electronic adjustment for easy post installation adjustmentElectric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged positionLow Current Draw - Field switchable to "High Torque" modeUp to 300' wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel8' cable with Quick Connect for MM4S module to easily connect to power supply leadRequest-to-exit kit available3-year "no hassle" warranty

SPECIFICATIONS Voltage:- Voltage range - 24 to 28 VDC- System protection - unit shutdown when voltage exceeds 28VDC- Standard - Average Current Peak: 900A, Average Current Hold: 215mA- High Torque - Average Current Peak: 2A, Average Current Hold: 250mA- PTS adjustment - approx. 1/4"Wire Run:- 300- with 18ga wire Product Details:- Weight: 2 LbsAccessories:- Request-to-Exit - Field Installable REX kit or built-in to kit.Device Cutdown Details:All the way to the push padAccessories:Request-to-Exit - Field Installable REX kit
