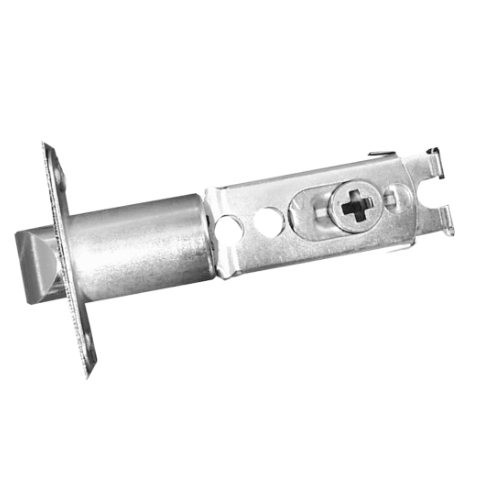

Dormakaba 54444-03-01 Simplex 7000 Series 7104 Latch Bolt Assembly Adjustable 2 3/4" & 2 3/8" backset - Bright Brass (Includes 1 ea.) (Replaced 202003)

Simplex 7000 Series 7104 Latch Bolt Assembly - Dormakaba OEM Replacement Part

This is the OEM replacement latch bolt assembly for the Simplex 7000 Series 7104 mechanical pushbutton lever lock. Dormakaba part number 54444-03-01 supersedes the original Simplex part number 202003. If your maintenance records, service manual, purchase history, or parts catalog references 202003, this is the current replacement. Same assembly, updated part number under dormakaba's consolidated catalog. One complete assembly included per order.

Which Simplex 7000 Series Lock This Fits

The Simplex 7000 Series comes in three core configurations. The 7102 is a deadbolt-only model operated by a thumbturn on the interior and the pushbutton combination on the exterior. The 7104 uses a spring-loaded latchbolt with a lever handle on the interior - the lever retracts the latch for egress without requiring the combination. The 7108 combines both a lever handle and a deadbolt in one unit. This latch bolt assembly - part 54444-03-01 - is specifically for the 7104 model.

If your Simplex lock has an interior lever that retracts a spring latch when you turn it, this is the correct assembly. If your lock has an interior thumbturn operating a deadbolt, that is the 7102 model and requires the 7102 deadbolt assembly. Ordering the wrong assembly for the wrong model is the most common parts mistake on this series - confirm the model number on your existing lock before placing the order.

Backset: How to Measure and How to Adjust

The 54444-03-01 assembly is field-adjustable between two standard backset dimensions: 2-3/4 inch (70mm) and 2-3/8 inch (60mm). No tools are required to select the backset - the adjustment is made by repositioning the latch body before installation.

To determine which backset your door uses, measure from the edge of the door to the center of the bore hole where the existing latch sits. Standard residential interior doors typically use the 2-3/8 inch backset. Standard commercial interior doors typically use the 2-3/4 inch backset. Both dimensions are common in Simplex 7104 installations, so this adjustable assembly fits the full range without requiring a backset-specific part number.

Finish and Companion Parts

This assembly ships in bright brass finish, designated US3 in the hardware finish system. If your Simplex 7000 Series lock is satin chrome (US26D or 626 finish), the companion part is dormakaba 54444-26D-01, also stocked separately.

The latch bolt assembly is component number 4 in the Simplex 7100 Series exploded parts diagram. If you are ordering from an existing parts reference sheet or service diagram, look for line item 4 to confirm this is the correct component for the latch mechanism.

Technical Specifications

Latch type: spring-loaded deadlocking latchbolt with 1/2 inch throw. The guard plunger alongside the latch bolt deadlocks the latch in the strike pocket when the door is closed, preventing the latch from being pushed back with a card or tool. Compatible door thickness: 1-3/8 inch to 2-1/4 inch. Non-handed - installed on either hand door without modification. Flat front face plate included.

Why Replace the Latch Assembly Instead of the Full Lock

The Simplex 7000 Series combination is stored mechanically in the pushbutton chassis, completely separate from the latch bolt assembly. Replacing the latch bolt does not affect or reset the combination. The existing combination stays active, the rest of the lock body stays in the door, and the repair is complete in under 30 minutes with basic hand tools. This makes latch bolt replacement the correct service approach for worn, stiff, or damaged latches - full lock replacement is unnecessary and significantly more expensive.
