Dormakaba Simplex 9600 Mechanical Pushbutton Cabinet Lock

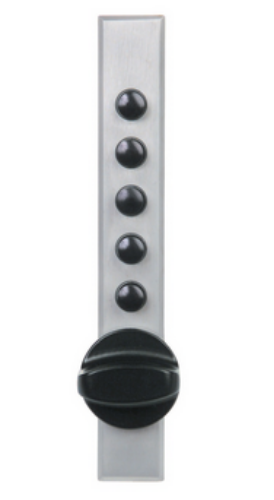

The dormakaba Simplex 9600 is a fully mechanical pushbutton cabinet lock designed for interior storage applications where a reliable single-code keyless lock is needed without batteries, wiring, or the overhead of key management. The all-metal cast face plate houses vandal-resistant solid metal pushbuttons and a force-resistant protected exterior knob. It installs horizontally or vertically on wood cabinet doors from 5/8" to 7/8" thick and on sheet metal applications from 14 to 20 gauge, making it compatible with a wide range of cabinet and drawer constructions. Weight is 1 lb. Available in bright brass, satin brass, and satin chrome with an optional black trim plate.

Where the Simplex 9600 is designed to be used

The 9600 is purpose-built for the category of access control where a full cylindrical or mortise lock would be overspecified and a padlock would be inconvenient. The applications listed for this lock are specific: medicine chests, liquor cabinets, gun boxes, courier pick-up boxes, home entertainment units, cleaning supply cabinets, tool chests, private files, audio-visual equipment cabinets, and petty cash drawers. These are shared-environment storage points where restricting access to one group of authorized users matters, but where the lock doesn't need to meet fire ratings, cycle counts in the millions, or institutional security standards.

The pushbutton format is particularly well-suited to high-turnover environments like hotels, offices, and facilities where keys get lost, copied, or collected incompletely when staff changes. When a code change is needed, the new code is programmed from the keypad with the lock installed on the cabinet, with no disassembly and no locksmith required.

Bolt and latch options on the 9600

The 9600 offers three locking device configurations. The flat deadbolt and round deadbolt are both end-throw/cross-throw deadbolts that must be manually relocked after each use. The latch retracts when the code is entered, the cabinet opens, and the bolt stays retracted until the user manually resets it. The round spring latch bolt operates differently: it retracts on code entry, allows the cabinet to open, and automatically relocks when the cabinet closes. The spring latch model is the better choice for applications where consistent relocking without user action is important, such as petty cash drawers or medical supply cabinets where forgetting to relock creates a security gap.

An optional key override is available on select models, adding a secondary access method for situations where an authorized supervisor needs to open the cabinet without the combination or in an emergency. The key override adds a small upcharge to the base price and ships with the lock when specified at ordering.

Installation and door preparation requirements

The 9600 uses a two-step mortise installation. For wood cabinet doors, it requires either a router cut or a 5-1/2" x 1" slot with a trim plate. For metal cabinet applications, a punched slot or a series of 7/16" drilled holes serves as the mounting preparation. The non-handed design installs in either orientation without modification. The trim plate, available in an optional black finish, covers the installation opening and provides a clean finished appearance on the cabinet face.

For the complete range of 9600 Series configurations including different bolt types, key override options, and finish combinations, browse the Simplex 9600 Series catalog. The broader mechanical pushbutton locks section covers cylindrical and deadbolt pushbutton options for door applications. For alternative cabinet and storage security hardware, the padlocks section offers complementary options.

Select your bolt type, door thickness, finish, and trim plate preference when ordering. Confirm your cabinet material and door thickness fall within the 9600's installation range before specifying.
