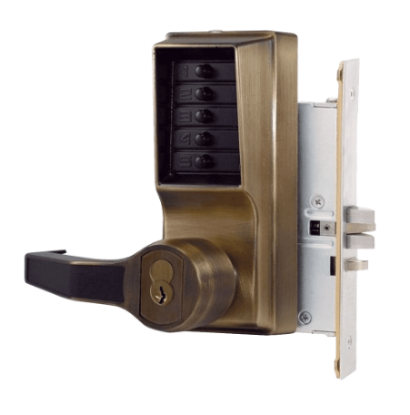

Dormakaba Simplex LR8146M-05 Mortise Lock - LHR - Medeco IC - Antique Brass

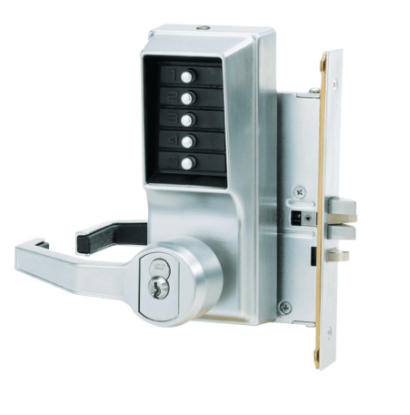

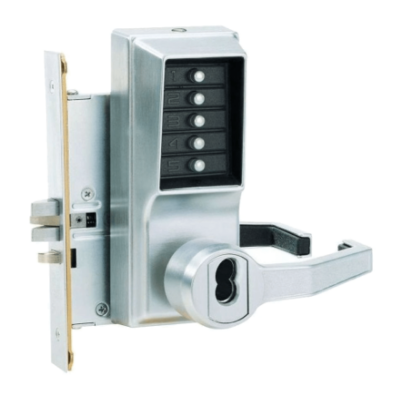

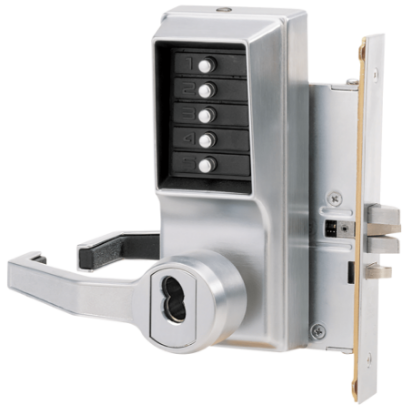

Dormakaba Simplex LR8146M Mortise Type Pushbutton Lock with Key override (Medeco Yale)

for Left Hand Reverse Swing Doors (LHR)

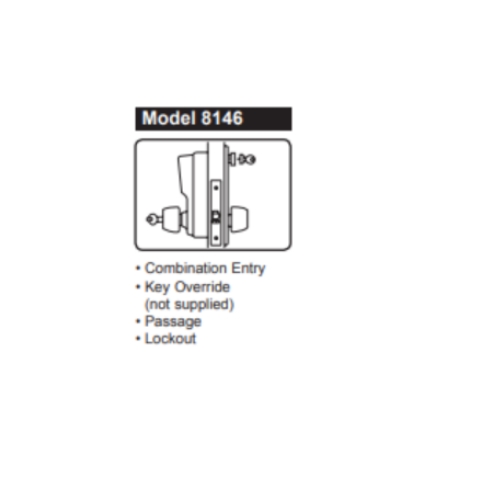

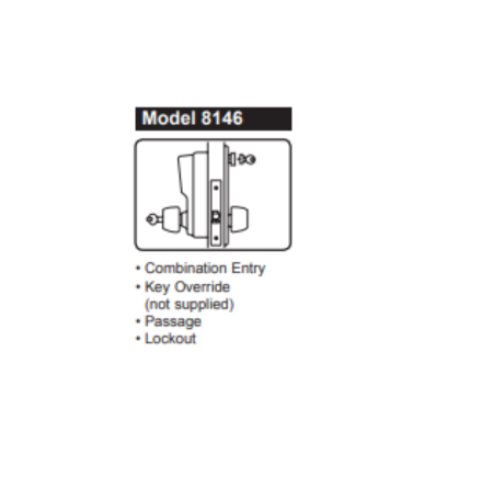

Single access code: one easy to manage code for all users Lock is easily programmed via keypad without removing lock from the door

Key Override: Large format IC core prepared for Medeco Yale core(core not supplied)

Passage option: Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models

Lockout option: Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only

Features Include:

Heavy-duty mortise lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Locking Device: 3/4" (19 mm) two-piece anti-friction latch (with Deadbolt see model 8148)

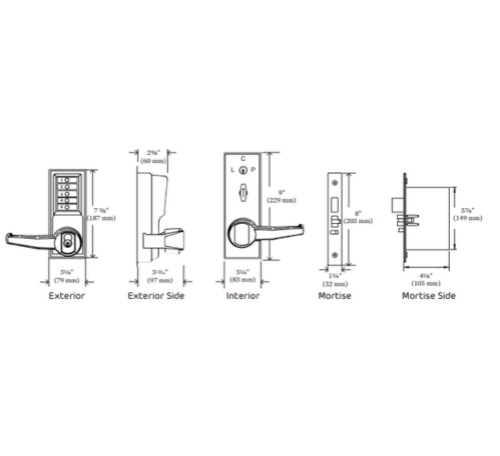

Minimum Stile Recommended: 5" (127 mm) Door Thickness: 1-3/4" (44) to 2-1/4" (57 mm)Highly weather resistant

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Certification and Standards: Americans with Disabilities Act (ADA)

3-year warranty

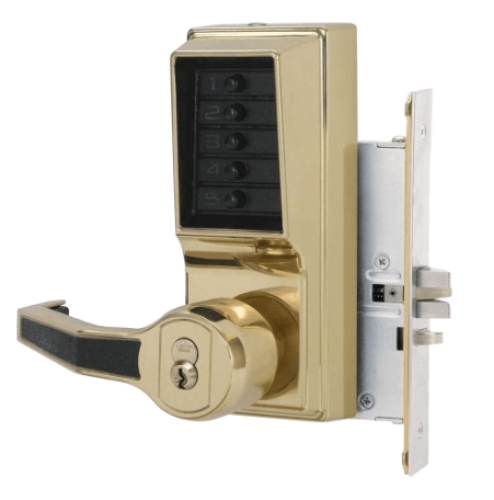

Model: Dormakaba, Ilco, Access, Simplex, LR8146M03, LR8146MUS3, LR8146M-03-41, 609, Antique Brass
