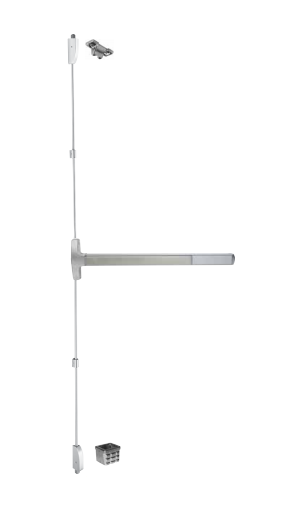

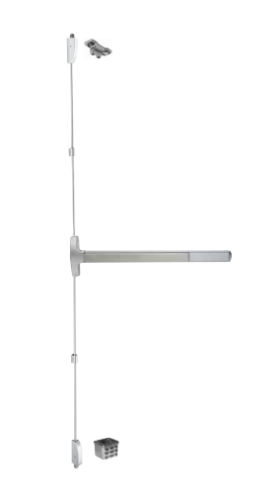

Falcon F24V-EO Fire Rated Narrow Vertical Rod Exit Device (Monarch)

Falcon F24V-EO Fire Rated Narrow Vertical Rod Exit Device (Monarch)

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

• Frequent traffic

• Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

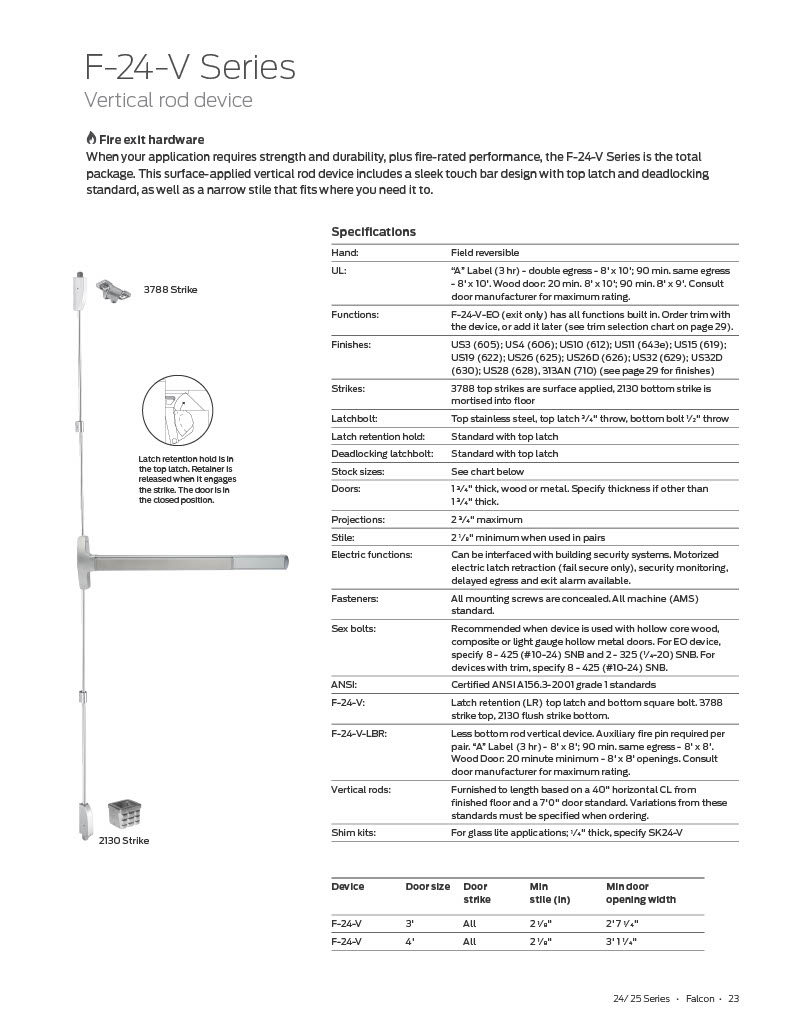

Hand:Field reversible.

UL:“A" Label (3 hr) - double egress - 8' x 10'; 90 min. same egress - 8' x 10'. Wood door: 20 min. 8' x 10'; 90 min. 8' x 9'. Consult door manufacturer for maximum rating.

Functions: Functions: F-24-V-EO (exit only) has all functions built in. Order trim with the device, or add it later

Strikes:3788 top strike is surface applied, 2130 bottom strike is mortised into floor.

Latchbolt:Top stainless steel, top latch 3⁄4" throw, bottom bolt 1 ⁄2" throw.

Deadlocking latchbolt:Standard with top latch.

Latch retention hold:Standard with top latch. On top latch.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Doors:1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4" thick.

P*rojections:*2 3⁄4" maximum, 2" dogged.

Stile:1 3⁄4" minimum when used in pairs.

Fasteners:All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425  SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 8 - 425  SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

24-V:Latch retention (LR) top latch and bottom square bolt. 3788 strike top, 2130 flush strike bottom.

24-V-LBR:Less bottom rod vertical.

Vertical rods:Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering

Model:Falcon F24V-EO, F24V EO,  F24VEO,  F-24-V-EO,  F 24 V EO,
