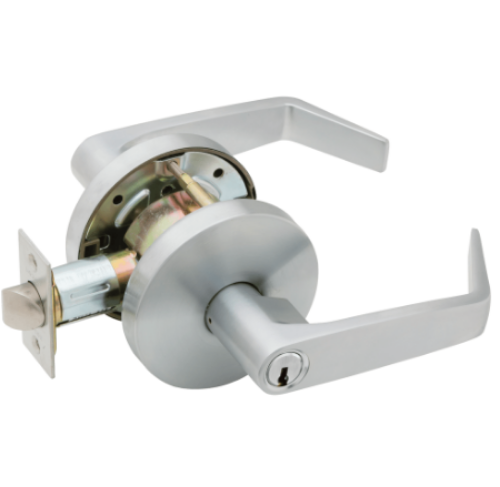

Falcon W581 - SR Grade 2 Storeroom Lock - Small Rose

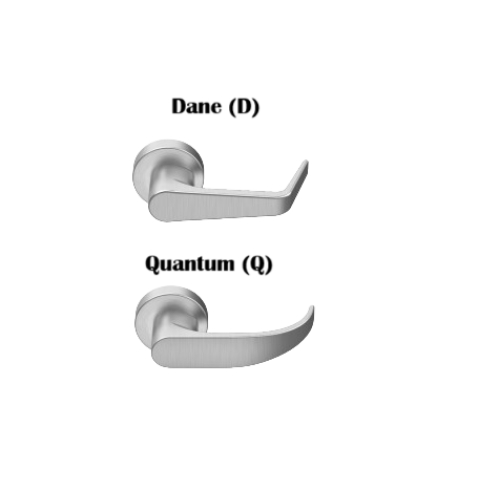

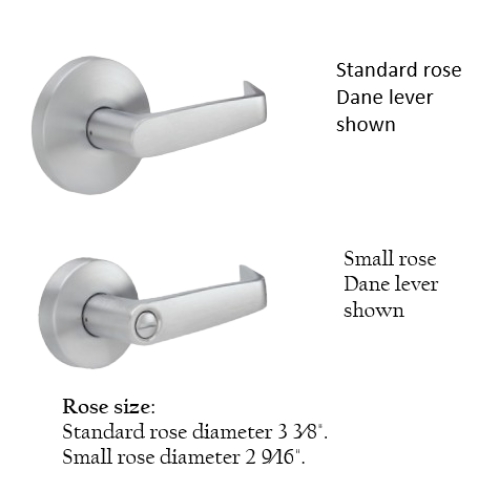

The Falcon W581-SR is the small rose version of the Grade 2 storeroom cylindrical lever lock from the Falcon W Series, built to ANSI function F86. The SR designation means the rose diameter is 2-9/16", which is smaller than the standard 3-3/8" rose on the W581. The outside lever is always locked. Entry requires a key every time. The inside lever is always free for egress. Meets ANSI/BHMA A156.2 Series 4000 Grade 2 and UL listed for 3-hour A label fire door assemblies. Available in Dane and Quantum lever styles across six finishes.

When does a storeroom lock need a small rose

The small rose on the W581-SR exists to solve a specific installation problem. A 3-3/8" rose sits well on most commercial hollow metal doors with standard bore spacing and clear door panels. But when the bore is close to a glass lite, a door edge, or another piece of hardware already on the door, a full-size rose can overlap the adjacent element or look visually crowded on a narrow stile. The 2-9/16" rose footprint is smaller by over 3/4" in diameter, which provides the clearance needed in those tight installation conditions without requiring a different lock function or platform.

The small rose also suits retrofit projects where the existing door has hardware marks or paint shadows from a previous lock with a smaller trim profile. Installing a larger rose in that situation leaves visible gaps at the edges of the rose footprint. The W581-SR fits within the existing footprint on doors previously fitted with compact trim, keeping the installation looking intentional rather than patched. Both the standard W581 and the W581-SR carry the same function, grade, and certifications. The only difference is the rose size and the lever style options available.

Storeroom function and deadlocking latch on the W581-SR

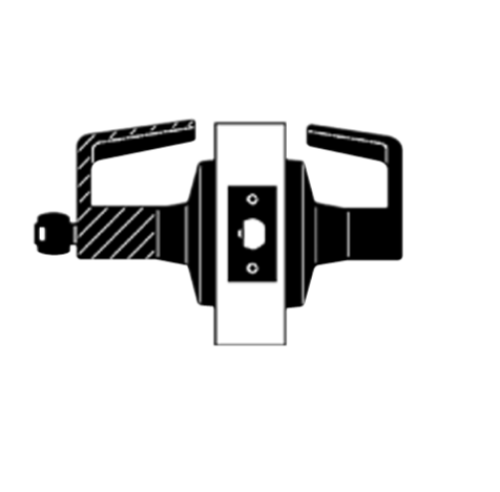

ANSI function F86 means the outside lever is inoperable at all times without a key. There is no push button, no thumbturn, and no tool that overrides the outside lever lockout from the interior side. A key in the outside cylinder is the only method of exterior entry. The inside lever is always free, providing immediate egress regardless of the outside lever state. The 1/2" stainless steel latchbolt is deadlocking: when the door is fully closed, an auxiliary latch pins the main bolt, preventing it from being retracted by shimming or external manipulation through the door-to-frame gap. The latch front is self-adjusting for flat or beveled doors, and latchfaces are 2-1/4" x 1" at 2-3/8" backset or 2-1/4" x 1-1/8" at 2-3/4" backset.

Cylinder, rose construction, and installation specs

The rose is 2-9/16" diameter, heavy wrought brass or bronze, installed over a steel rose insert that is through-bolted through the door. Through-bolting resists the lateral loosening that develops over time with screw-only mounted trim on doors that cycle repeatedly. The lock chassis is secured by two screws through the steel insert and two additional screws into the chassis assembly for a four-point connection. Combination screws for wood or metal doors and frames are included. Door thickness range is 1-3/8" to 1-3/4" standard. Backset is 2-3/4" standard with a 2-3/8" option available. The 4-7/8" x 1-1/4" ANSI curved lip strike meets ANSI A115.2. Cylinders are solid brass housing and plug, available with conventional G keyway standard, Schlage C keyway, or 6 or 7-pin SFIC in the A keyway. Two nickel silver keys ship standard.

For the full W Series storeroom and other function configurations including the standard rose variant, browse the Falcon W Series Grade 2 catalog. The complete Falcon lever locks section covers all W, B, and T series options. For the broader range of commercial cylindrical lever locks across all brands and grades, the cylindrical lever locks catalog is available on this site.

Select your lever style, finish, backset, and keyway when ordering. Confirm door thickness is within 1-3/8" to 1-3/4" and verify the small rose fits your door prep before specifying the W581-SR.
