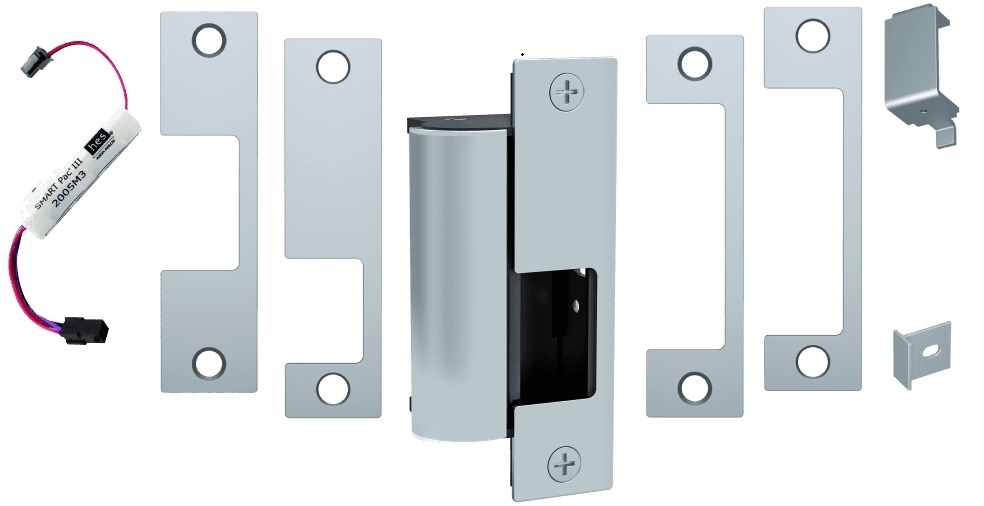

Hes 1006CS-630 Fail Secure, Complete 12/24VDC Electric Strike, SMART Pac II, J, KD, KM, HM and AD Faceplates, Satin Stainless Steel Finish

Hes 1006CS-630 Fail Secure, Complete 12/24VDC Electric Strike, SMART Pac II, J, KD, KM, HM and AD Faceplates, Satin Stainless Steel Finish

Features: The Complete One Box Solution for all cylindrical and mortise locksets, with or without a 1" deadbolt

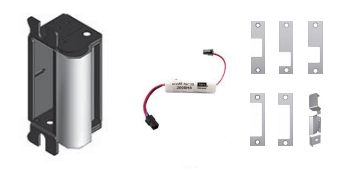

The 1006CS Smart Strike includes a 1006 electric strike body and SMART Pac III plus faceplates and brackets that can provide the same function as any of following options: J Option, K Option, KD Option, KM Option, A Option, AD Option, AM Option, H Option, HD Option, HM Option, HT Option, HTD Option, N Option, ND Option,, NM Option, T Option, TD Option

Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

 Stainless steel construction Tamper resistant Static strength 3070 lbs. (fail secure) Dynamic strength 350 ft-lbs. (fail secure) Endurance 1,000,000 cycles Fail secure (standard) Dual voltage 12 or 24VDC continuous duty Non-handed Internally mounted solenoid Accommodates up to 1" deadbolt Plug-in connector Full keeper shims for horizontal adjustment Trim enhancer Five year limited warrantyFrame Application: - Metal - Wood

Electrical: .45 Amps at 12VDC continuous duty - .25 Amps at24VDC continuous duty

Finish: 630 - Satin Stainless Steel

Optional Features: LBM Latchbolt monitor - LBSM Latchbolt strike monitor

Model: HES,1006CS605, 1006CS6056 1006CS612, 1006CS613, 1006CS629, 1006CS630, 1006CSBLK, Electric Strike

 UL 10C fire-rated, 3 hour single door (fail secure only) UL 10C fire-rated, 1-1/2 hour double door (fail secure only) CAN4-S104 (ULC-S104) fire door conformant ANSI A250.13-2003 windstorm listed UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformant ASTM-E152 fire door conformant MEA New York City accepted Florida Building Code approved Patents Number: 6021038 & 6595564
