LCN 4040XP-3049 Hold Open Arm

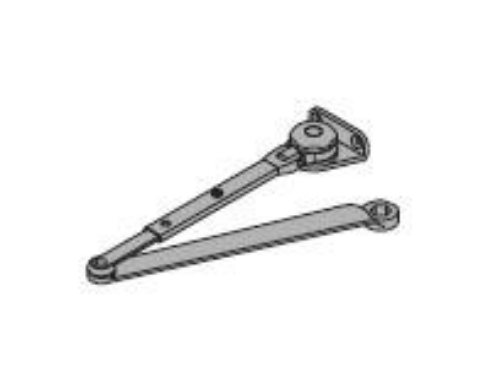

The LCN 4040XP-3049 is a hold open arm accessory for the LCN 4040XP series door closer, sold separately from the closer body. It allows the door to be held open at any angle and releases when the door is pushed closed. This arm is specified when a 4040XP closer is already installed and the application requires hold open capability that wasn't included in the original arm configuration, or when the existing arm needs to be replaced. Available in five finishes: aluminum, dark bronze painted, light bronze painted, satin brass painted, and black painted.

What hold open arm function does and when it's needed

A standard door closer arm returns the door to the closed position after every opening cycle. That's the correct behavior for fire-rated doors, exit corridors, and any opening where the door must close automatically after each use. Hold open arm function changes that behavior. The 4040XP-3049 arm holds the door open at any point in its swing arc and maintains that open position until someone physically pushes the door to close it. Once pushed past the hold open release point, the closer takes over and completes the closing cycle normally.

This is specified in building locations where a propped-open door creates a workflow problem. Loading dock doors that need to stay open during receiving. Office suite entries that remain open during business hours without a wedge or stopper. Institutional corridor doors that need to be held for cart and equipment movement. Any door where repeated manual re-opening is operationally disruptive and a hold-open position provides the right solution. Because the closer body and spring remain active, the hold open arm still allows the door to close completely and latch when pushed, which satisfies fire code on doors where a magnetic hold-open device would be prohibited.

Compatibility with LCN 4040XP closer series

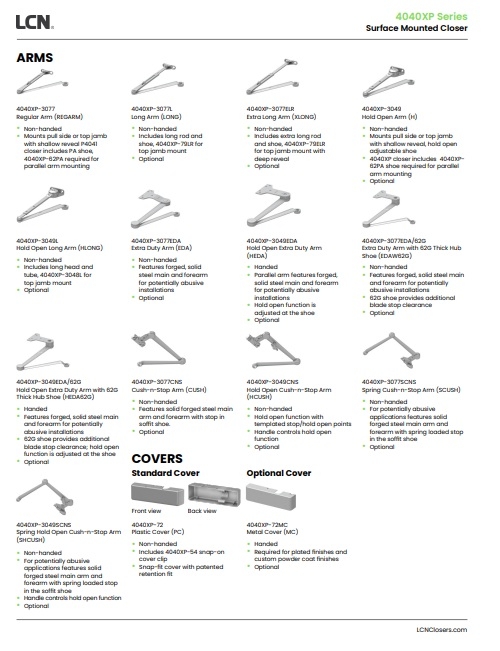

The 3049 arm is specifically designed for the LCN 4040XP series closer body. The 4040XP is a heavy-duty commercial closer with a wide range of arm configurations available across regular arm, hold open, extra duty, CUSH-N-STOP, and other variants. The 3049 is the arm-only hold open accessory, not a complete closer unit. It's ordered when the 4040XP closer body is already mounted and only the arm needs to change or be added.

If the closer body and hold open arm are being ordered together for a new installation, the 4040XP HW/PA is the complete unit that includes both the closer body and hold open arm pre-configured from the factory. The 3049 arm-only option is the correct order for retrofits and replacements on existing 4040XP installations. Confirm the existing closer on the door is the 4040XP series before ordering. The 3049 is not cross-compatible with other LCN closer series that use different arm attachment geometry.

Finishes and installation notes

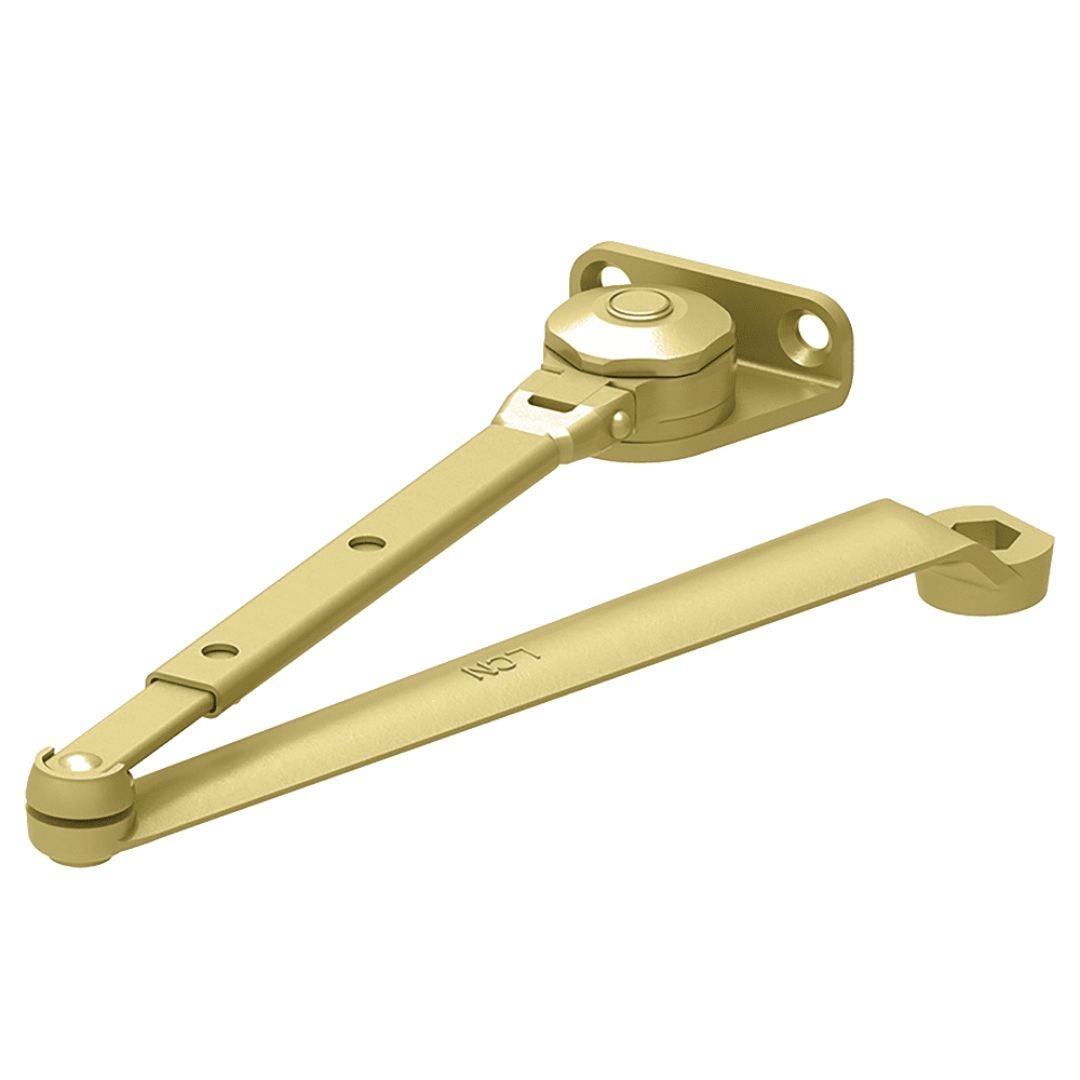

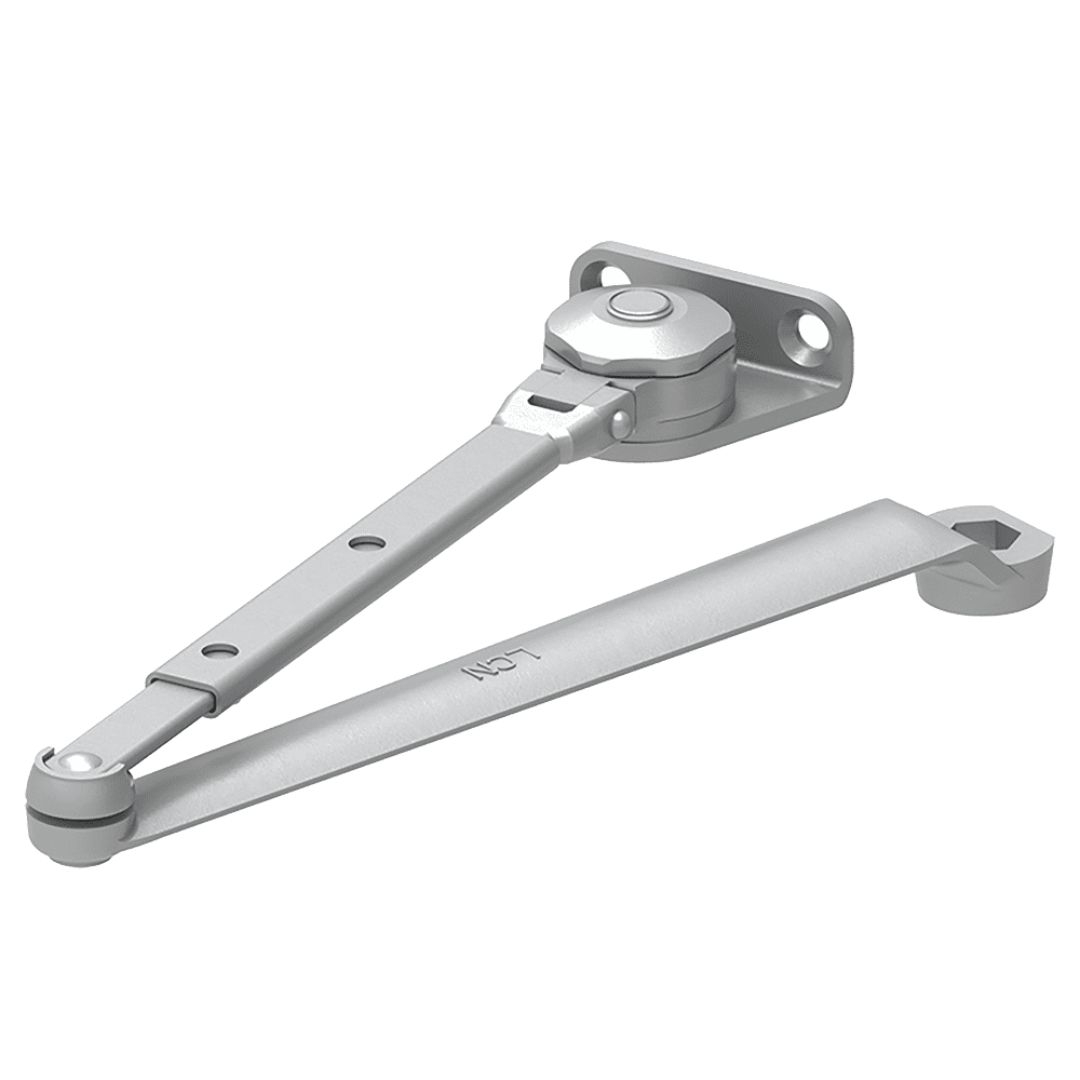

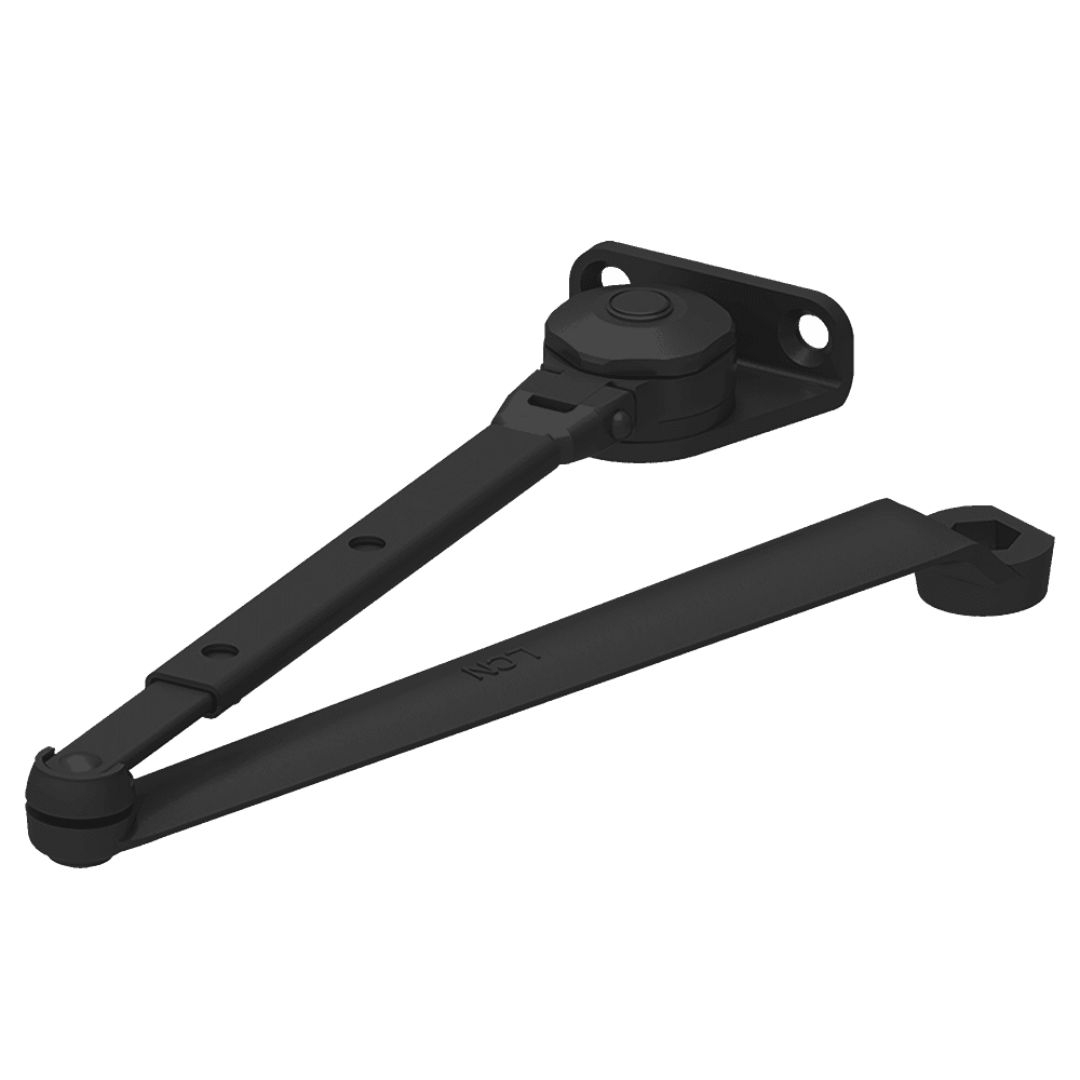

Five finish options are available: AL aluminum, 689 dark bronze painted, 691 light bronze painted, 696 satin brass painted, and 693 black painted. Select the finish that matches the installed 4040XP closer body for a consistent appearance on the door. Painted finishes are standard for the 4040XP series and coordinate with the painted closer body finishes available across the LCN commercial closer line.

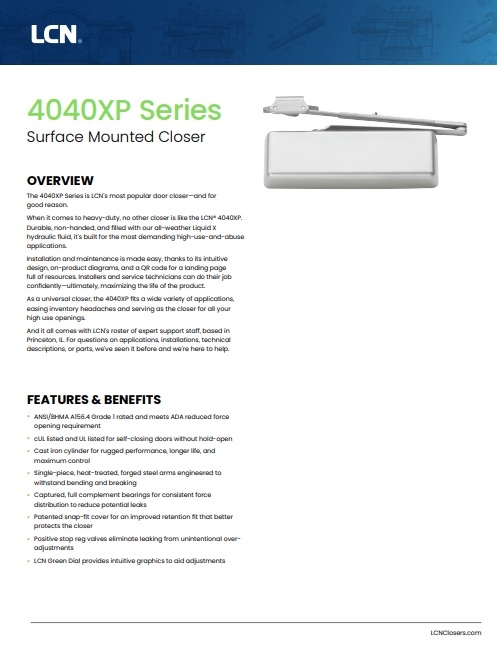

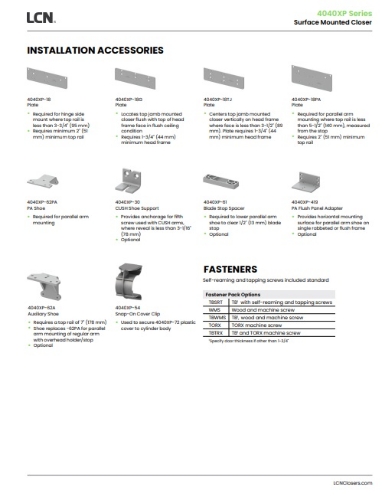

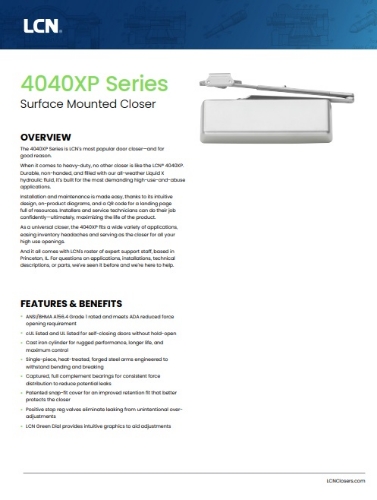

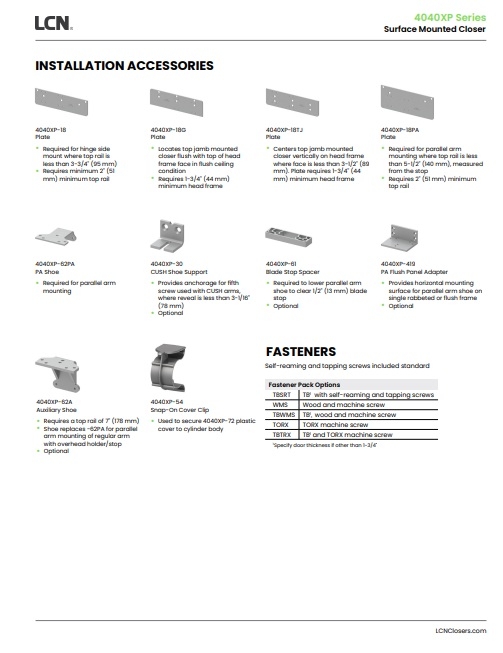

The arm installs on the closer body spindle and door or frame surface using the standard 4040XP mounting pattern. No additional door prep is required for a standard door or frame arm installation. The LCN 4040XP cut sheet is available as a downloadable resource on the product page for reference on mounting dimensions. For the full range of LCN 4040XP parts and accessories, browse the LCN door closer parts catalog. The complete LCN door closers section covers complete closer units in the 4040XP and other series. For the broader selection of standard door closers across all brands, that category is available on this site.

Select your finish and confirm the installed closer is the LCN 4040XP series before ordering. The 3049 is an arm-only accessory and does not include a closer body.
