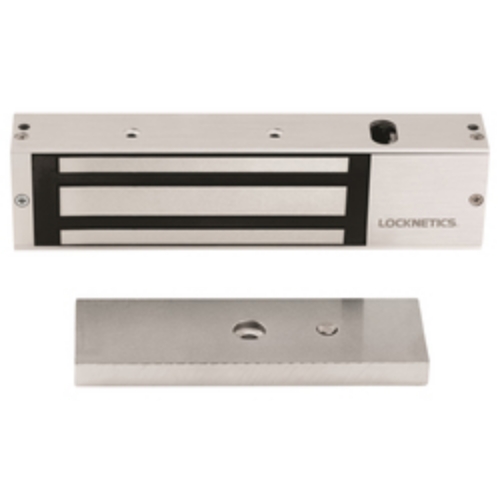

Locknetics MG1200DT Maglock, 1200Lb Holding Force, 12/24VDC, Door Status, Satin Stainless Steel

Locknetics MG1200 Maglock, 1200Lb Holding Force, 12/24VDC, Door Status, Satin Stainless Steel

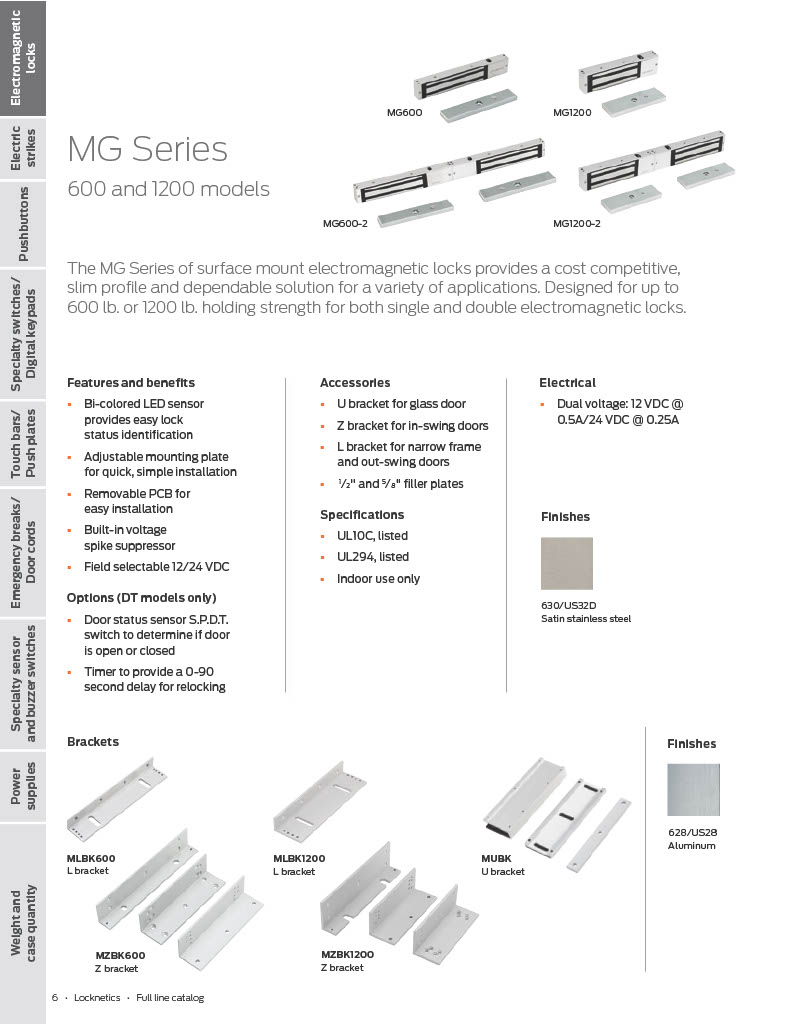

The MG Series of surface mount electromagnetic locks provides a dependable, cost competitive, slim profile solution. It's offered in single and double lock configurations for both standard and Door Status Sensor with Timer (DT) models. The MG Series covers a wide range of applications with holding strengths of up to 600 or 1200 pounds.

Features and benefits:

1200 lb. hold force model for high security applicationsBi-colored LED sensor provides easy lock status identificationAdjustable mounting plate for quick, simple installationRemovable Printed Circuit Board (PCB) for easy configurationBuilt-in voltage spike suppressorField selectable 12/24 VDCStainless steel housing in 630 satin finish5-year limited warrantyDT models only:

Door status sensor for Single Pole Double Throw (SPDT) switch to determine if door is open or closedTimer to provide a 0-90 second delay for relocking Optional accessories: U bracket for glass doorZ bracket for inswinging doorsL bracket for narrow frame and outswinging doorsFiller plates

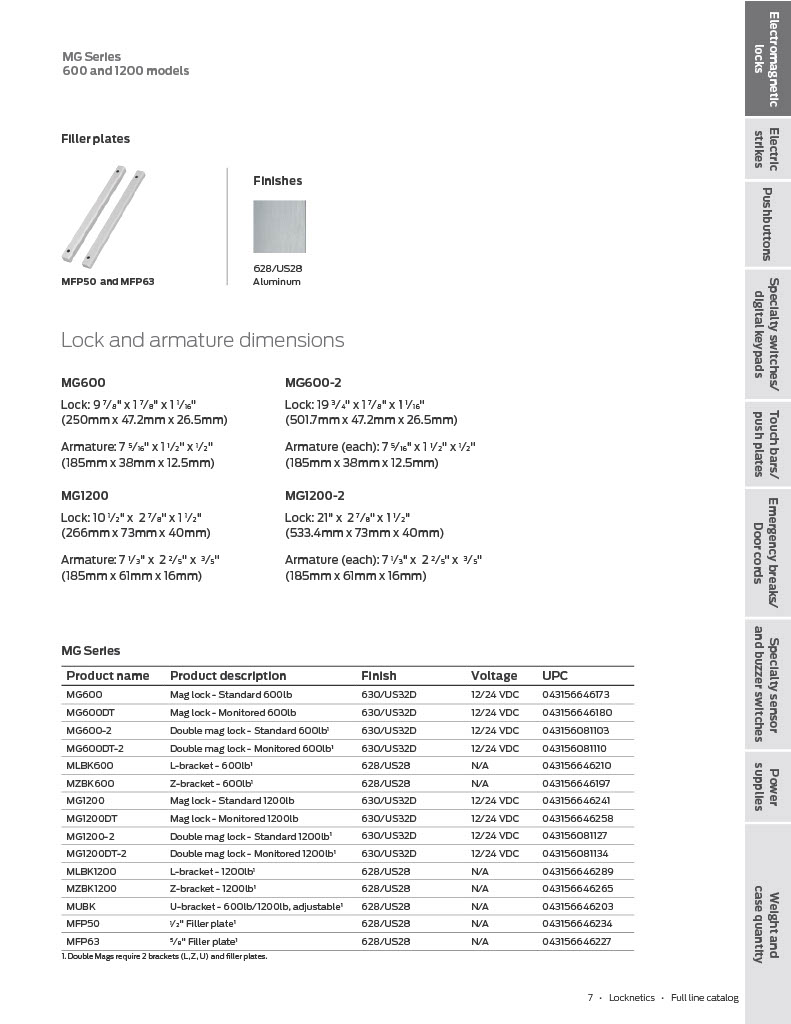

Holding force:600 lb. Input voltage:(field selected) 12/24 VDC Current draw:(amps standard unit) 12 VDC @ 0.5A 24 VDC @ 0.26A BHMA finish:630 Satin Stainless Steel Height:2 7⁄8"  (73mm) 2 7⁄8"  (73mm) Length:10 1⁄2"  (266mm)  21"  (533.4mm) Depth:1 1⁄2" (40mm) Armature dimensions (each):7 1 ⁄3" x  2 2⁄5" x  3⁄5"   (185mm x 61mm x 16mm) Weight:4.97 lbs. Certifications:UL10C listed, UL294 listed, indoor use only
