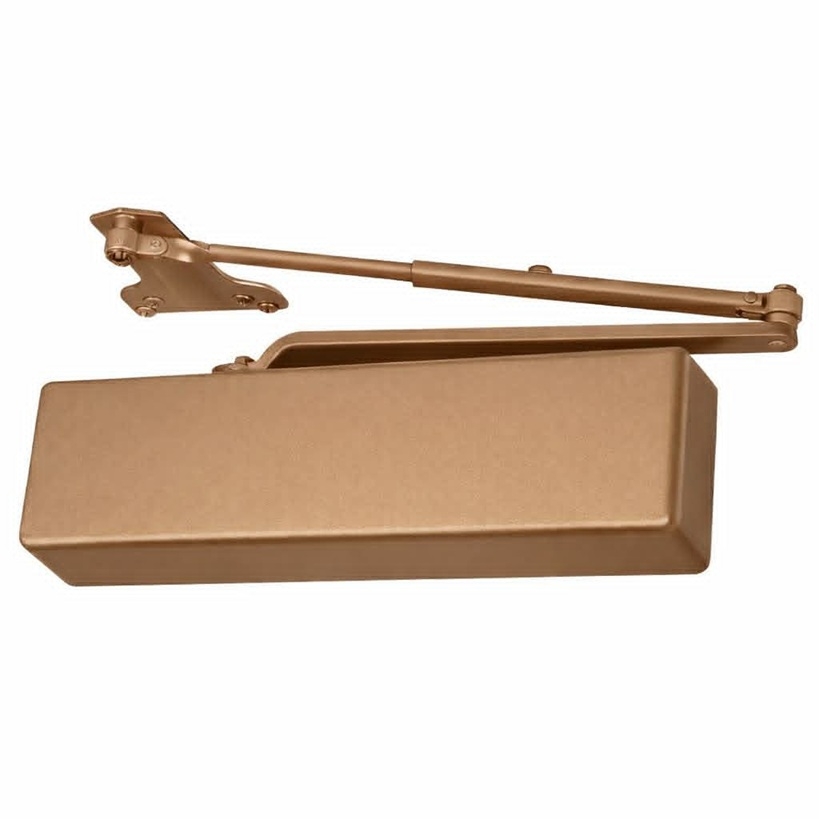

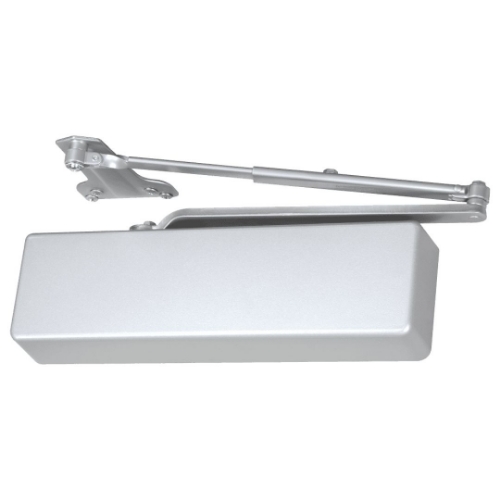

Norton Rixson 7500 Multi-Sized Door Closer

The Norton Rixson 7500 is a multi-sized surface door closer adjustable through the full power range of sizes 1 through 6, certified to ANSI/BHMA A156.4 Grade 1 for institutional and commercial applications. It ships as a tri-style package that includes hardware and brackets for regular arm, top jamb, and parallel arm installations in one box, along with self-drilling screws, a soffit plate, and a full-size template. Non-handed. ADA compliant per ANSI A117.1. UL listed for 3-hour labeled fire door assemblies on non-hold open arm configurations. Ten-year limited warranty.

What multi-sized means and why it matters on a commercial project

A single-size closer is factory-set to one closing force level. Specifying the wrong size for the door weight, width, or use frequency creates a closer that either closes too aggressively or fails to close reliably. The 7500's multi-sized design eliminates that specification risk by covering the full range from Size 1 through Size 6 in a single closer body. Size adjustment happens in the field through the adjustment valve rather than requiring a different unit. This is particularly valuable on retrofit and replacement projects where the exact door condition may differ from what the original hardware schedule specified, and on projects where delivery of a single SKU covers multiple door types across the same building.

Size 1 through Size 6 covers the range from interior lightweight doors to heavy exterior or institutional doors. The 7500 handles all of them with the same closer body, which also simplifies parts and maintenance inventory for facilities managing a large door count.

Valve controls and closing cycle adjustments

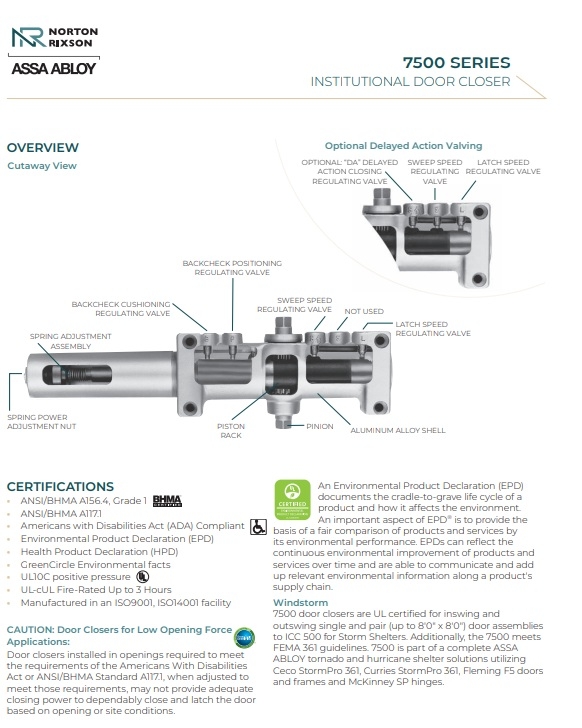

The 7500 uses separate, independent valves for latch speed, sweep speed, and backcheck intensity, which allows each phase of the closing cycle to be tuned independently without affecting the others. Sweep speed controls door movement from the full open position down to approximately 10° from closed. Latch speed controls the final 10° of travel into the closed and latched position. Tuning latch speed separately from sweep speed lets the installer set a fast initial close that slows precisely at the end to avoid slamming.

The backcheck valve activates at approximately 75° of door opening and cushions the door when it's pushed open quickly or forcibly beyond its normal range. An adjustable backcheck positioning valve extends that cushioning zone up to approximately 95°, which is useful on doors where the standard 75° activation point doesn't provide enough deceleration before the door contacts the stop. The rack and pinion mechanism provides smooth, consistent force delivery through the full opening and closing arc without the velocity variation that can occur in piston-only closer designs.

Fluid performance, compliance certifications, and finish options

The 7500 uses NorGlide multi-viscosity hydraulic fluid, formulated to maintain stable viscosity from temperatures as low as -40°F through high heat conditions. Temperature-related closing speed variation is one of the most common field complaints on standard closer installations, particularly on exterior doors that experience significant temperature swings between seasons. The NorGlide formulation minimizes that variation, reducing service calls related to seasonal speed adjustment.

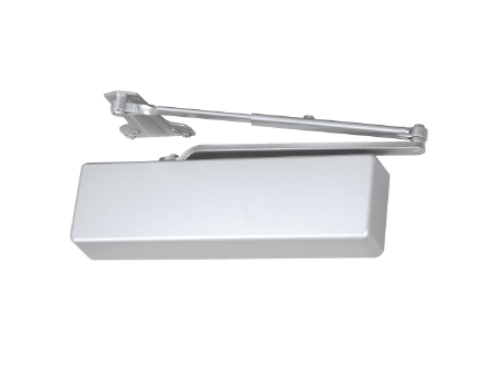

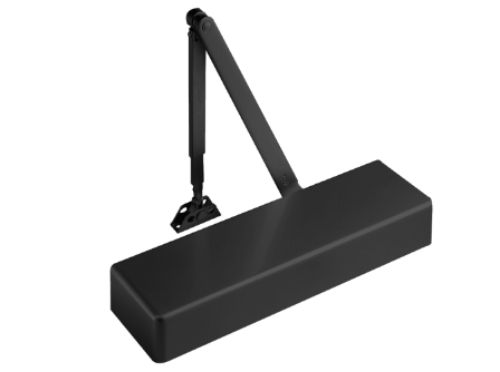

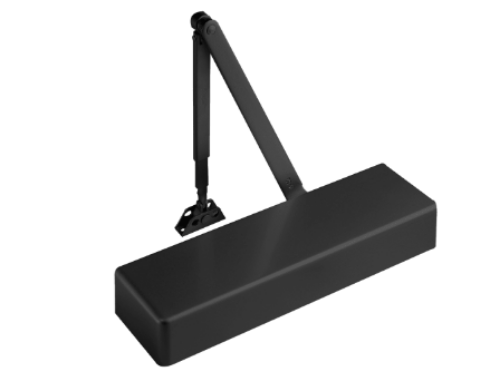

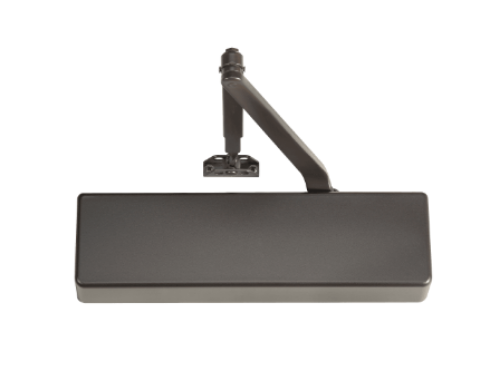

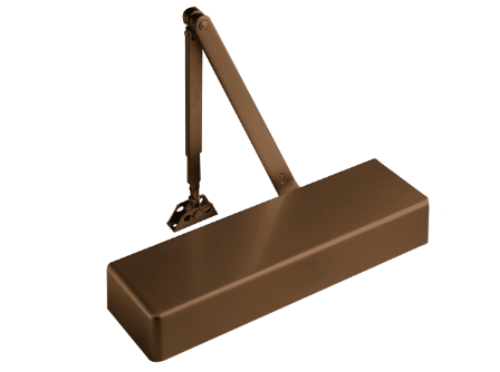

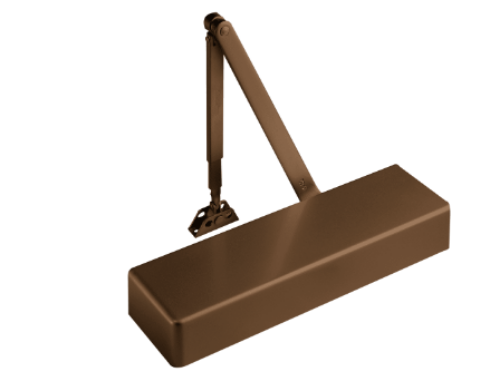

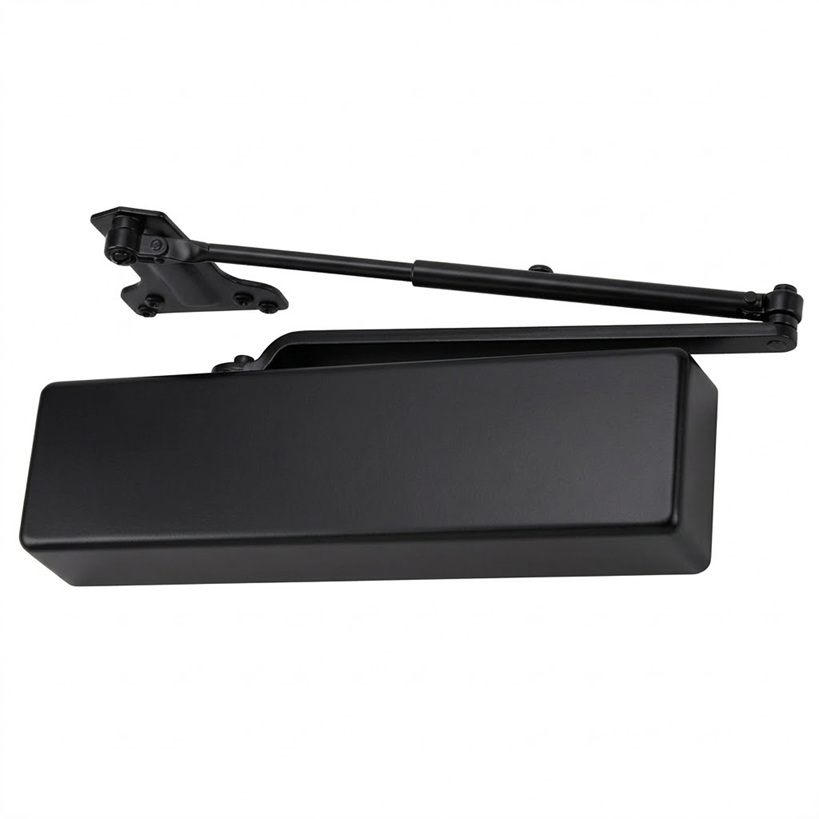

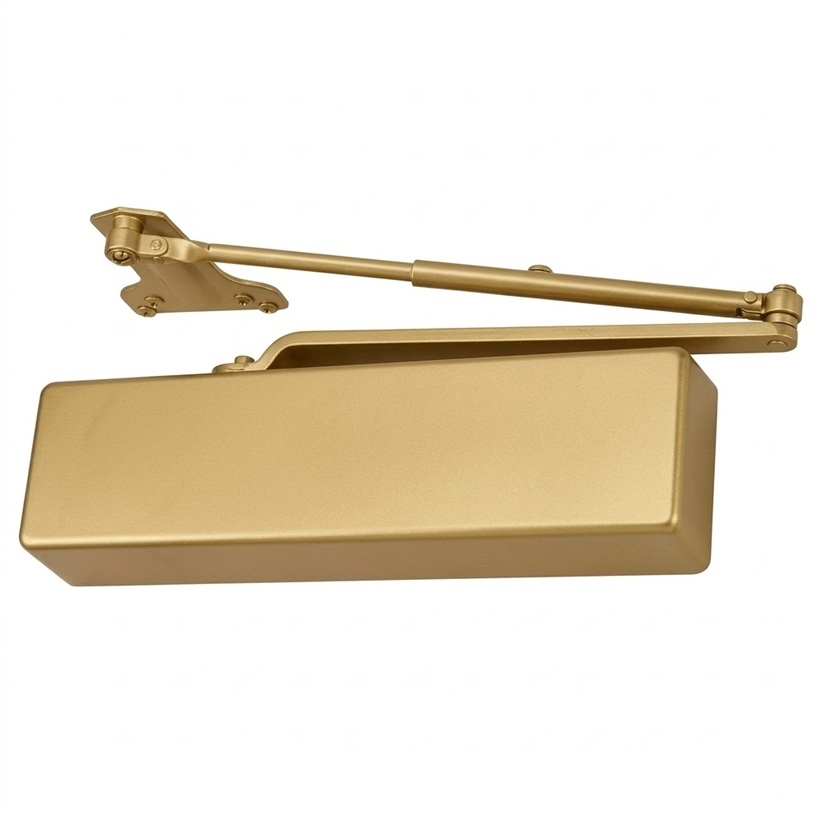

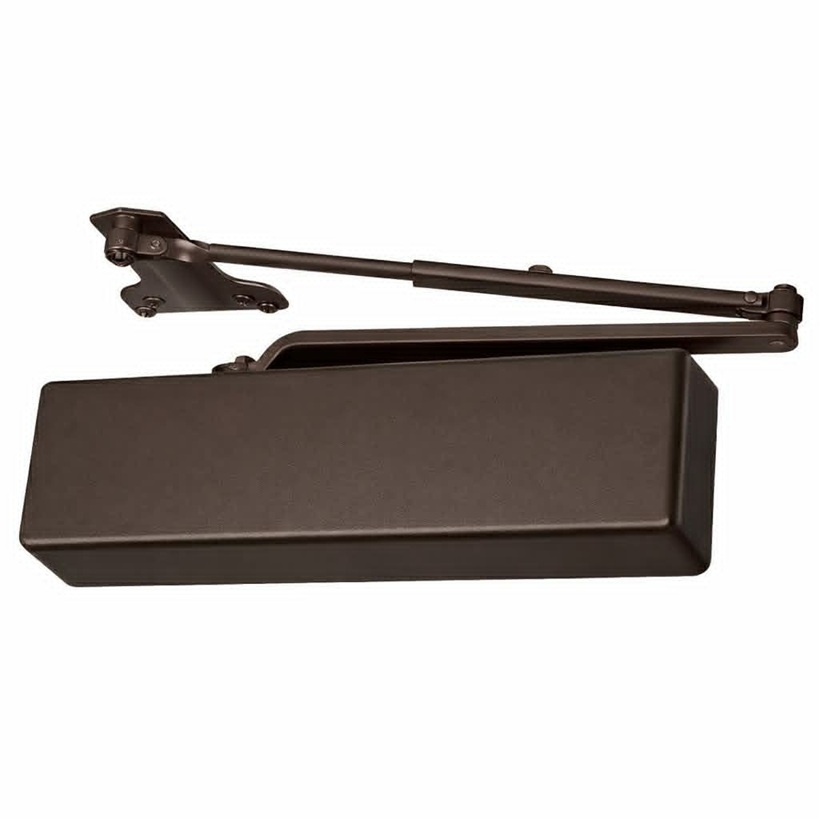

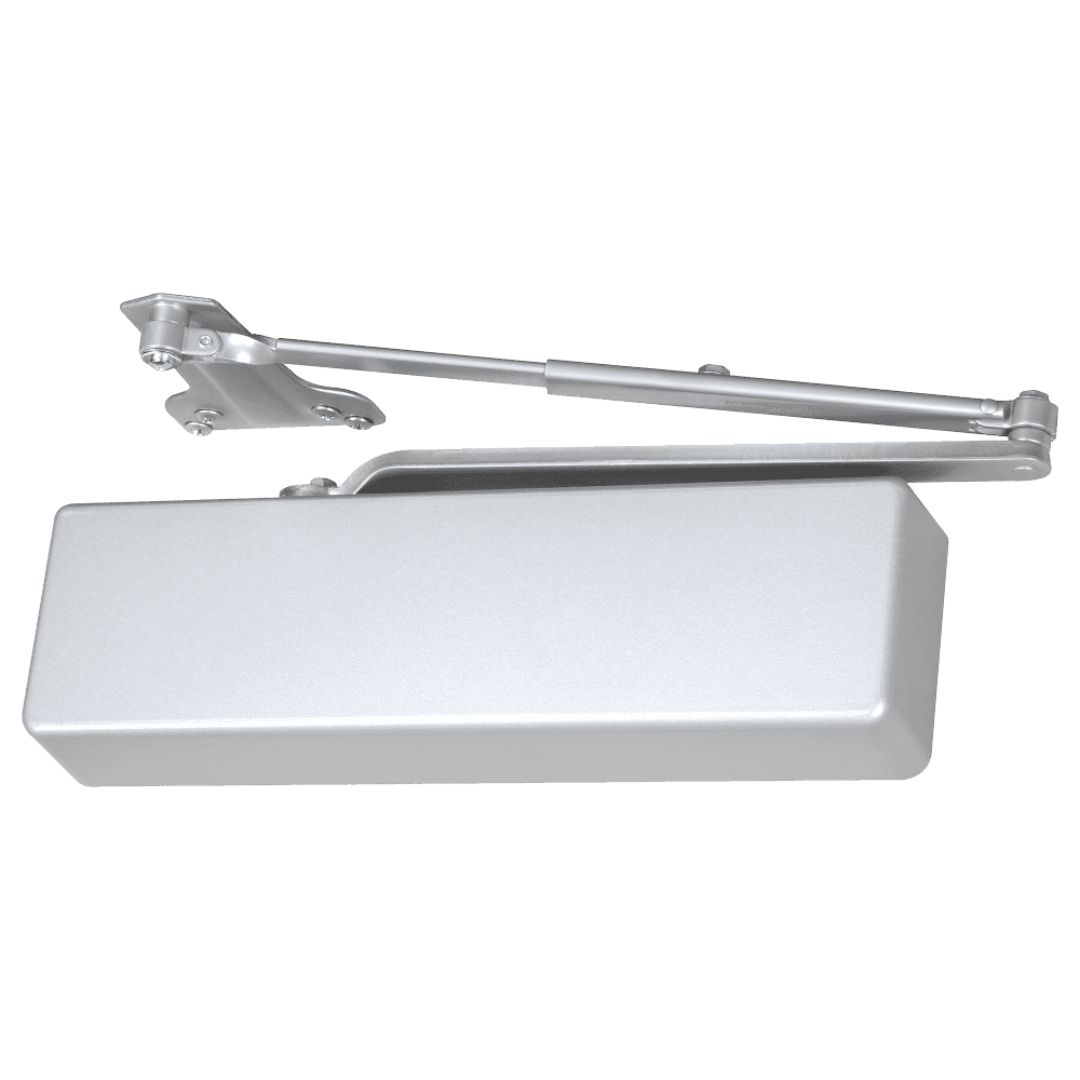

The closer body is aluminum alloy with a molded plastic cover. All 7500 Series closers with non-hold open arms carry UL listing for labeled fire doors to UL10C and UBC-72 for 3-hour assemblies. The 7500 is also NYC MEA approved and manufactured in an ISO 9001 certified facility. Finish options include 689 silver aluminum, 690 dark bronze painted, 691 light bronze painted, 696 satin brass painted, and 693 black painted, plus several electroplated variants. Hold open and delayed action variants (7500H and 7500DA) are available within the series.

For the full range of 7500 Series configurations including hold open and delayed action models, browse the Norton Rixson 7500 Series catalog. The complete Norton Rixson door closers section covers all Norton Rixson surface and concealed closer lines. The broader standard door closers selection across all brands is available on this site.

Select your finish when ordering. Confirm the arm type and mounting configuration needed for the opening before specifying. The tri-style package includes hardware for all three standard mounting applications.
