Norton Rixson H117-3/4 626 Center Hung Pivot Set (1,000 lbs.)

Norton Rixson H117-3/4 626 Center Hung Pivot Set (1,000 lbs.)

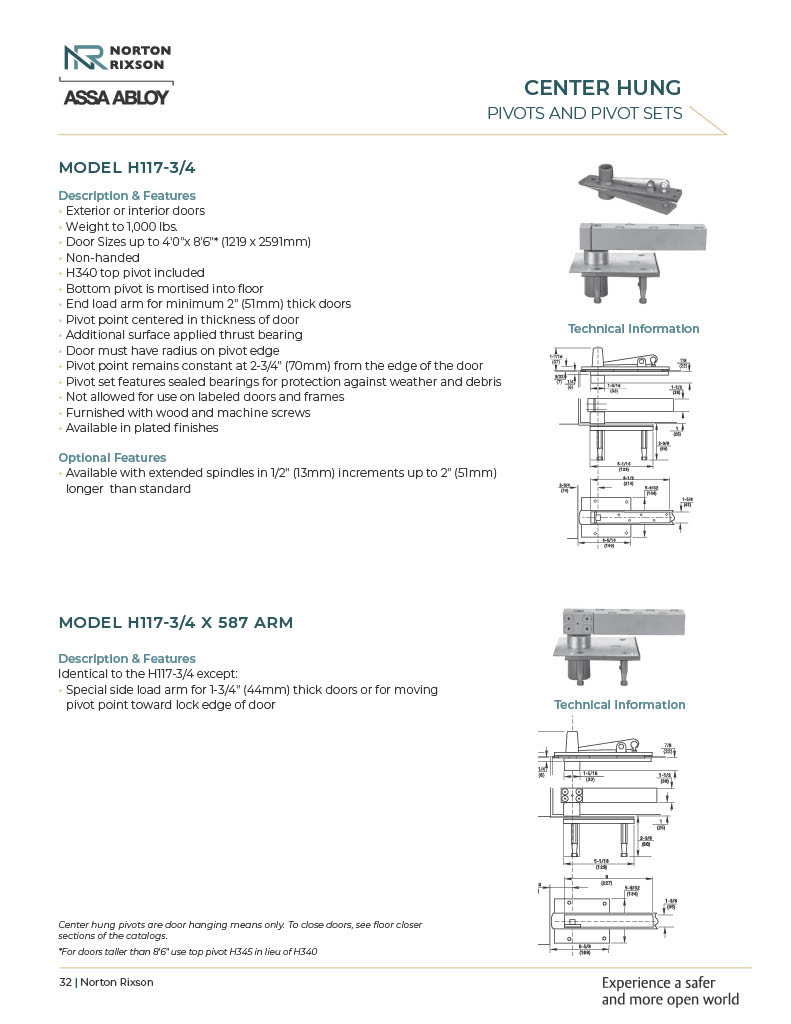

1-Page32-AADSS1009094

Product Details

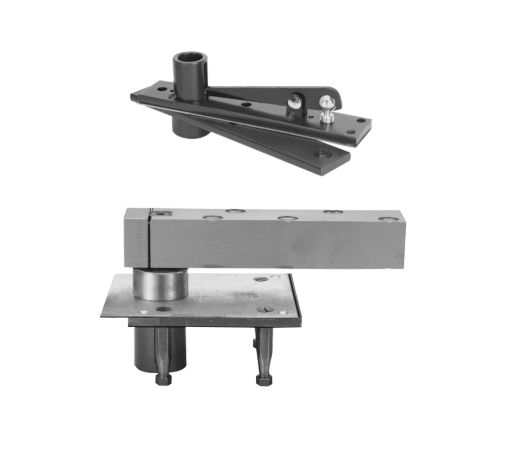

Norton Rixson *H117-3/4 626 Center Hung Pivot Set - Satin Chrome (1,000 lbs.)*

Application:

Exterior or Interior DoorsWeight to 1,000 lbs.Door Sizes up to 4'0"x 8'6"* (1219 x 2591mm)Non-handedHeavy Weight/High Traffic 2" Minimum Door ThicknessCenter hung pivots are door hanging means only. To close doors, see floor closer sections.For doors taller than 8'6" use top pivot H345 in lieu of H340

Description/Features:

Standard top pivot H340 includedBottom pivot is mortised into floorEnd load arm for minimum 2" (51mm) thick doorsPivot point centered in thickness of doorAdditional surface applied thrust bearingDoor must have radius on pivot edgePivot point remains constant at 2-3/4 from the edge of the doorPivot set features sealed bearings for protection against weather and debrisNot allowed for use on labeled doors and framesFurnished with wood and machine screws

Norton Rixson H117-3/4 626 Center Hung Pivot Set (1,000 lbs.)

SKU: H117-3/4 626

In Stock

$2,166.88

About this item

Resources

Catalog

Norton Rixson *H117-3/4 626 Center Hung Pivot Set - Satin Chrome (1,000 lbs.)*

Application:

Exterior or Interior DoorsWeight to 1,000 lbs.Door Sizes up to 4'0"x 8'6"* (1219 x 2591mm)Non-handedHeavy Weight/High Traffic 2" Minimum Door ThicknessCenter hung pivots are door hanging means only. To close doors, see floor closer sections.For doors taller than 8'6" use top pivot H345 in lieu of H340

Description/Features:

Standard top pivot H340 includedBottom pivot is mortised into floorEnd load arm for minimum 2" (51mm) thick doorsPivot point centered in thickness of doorAdditional surface applied thrust bearingDoor must have radius on pivot edgePivot point remains constant at 2-3/4 from the edge of the doorPivot set features sealed bearings for protection against weather and debrisNot allowed for use on labeled doors and framesFurnished with wood and machine screws

H117-3-4 626

Norton Rixson H117-3/4 626 Center Hung Pivot Set (1,000 lbs.)

Product code: H117-3/4 626

In Stock

$2,166.88

$2,166.88

H117-3-4 626

Norton Rixson H117-3/4 626 Center Hung Pivot Set (1,000 lbs.)

Product code: H117-3/4 626

In Stock

$2,166.88

$2,166.88

Norton Rixson H117-3/4 626 Center Hung Pivot Set (1,000 lbs.)

SKU: H117-3/4 626
