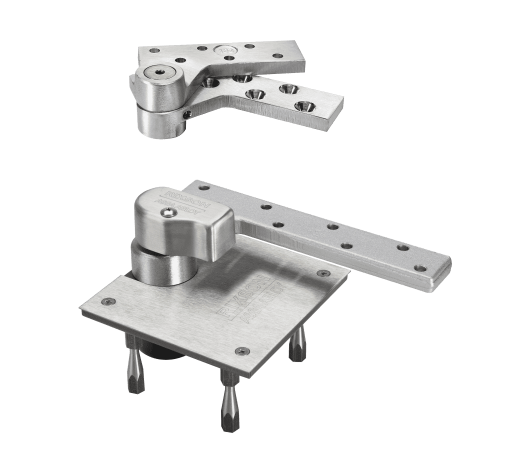

Norton Rixson L117 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (1,750 lbs)

Norton Rixson L117 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (1,750 lbs)

L117 X 1-34 DOOR RH 626

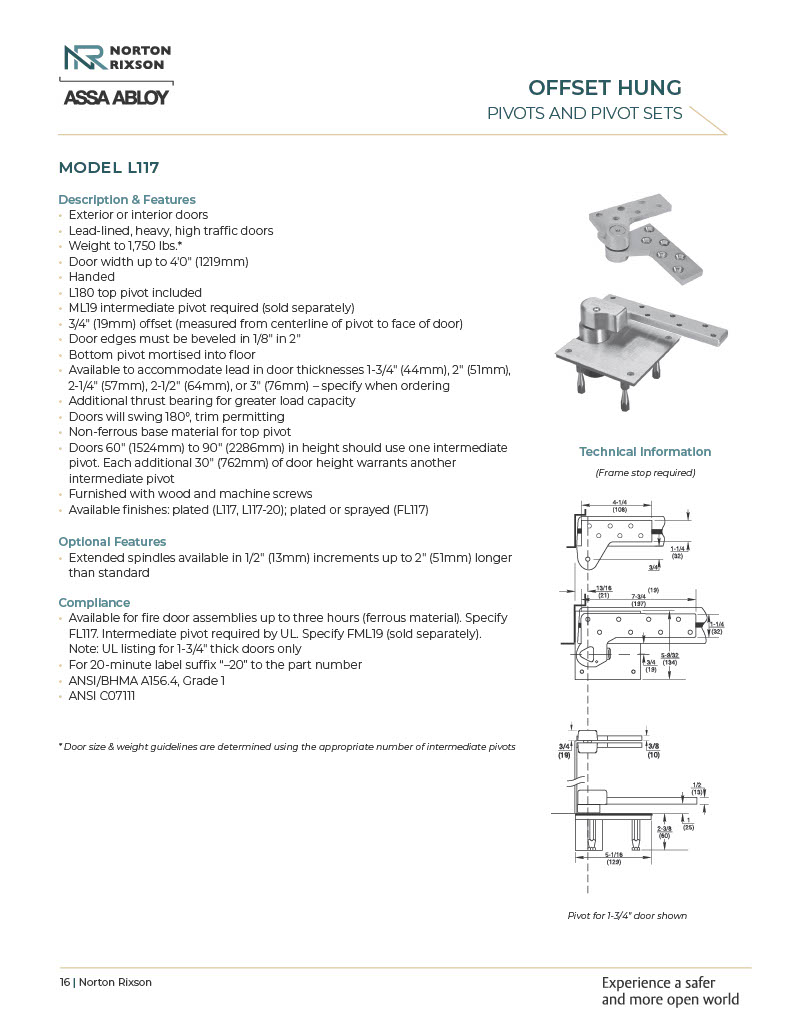

1-Page16-AADSS1009094

Product Details

Norton Rixson* L117 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (1,750 lbs)*

Application:

Exterior or Interior DoorsLead-Lined/Heavy/High Traffic DoorsWeight to 1,750 lbs.*Door Width up to 4'0" (1219mm)HandedDoor size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

Standard top pivot L180 includedML19 intermediate pivot required (order separately)Bottom pivot mortised into floorDoor thicknesses: 1-3/4" (44mm)Additional thrust bearing for greater load capacityDoors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivotNon-ferrous base material for top pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled in 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standardDoors will swing 180 Degree, trim permitting

Model: L117 X 1-3/4 RH 626, L117 X 1-3/4 LH 626, L117X1-3/4RH626, L117RH626

Norton Rixson L117 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (1,750 lbs)

SKU: L117 X 1-3/4 DOOR 626

In Stock

$1,285.28

About this item

Pivots & Pivot Sets are designed to work with the laws of physics, pivots provide the perfect means of hanging a door.

Resources

View

Norton Rixson* L117 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (1,750 lbs)*

Application:

Exterior or Interior DoorsLead-Lined/Heavy/High Traffic DoorsWeight to 1,750 lbs.*Door Width up to 4'0" (1219mm)HandedDoor size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

Standard top pivot L180 includedML19 intermediate pivot required (order separately)Bottom pivot mortised into floorDoor thicknesses: 1-3/4" (44mm)Additional thrust bearing for greater load capacityDoors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivotNon-ferrous base material for top pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled in 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standardDoors will swing 180 Degree, trim permitting

Model: L117 X 1-3/4 RH 626, L117 X 1-3/4 LH 626, L117X1-3/4RH626, L117RH626

L117 X 1-34 DOOR RH 626

Norton Rixson L117 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (1,750 lbs)

Product code: L117 X 1-3/4 DOOR 626

In Stock

$1,285.28

$1,285.28

L117 X 1-34 DOOR RH 626

Norton Rixson L117 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (1,750 lbs)

Product code: L117 X 1-3/4 DOOR 626

In Stock

$1,285.28

$1,285.28

Norton Rixson L117 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (1,750 lbs)

SKU: L117 X 1-3/4 DOOR 626

Related products

Ives 7212-SET, 3/4" Offset Pivot Set

Product code: W561BD

In Stock

$429.50

$234.08

Ives 7212V-SET, 3/4" Offset Pivot Set

Product code: W561BD

In Stock

$527.50

$287.49

Ives 7215-SET, 3/4" Offset Pivot Set

Product code: W561BD

In Stock

$581.40

$316.86

Ives 7215F-SET, 3/4" Offset Fire Rated Pivot Set

Product code: W561BD

In Stock

$886.00

$482.87

Ives 7222-SET 3/4" Offset Pivot Set

Product code: W561BD

In Stock

$429.50

$234.08

Ives 7226-SET 3/4" Offset Pivot Set

Product code: W561BD

In Stock

$553.60

$301.71

Ives 7226F-SET, 3/4" Offset Fire Rated Pivot Set

Product code: W561BD

In Stock

$803.00

$437.64

Ives 7227-SET, 3/4" Offset Pivot Set

Product code: W561BD

In Stock

$970.50

$528.92

Ives 7244F-SET, 1-1/2" Offset Fire Rated Pivot Set

Product code: W561BD

In Stock

$1,077.60

$587.29

Ives 7253-SET Center Hung Pivot Set

Product code: W561BD

In Stock

$509.60

$277.73

Related Brands

Picture for manufacturer Adams Rite

Picture for manufacturer Alarm Lock

Picture for manufacturer Arrow

Picture for manufacturer BEST

Picture for manufacturer Cal-Royal

Picture for manufacturer Corbin Russwin

Picture for manufacturer Detex

Picture for manufacturer Dormakaba

Picture for manufacturer Falcon

Picture for manufacturer Hager

Picture for manufacturer Ives

Picture for manufacturer ACSI

Picture for manufacturer American Lock

Picture for manufacturer Bobrick

Picture for manufacturer Codelocks

Picture for manufacturer Don-Jo

Picture for manufacturer Folger Adam

Picture for manufacturer Glynn Johnson

Picture for manufacturer HES

Picture for manufacturer Jackson

Picture for manufacturer LCN

Picture for manufacturer Pemko

Picture for manufacturer Rockwood

Picture for manufacturer Schlage

Picture for manufacturer Securitron

Picture for manufacturer Soss

Picture for manufacturer Trimco

Picture for manufacturer Von Duprin

Picture for manufacturer S.Parker

Picture for manufacturer Tell Manufacturing

Picture for manufacturer RCI

Picture for manufacturer Aiphone

Picture for manufacturer Trine

Picture for manufacturer Dynalock

Picture for manufacturer NGP

Picture for manufacturer SDC

Picture for manufacturer Keedex

Picture for manufacturer Kaba Mas

Picture for manufacturer BEA

Picture for manufacturer PHI Precision

Picture for manufacturer ROFU

Picture for manufacturer Alarm Controls

Picture for manufacturer Imperial-USA

Picture for manufacturer Nortek - Linear

Picture for manufacturer Abus

Picture for manufacturer Altronix

Picture for manufacturer PDQ

Picture for manufacturer Emtek

Picture for manufacturer Camden

Picture for manufacturer Master Lock

Picture for manufacturer Bosch

Picture for manufacturer MARKS USA

Picture for manufacturer TownSteel

Picture for manufacturer Design Hardware

Picture for manufacturer Schlage Electronics

Picture for manufacturer Locknetics

Picture for manufacturer ILCO

Picture for manufacturer McKinney

Picture for manufacturer Norton Rixson

Picture for manufacturer Command Access

Picture for manufacturer KSP

Picture for manufacturer CENTRIOS

Picture for manufacturer Accentra (Yale)

Recently viewed products

Falcon F19R-KIL-IC Fire Rated Rim Panic Exit Device, 914 Key-in-lever Lever Rose Trim, SFIC Core

Product code: W561BD

In Stock

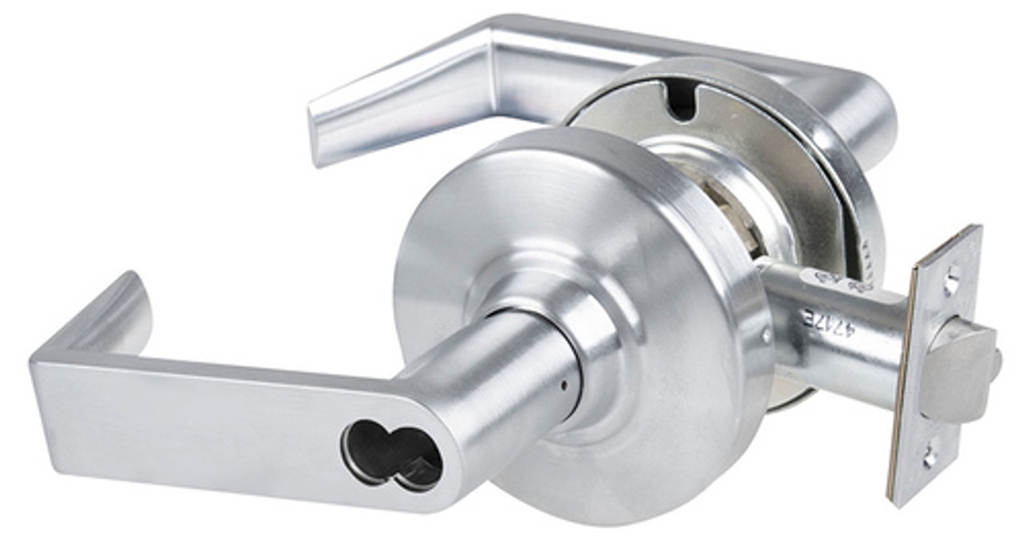

Picture of Schlage ALX50B RHO Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Rhodes Lever, SFIC Less Core

Schlage ALX50B RHO Grade 2 Office Cylindrical Lock with Field Selectable Vandlgard, Rhodes Lever, SFIC Less Core

Product code: W561BD

In Stock

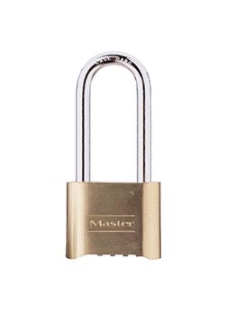

Master Lock 175LH 2 In. Wide Solid Body, Hardened Steel Shackle, 4-digit Set-Your-Own Combination, Combination Change Key Provided, 2-1/4 Shackle Clearance
