PDQ MR128, J Series Grade 1 Extra Heavy Duty Institution with Deadbolt Mortise Lock

PDQ MR128, J Saries Grade 1 Extra Heavy Duty Institution with Deadbolt Mortise Lock

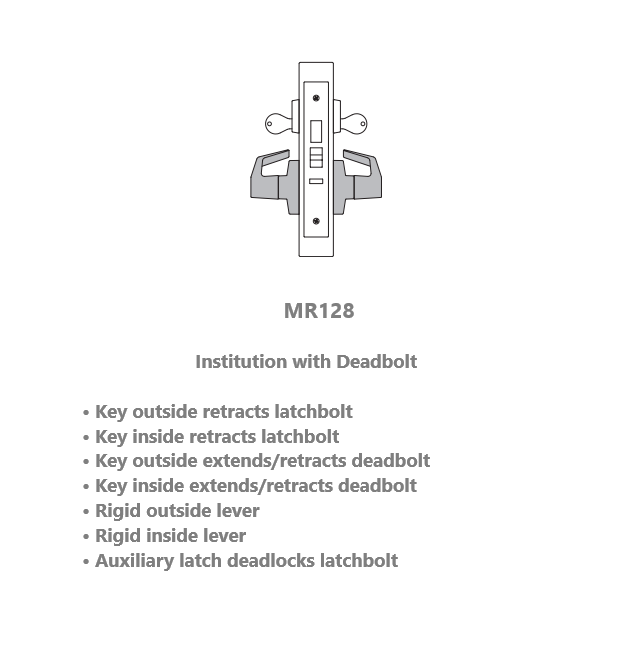

Function:Institution with Deadbolt.

Key outside retracts latchbolt.Key inside retracts latchbolt.Key outside extends/retracts deadbolt.Key inside extends/retracts deadbolt.Rigid outside lever.Rigid inside lever.Auxiliary latch deadlocks latchbolt. MR series specs.

Built to Last. Lifetime Warranty.

Cycled tested - Over 12X BHMA standard and counting!

Versatile - single cam for all locking functions.

Available in multiple escutcheon widths. DOOR PREP:   Fits standard ANSI/BHMA A156.115 for Mortise Locks. FOR DOORS:  1-3/4" standard, 2" and 2-1/4" special order from factory. BACKSET:  2-3/4". CASE:  12-gauge cold rolled steel mechanism. Dichromated for corrosion resistance. ARMOR FRONT:  Beveled 1/8" on 2". 625 (US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material. STRIKE:  Handed Curved Lip Strike. 625 (US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material. LATCHBOLT:  3/4" Throw. Investment Cast Stainless Steel. Anti-friction. HANDING:  Most functions field reversible. Specify handing for strikes. KEYS: Two (2) per Lock. KEYWAYS: SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers. INTERCHANGEABLE CORE: 6 or 7-pin. Compatible with Best, Falcon & Arrow Large Format IC Cores compatible with Schlage.. CYLINDER: 6 or 7-pin Brass Mortise Cylinder. KEYING: Options: MK, CMK or GMK. Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA). Can be keyed into existing master key systems. DEADBOLT: 1" Throw. Investment Cast Stainless SteelF trim - forged brass levers, escutcheons and turns. TRIM: J & JW trim - stainless steel escutcheon and levers, PHL, Mem, MIA and BSN are solid levers, ORL, DAL and CHI are tube levers. Ball Knobs are wrought. FINISHES:  F Series Trim: 626 (US26D) Satin Chrome. J and JW Series Trim: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 629 (US32) Bright Stainless Steel, 630 (US32D) Satin Stainless Steel. Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series. CERTIFICATIONS, LISTINGS, COMPLIANCES:  UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0". Certified to ANSI/BHMA 156.13-2005 Operational Grade 1 and Security Grade 1. Florida Building Code HVHZ (High Velocity Hurricane Zone) listed, FL21376. Maximum design load rating: 80 PSF for single doors 3' x 7' (functions with deadbolts only). Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. Wide Series Escutcheon Trim complies with Unified Facilities Guide Specification 08 71 00 (August 2008). Meets Federal Specification FF-H-106C. WARRANTY:  Lifetime Limited Warranty. COUNTRY OF ORIGIN:  Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act. Note:Heavy Duty Spindle for High Abuse situations is available for F trim.

PDQ MR128, MR128 PDQ, PDQMR128, MR128PDQ, PDQMR128J,PDQMR128PDQJ
