Rixon 147 x 1-1/2OS 626 Pivot Set, 1-1/2 Offset, Satin Chrome

Rixon 147 x 1-1/2OS 626 Pivot Set, 1-1/2 Offset, Satin Chrome

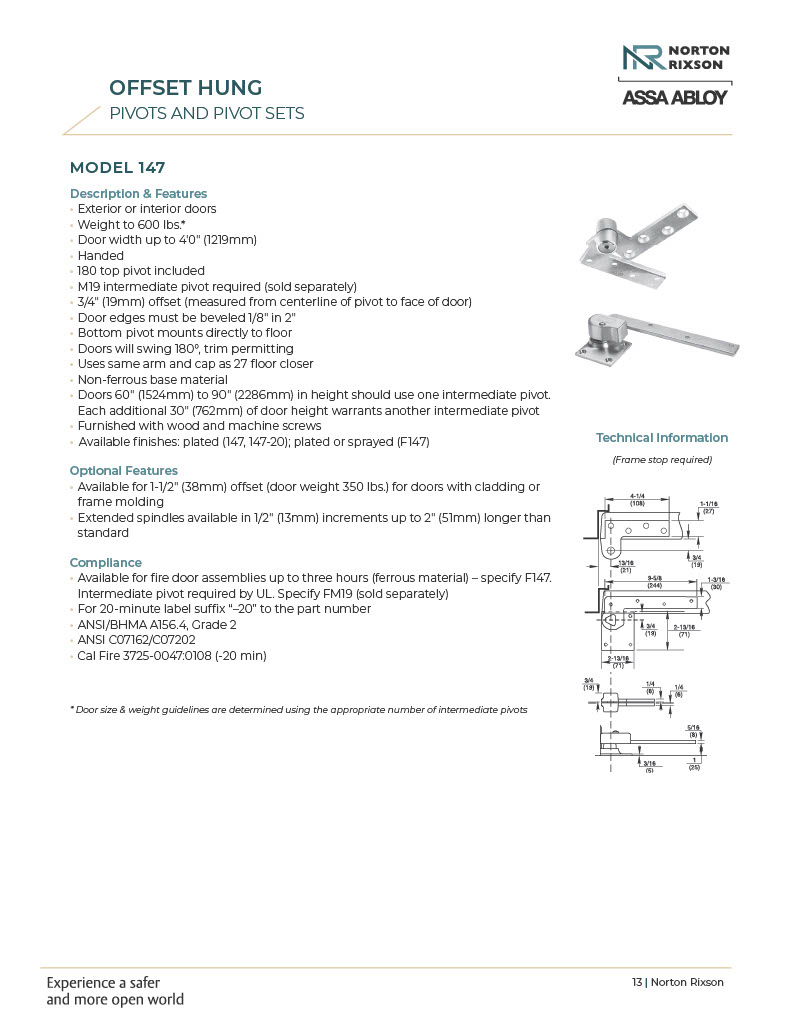

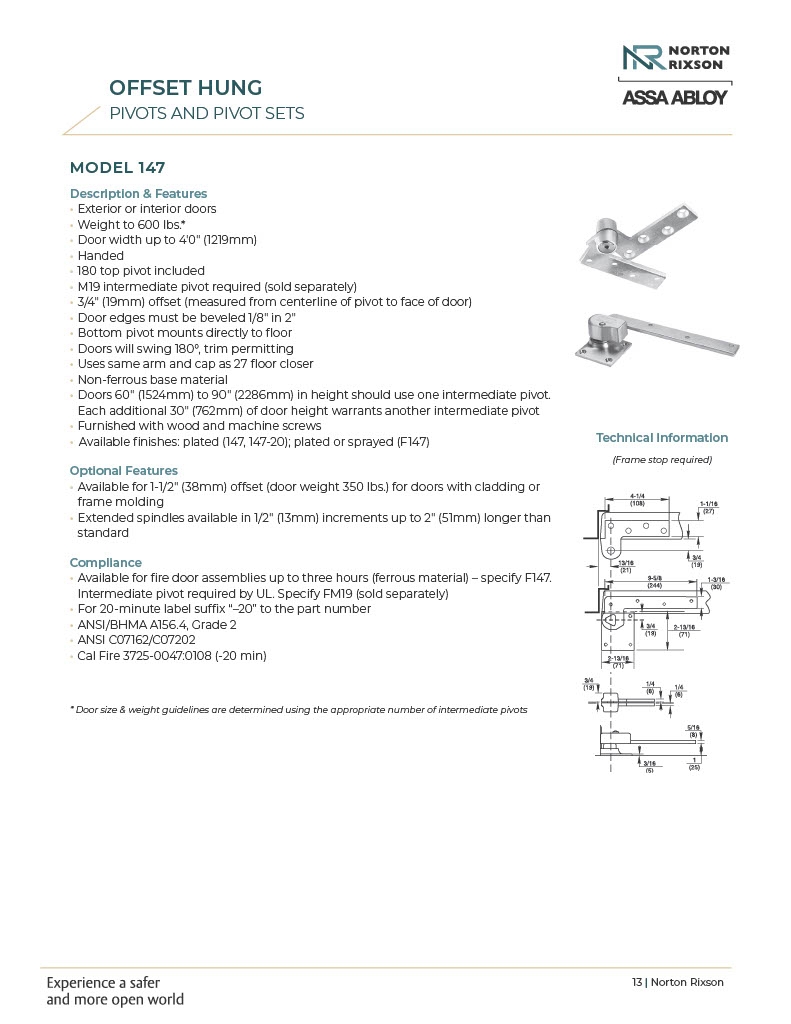

1-Page13-AADSS1009094

Product Details

Rixon 147 x 1-1/2OS 626 Pivot Set, 1-1/2 Offset, Satin Chrome

Application:

? Exterior or Interior Doors

? Weight to 350 lbs.*

? Door Width up to 4'0" (1219mm)

? Handed

? Standard-Duty Pivot Set

Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

? Standard top pivot 180 included

? M19 intermediate pivot required (order separately)

? Bottom pivot mounts directly to floor

? Uses same arm and cap as 27 floor closer

? Non-ferrous base material

? Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot

? 1-1/2" (38mm) offset (for doors with cladding or frame molding) (measured from centerline of pivot to face of door)

? Door edges must be beveled 1/8" in 2"

? Furnished with wood and machine screws

? Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard

? Doors will swing 180?, trim permitting

Model:147 x 1-1/2OS RH 626, 147 x 1-1/2OS LH 626, 14x1-1/2OSLH626, 147 x 1-1/2OS-RH-626

**

Rixon 147 x 1-1/2OS 626 Pivot Set, 1-1/2 Offset, Satin Chrome

SKU: 147 x 1-1/2OS 626

In Stock

$745.92

About this item

Pivots & Pivot Sets are designed to work with the laws of physics, pivots provide the perfect means of hanging a door.

Resources

View

Rixon 147 x 1-1/2OS 626 Pivot Set, 1-1/2 Offset, Satin Chrome

Application:

? Exterior or Interior Doors

? Weight to 350 lbs.*

? Door Width up to 4'0" (1219mm)

? Handed

? Standard-Duty Pivot Set

Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

? Standard top pivot 180 included

? M19 intermediate pivot required (order separately)

? Bottom pivot mounts directly to floor

? Uses same arm and cap as 27 floor closer

? Non-ferrous base material

? Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot

? 1-1/2" (38mm) offset (for doors with cladding or frame molding) (measured from centerline of pivot to face of door)

? Door edges must be beveled 1/8" in 2"

? Furnished with wood and machine screws

? Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard

? Doors will swing 180?, trim permitting

Model:147 x 1-1/2OS RH 626, 147 x 1-1/2OS LH 626, 14x1-1/2OSLH626, 147 x 1-1/2OS-RH-626

**

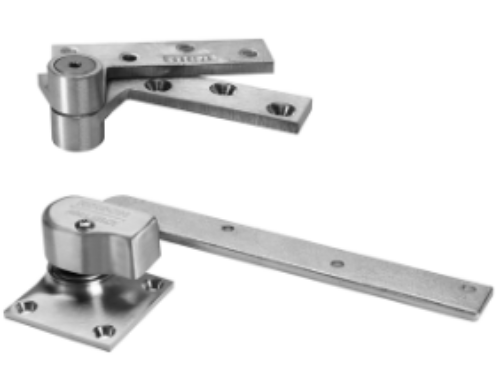

rixson147

Rixon 147 x 1-1/2OS 626 Pivot Set, 1-1/2 Offset, Satin Chrome

Product code: 147 x 1-1/2OS 626

In Stock

$1,332.00

$745.92

rixson147

Rixon 147 x 1-1/2OS 626 Pivot Set, 1-1/2 Offset, Satin Chrome

Product code: 147 x 1-1/2OS 626

In Stock

$1,332.00

$745.92

Rixon 147 x 1-1/2OS 626 Pivot Set, 1-1/2 Offset, Satin Chrome

SKU: 147 x 1-1/2OS 626
