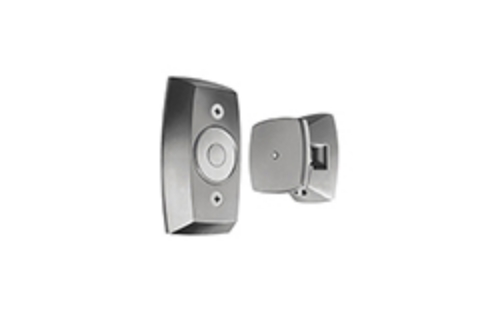

Sargent 1560-EN Electromagnetic Door Holder - Aluminum, Surface Mount

Sargent 1560-EN Electromagnetic Door Holder - Aluminum, Surface Mount

Product Details

Sargent 1560-EN Electromagnetic Door Holder - Aluminum, Surface Mount

Designed for use with self-closing fire and smoke barrier doorsUse independently or with any fire or smoke detector systemWhen de-activated, helps control the spread of fire and smoke by automatically releasing doors from an open position for simultaneous closingFail-safe device: When electrical power fails, doors will release to close automaticallyConforms to devices outlined in National Fire Protection Agency Standards Nos. 80 and 101Designed to work with SARGENT door closersRecommended vertical location is on top rail of door – within 6" of lock stile edgeWhen applications will not allow wall or floor magnets, consult SARGENT’s FireGuard catalog for our line of Electronic Closer HoldersFits standard outlet boxHolding force – 35 lbs typicalVoltage and Current: 120 VAC, 60 Hz., .020 amp 24 VAC/DC, 60 Hz., .020 amp 12 VDC, .040 ampFinish – EN - Meets ANSI/BHMA A156.15UL Listed to U.S. and Canadian safety standards1" (25mm) extension p/n 52-2573 included standard to increase armature projection to 2-5/8" (67mm)
