Schlage ND60BD OME - Grade 1 Vestibule Lock, Omega Lever, SFIC Prep Less Core

Schlage ND60BD OME- Heavy Duty Vestibule Lever Lock, Accepts SFIC Core  - Small format IC core - less core, Omega Style

(accepts "Best" Interchangable cores, core not included)

Vestibule Lock -ANSI -F88

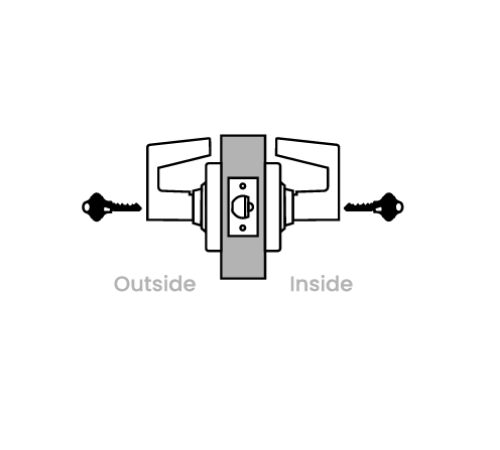

Latch retracted by key from outside when the outside lever is unlocked by key in inside lever. Inside lever is always unlocked.

Lever Styles: Omega (OME)

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

Keying: 6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.

The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately (please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available (please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors (please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

ND60PD - 6-Pin conventional (standard)

ND60LD - Conventional - Less Cylinder

ND60BD- Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND60JD - Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Model: Schlage, ND60BD, ND60, ND60BDOME605,  ND60BDOME606,  ND60BDOME612,  ND60BDOME613,  ND60BDOME619, ND60BDOME622,  ND60BDOME625,  ND60BDOME626, ND60BDOME626AM, ND60BDOME643E, 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643E.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
