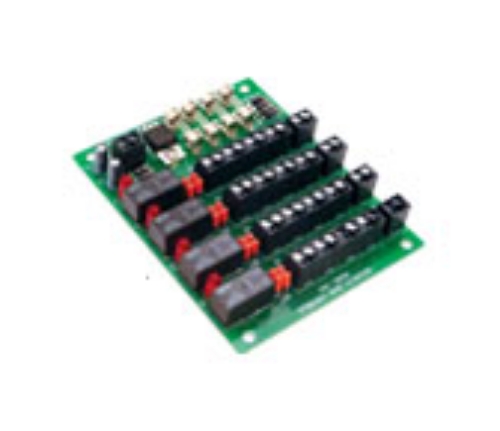

SDC CR4 Door Control Four Station Relay Module

CR-4
CR-4
naxt
prev

Product Details

SDC CR4 Module, Control Relays, (4) NO Inputs, (4) Fused SPDT Outputs, (4) SPDT Dry Contact, 5 Amp

• Allows for independent control of up to four separate electrified locking devices

• Distributes the primary DC output of any 600 series power supply into four, individually controlled relay DPDT outputs

• Each output is individually fused, and selectable as wet or dry

• LED’s provide relay activation status

Specifications:

Voltage Input: 120 mA @ 12/24VDC

Inputs & Outputs: (4) Fused, 2A SPDT dry outputs or voltage outputs, (4) 2A SPDT dry outputs or voltage outputs, (4) N.O. dry trigger inputs

Dimensions: 4.25" L x 3.375" W

SDC CR4 Door Control Four Station Relay Module

SKU: CR4

In Stock

$138.72

About this item

Door Control Relays Modules ensure compatibility of access hardware components and simplify system installation and troubleshooting.

Resources

SDC CR4 Module, Control Relays, (4) NO Inputs, (4) Fused SPDT Outputs, (4) SPDT Dry Contact, 5 Amp

• Allows for independent control of up to four separate electrified locking devices

• Distributes the primary DC output of any 600 series power supply into four, individually controlled relay DPDT outputs

• Each output is individually fused, and selectable as wet or dry

• LED’s provide relay activation status

Specifications:

Voltage Input: 120 mA @ 12/24VDC

Inputs & Outputs: (4) Fused, 2A SPDT dry outputs or voltage outputs, (4) 2A SPDT dry outputs or voltage outputs, (4) N.O. dry trigger inputs

Dimensions: 4.25" L x 3.375" W
