Securitron BPSM-24-6 - Power Supply 24VDC - 6A with Status Monitor

Securitron BPSM-24-6 - Power Supply 24VDC - 6A with Status Monitor

Product Details

Securitron BPSM-24-6 - Power Supply 24VDC - 6A with Status Monitor

Features:

8 polyswitch (PTC) 2A output breakersSlide switches connect or disconnect load from powerLED indication (AC and DC) showing power supply statusEmergency low current fire release terminalsAC status output terminals, SPDT, 3 AmpBattery status output terminals, Form "C" SPDT, 3 AmpLine voltage and DC fusesSealed lead acid-gel battery charging capability (battery not included)During battery operation, if voltage drops below 10.4VDC for 12VDC (20.8VDC for 24VDC) the battery will automatically disconnect to prevent possible damage to the systemClean linear power for flawless operation with all sensitive active electronic componentsMagnaCare Lifetime Replacement No Fault WarrantyUL Listed

Input Voltage:120VAC

Voltage and Capacity:24VDC - 6A

Operating Temperature:+32 to +105F [0 to +40C]

Monitoring:110VAC Status, Battery Status

Shipping Weight:28 lbs. [12.70 kg]

Model:BPSM246

Securitron BPSM-24-6 - Power Supply 24VDC - 6A with Status Monitor

Name: Securitron BPSM-24-6 - Power Supply 24VDC - 6A with Status Monitor
SKU: BPSM246
Price: 1212.39 USD
Availability: InStock

SKU: BPSM246

In Stock

Chat

$1,212.39

About this item

BPSM Self Monitoring Power Supply Clean Linear Output with Built-In Supervision.The BPSM self-monitoring power supply delivers all the benefits of linear technology with battery supervision for real time power status information.This unit is right choice when interfacing to fir alarm system with auxiliary relays that can’t handle the full current potential of the power supply, or when monitoring power systems for AC failure or DC battery failure BPSM status LED indicators and status output terminals offer advanced protection.

Resources

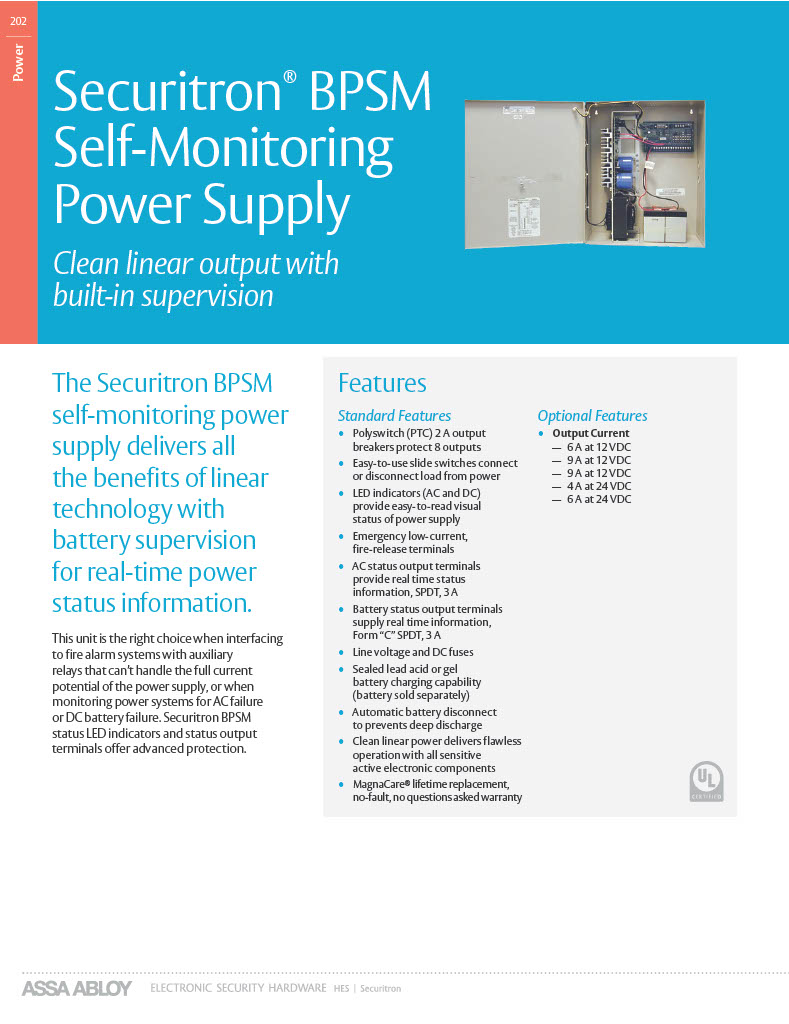

BPSM Self-Monitoring Power Supply

Securitron BPSM-24-6 - Power Supply 24VDC - 6A with Status Monitor

Features:

Input Voltage:120VAC

Voltage and Capacity:24VDC - 6A

Operating Temperature:+32 to +105F [0 to +40C]

Monitoring:110VAC Status, Battery Status

Shipping Weight:28 lbs. [12.70 kg]

Model:BPSM246

Securitron BPSM-24-6 - Power Supply 24VDC - 6A with Status Monitor

Product code: BPSM246

In Stock

$1,212.39

ANSI/UL 294 ListedCSA - C22.2 No.205 Listed
