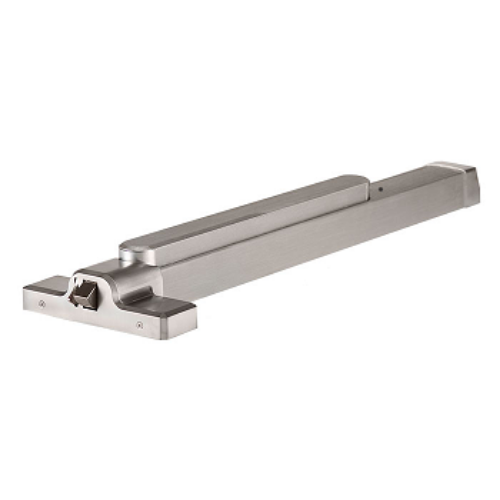

Stanley QED113-36-626 Heavy Duty Rim Exit Device, 3 ft, Fire Rated, Satin Chrome Finish

Stanley QED113-36-626 Heavy Duty Rim Exit Device, 3 ft, Fire Rated, Satin Chrome Finish

Product Details

Stanley QED113-36-626 Heavy Duty Rim Exit Device, 3 ft, Hex Dogging Function, Fire Rated, *Satin Chrome Finish* Function: QED113 Rim Hex Dog - Fire Rated Performance featuresTested and certified to significantly exceed 1,000,000 cycles required well above, for Grade 1 certification.Thru-bolt trim design for increased security and durability.Wide variety of trim options to fit any job.Consistent styling allows for harmonization with other dormakaba Commercial Hardware products.Certifications:ANSI/BHMA A156.3 - Grade 1.UL/cUL listed (3 hours) for "A" label door applications (8' x 8')ANSI A117.1 Section 404.2.6 Accessibility Code (ADA Compliant)California Administrative Code Title 24 (for Sierra and Summit lever trims)Keying: Offered with the following keyway options: BF-SFIC "F", KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent & LC-Less Cylinder.Consult factory for other cylinder options and for details on Mortise and Rim Cylinder requirements.Warranty: Lifetime Mechanical, 3-year finish, 1-year electrical.

Stanley QED113-36-626 Heavy Duty Rim Exit Device, 3 ft, Fire Rated, Satin Chrome Finish

Name: Stanley QED113-36-626 Heavy Duty Rim Exit Device, 3 ft, Fire Rated, Satin Chrome Finish
SKU: QED11336
Price: 1002.84 USD
Availability: InStock

SKU: QED11336

In Stock

Chat

$1,002.84

About this item

Resources

No resources added to this product.

Stanley QED113-36-626 Heavy Duty Rim Exit Device, 3 ft, Fire Rated, Satin Chrome Finish

Product code: QED11336

In Stock

$1,002.84

Handing:All QED100 Series Exit Devices are non-handed.

Door thickness:1-3/4" standard (44.5mm).

Latch bolt:Stainless steel 3/4" standard (19mm).

Fasteners:Wood screws, machine screws and sex bolts standard.

Head cap & end cap:Zinc die-cast.

Trims:Sierra, Summit and Slate styles available.

Escutcheon offering:Dummy, passage, keyed, night latch.

Pull plate offering:Dummy, thumb-piece, night latch, flat plate.

Stile width:4-1/4" minimum (108mm).

Dogging:Hex key dogging and cylinder dogging available.

Size:36" field sizable to 32" door.

Standard backset:2-7/8" (62mm) to face of doorstop.

Electrification options available.

Function:QED111 Rim Hex Dog

Exit trim offerings:

ANSI: Series: Description:2 QET120 Dummy Lever Escutcheon2 QET125 Dummy Pull Plate14 QET130 Passage Lever Escutcheon8 QET160 Keyed Lever Escutcheon5 QET165 Thumb-piece2 QET167 Dummy Thumb-piece9 QET170 Night Latch Lever Escutcheon3 QET175 Night Latch Pull1 QET190 Flat Plate

Finish: 626 Satin Chrome
