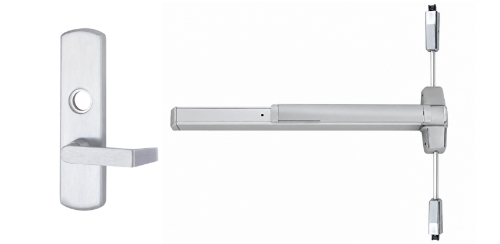

Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim

Picture of Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim
Picture of Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim
Picture of Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim
Picture of Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim
Picture of Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim
Picture of Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim
naxt
prev

Product Details

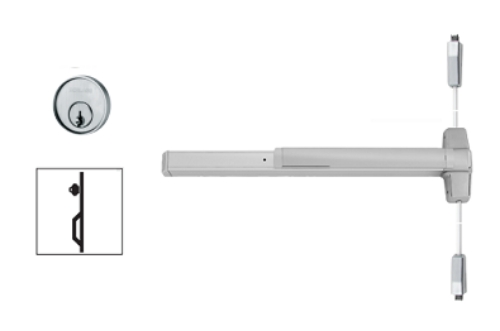

Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim

Devices are ANSI A156.3 2001 Grade 1.

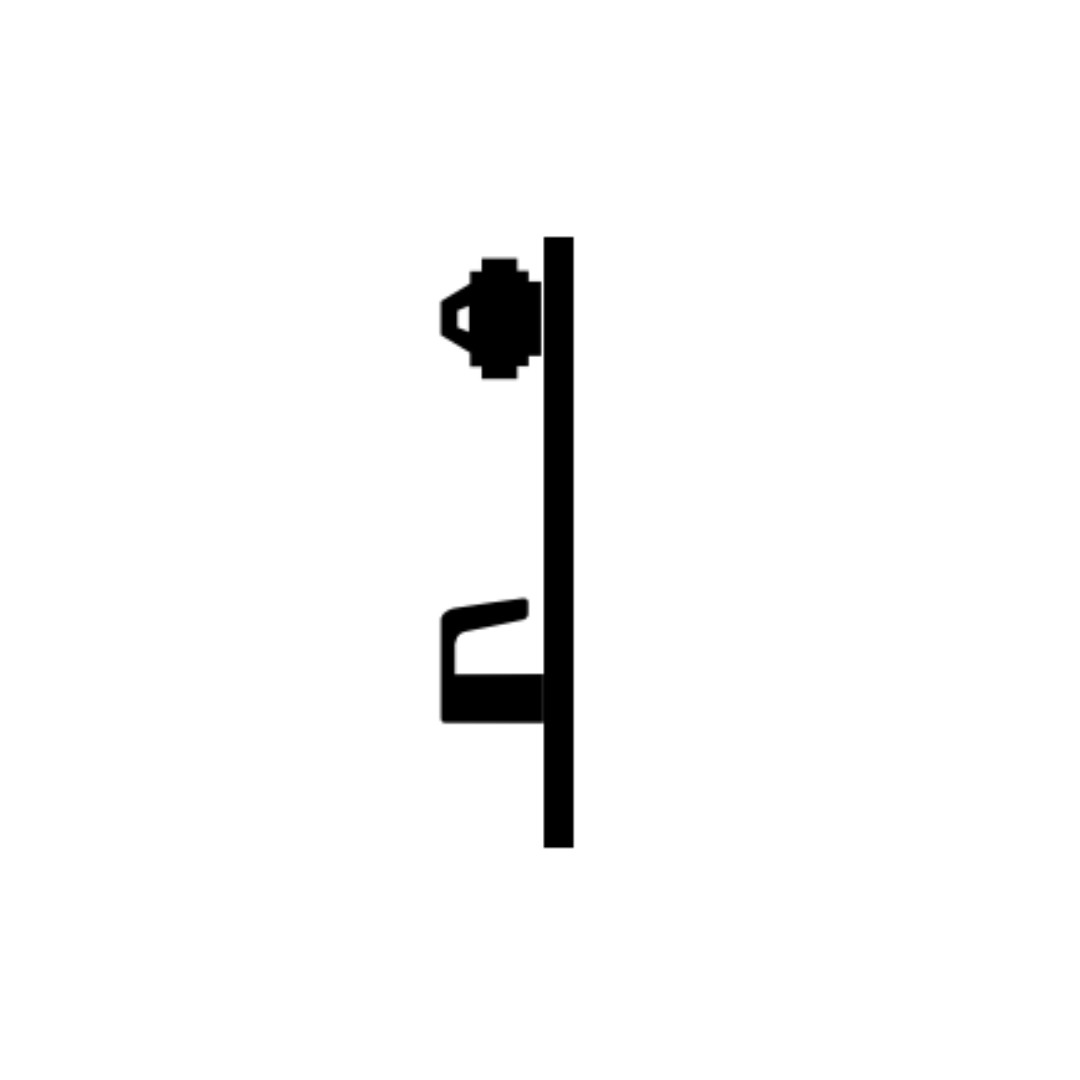

TL-NL - Key retracts latchbolt. - Handed, reversible lever.

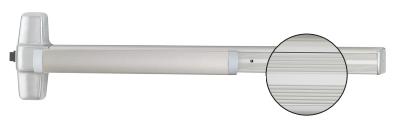

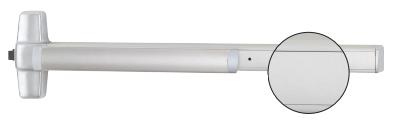

The 98 device has a smooth mechanism case and the 99 device has a grooved case.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging Feature: Hex key dogging standard.

Latch Bolt: 3/4" (19mm) throw latch bolt.

Strike: Device is furnished with standard 299 strike in dull black finish.

Fasteners: Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.

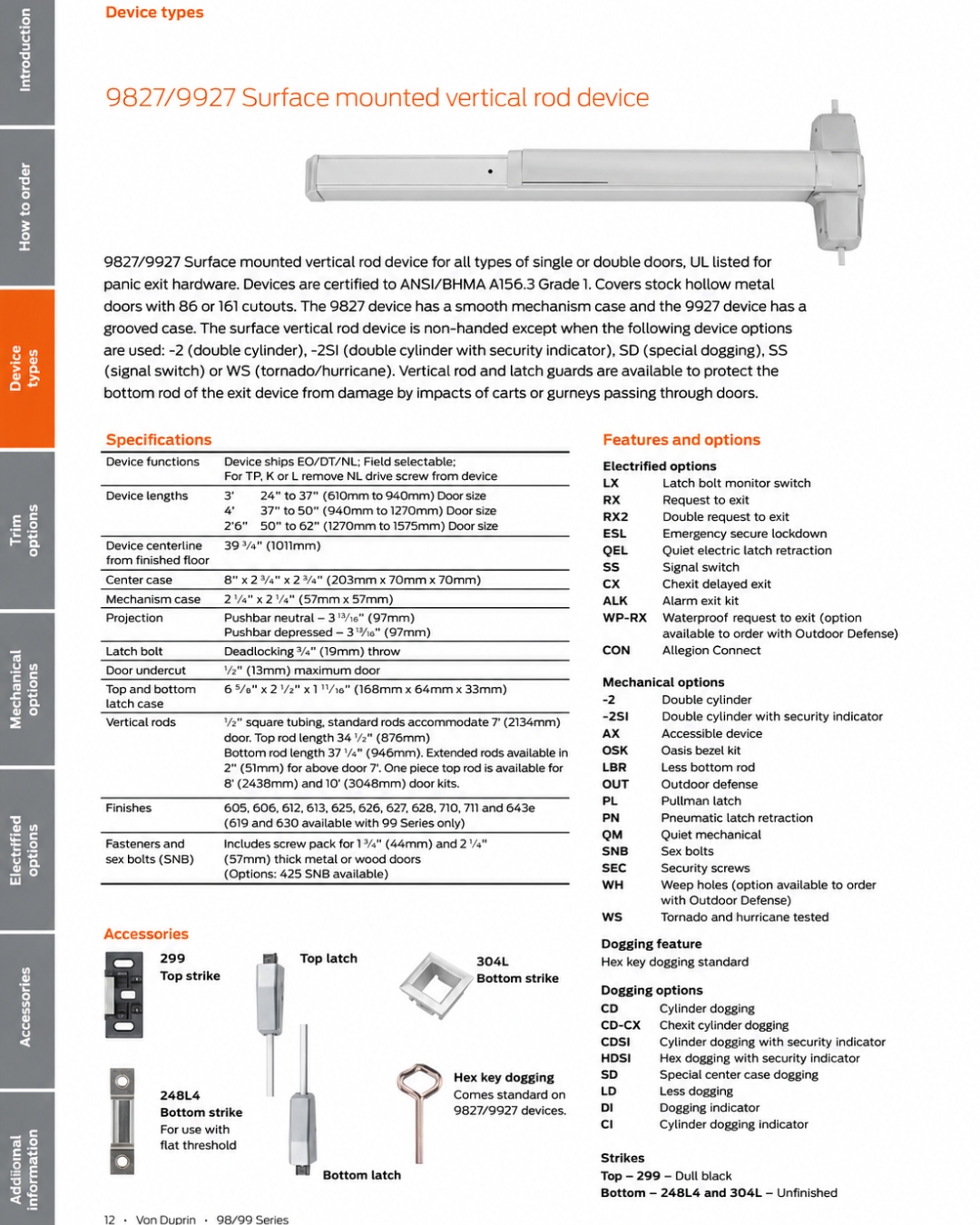

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: 39-13/16" (1011 mm). 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 9827, 9927, 9827LNL, 9927LNL26D, 9927LNL3, 9927LNL, 9827/9927, 98/9927LNL, US3, US4, US10, US10B, US26, US26D, US2827, US32D

Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim

SKU: 9827L-NL/9927L-NL

In Stock

$2,305.16

Model *

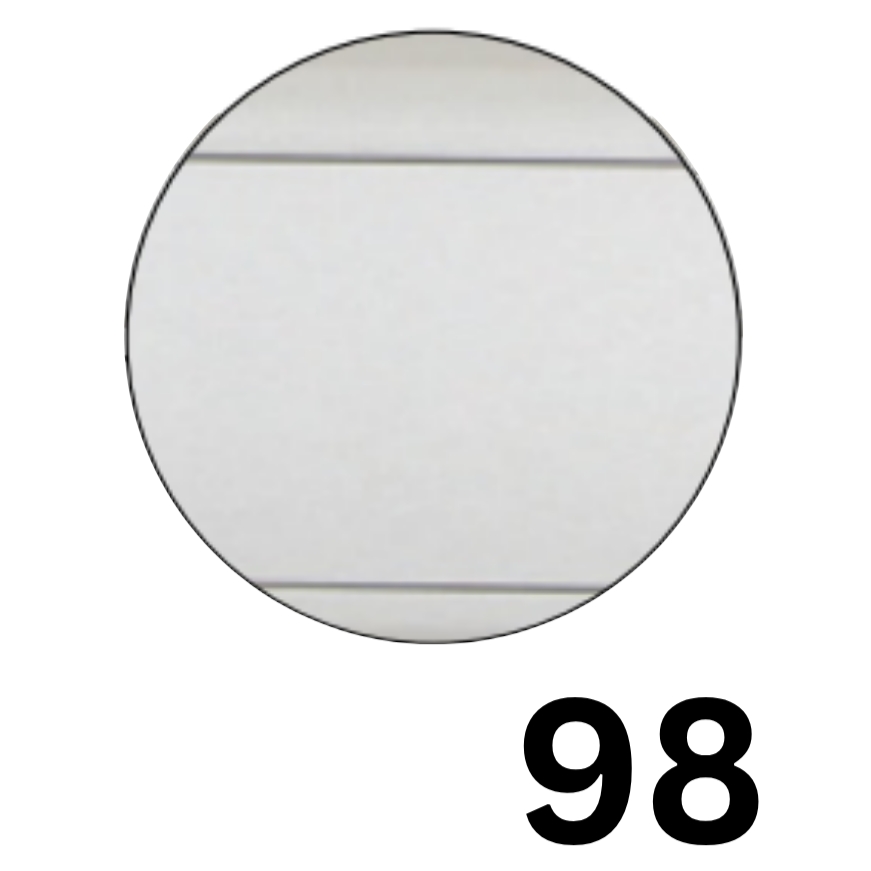

9827L-NL Series - Smooth mechanism case
9827L-NL Series - Smooth mechanism case

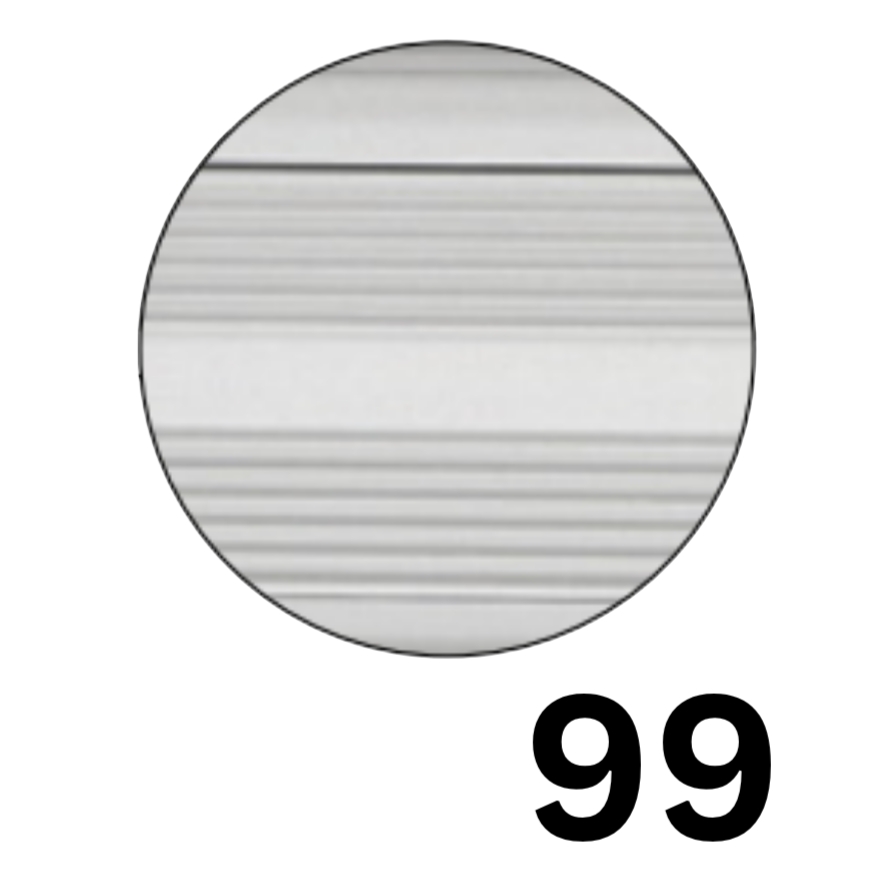

9927L-NL Series - Grooved mechanism case
9927L-NL Series - Grooved mechanism case

Lever *

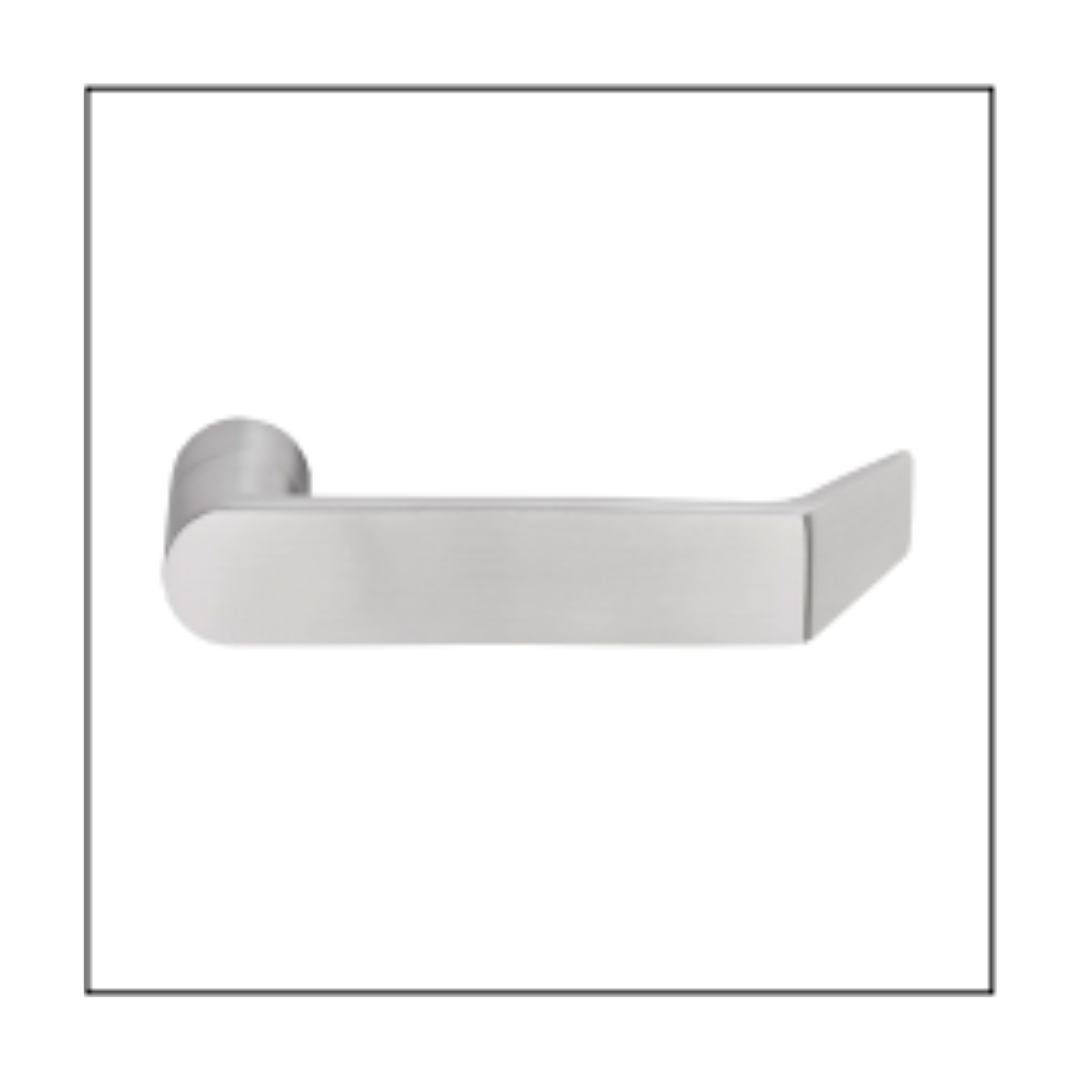

06 Lever Style (Standard)
06 Lever Style (Standard)

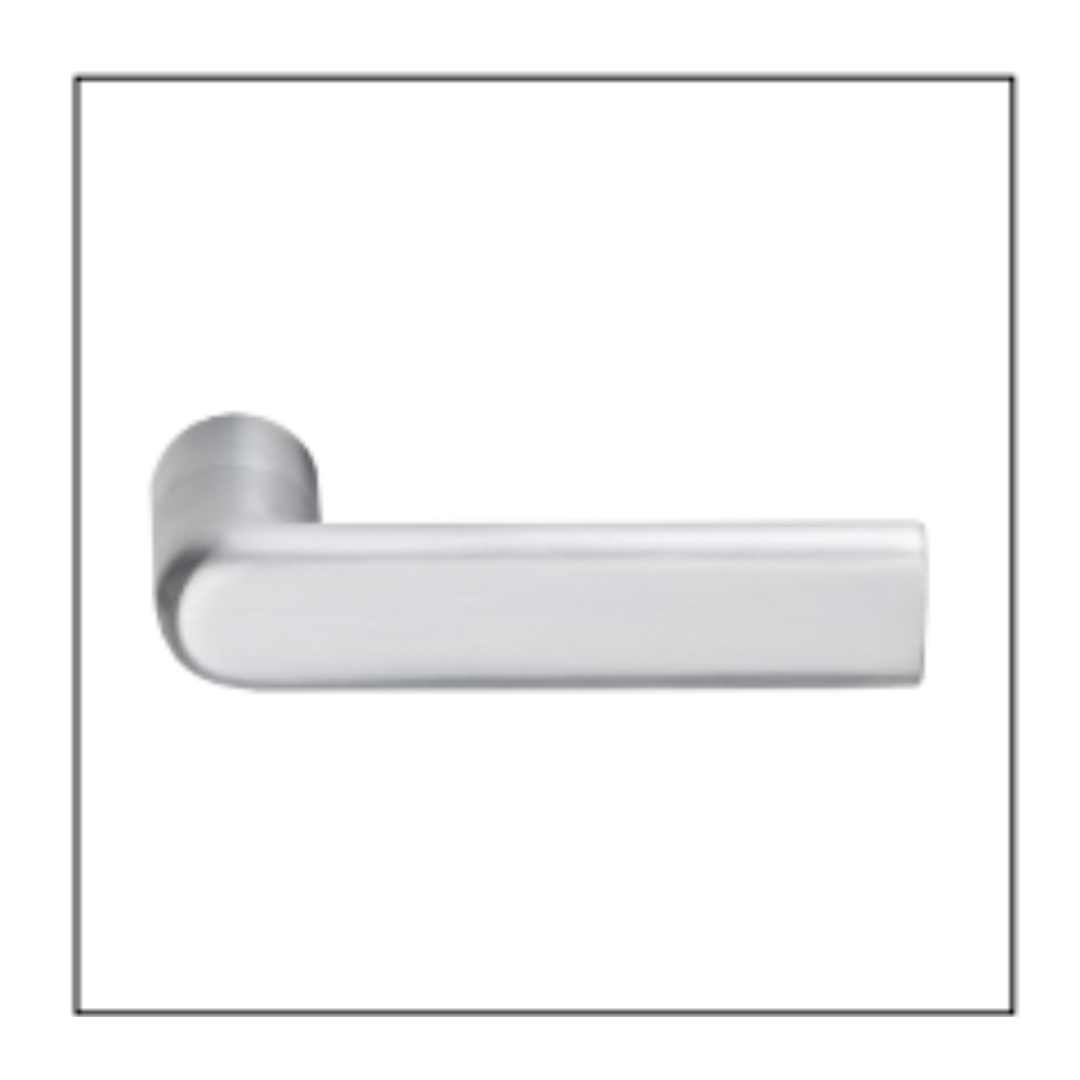

01 Lever Style
01 Lever Style

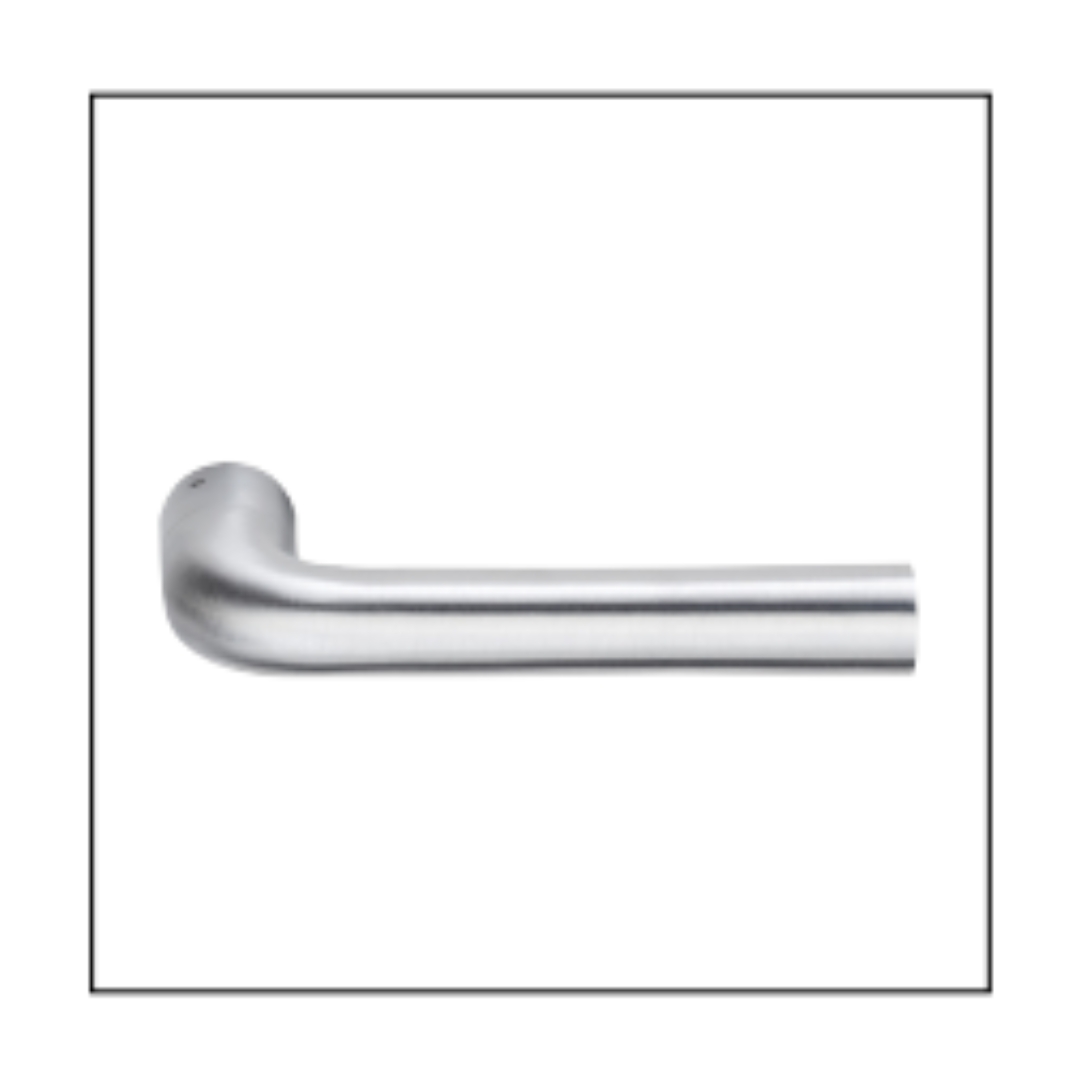

02 Lever Style
02 Lever Style

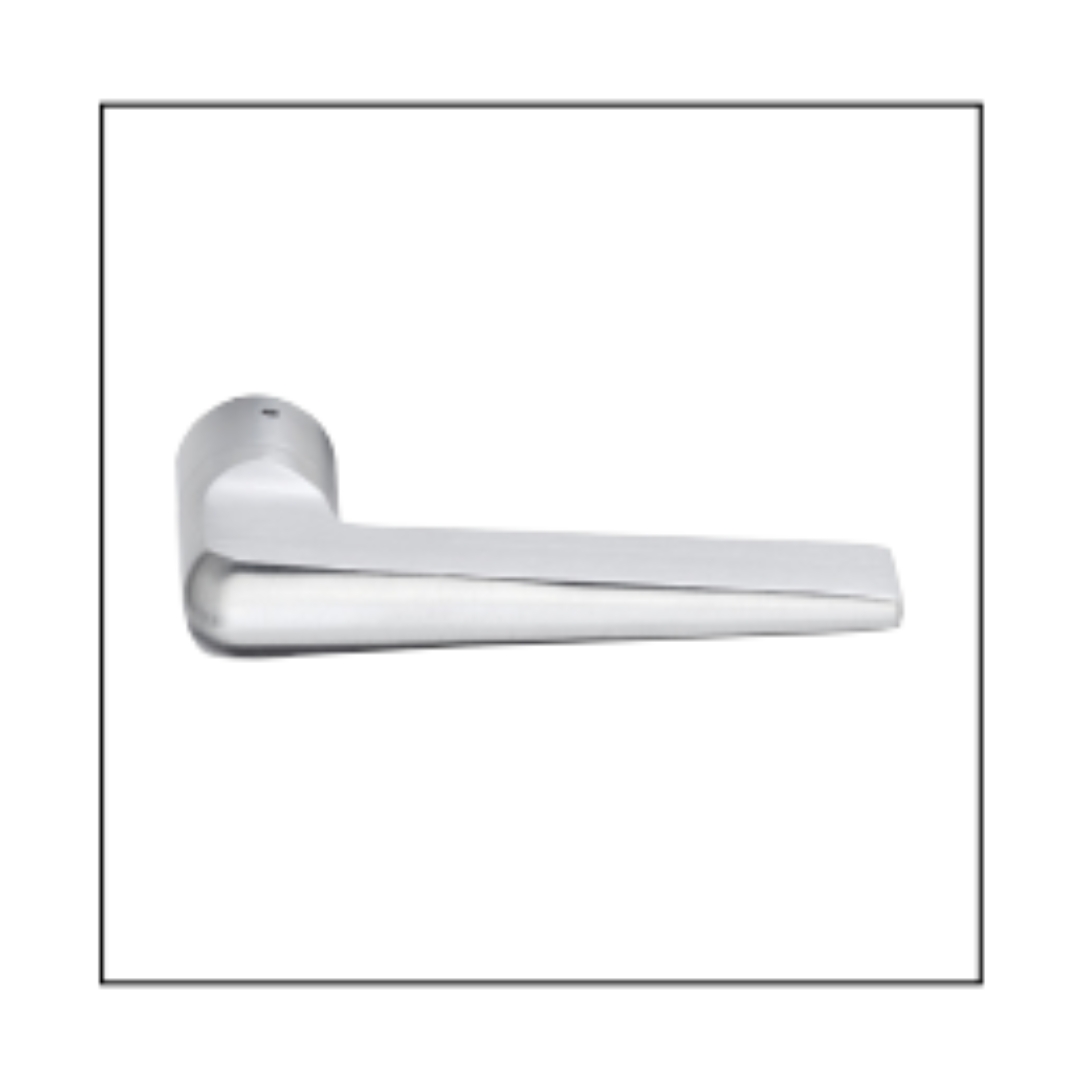

05 Lever Style
05 Lever Style

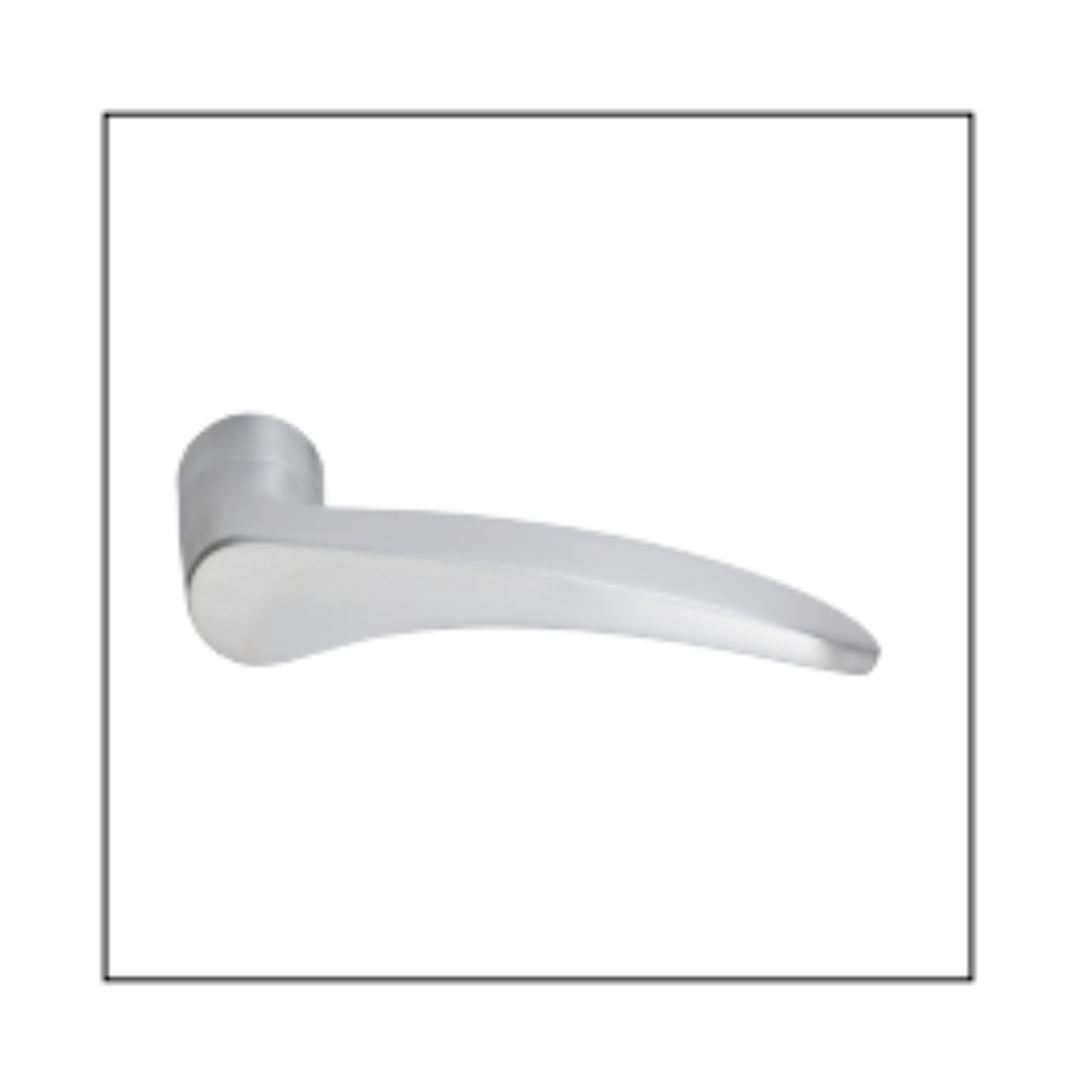

12 Lever Style
12 Lever Style

Handing *

Size *

Finish *

US28 - Anodized, Aluminum (628)
US28 - Anodized, Aluminum (628)
26D - Satin Chrome (626)
26D - Satin Chrome (626)
32D - Satin Stainless Steel (630) For 98 only
32D - Satin Stainless Steel (630) For 98 only
US10B - Oil Rubbed Bronze (613)
US10B - Oil Rubbed Bronze (613)

Cylinder for Trim *

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim

Devices are ANSI A156.3 2001 Grade 1.

TL-NL - Key retracts latchbolt. - Handed, reversible lever.

The 98 device has a smooth mechanism case and the 99 device has a grooved case.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging Feature: Hex key dogging standard.

Latch Bolt: 3/4" (19mm) throw latch bolt.

Strike: Device is furnished with standard 299 strike in dull black finish.

Fasteners: Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: 39-13/16" (1011 mm). 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 9827, 9927, 9827LNL, 9927LNL26D, 9927LNL3, 9927LNL, 9827/9927, 98/9927LNL, US3, US4, US10, US10B, US26, US26D, US2827, US32D

Picture of Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim
Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim

Product code: 9827L-NL/9927L-NL

In Stock

$2,305.16

$2,305.16

Picture of Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim
Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim

Product code: 9827L-NL/9927L-NL

In Stock

$2,305.16

$2,305.16

Von Duprin 9827L-NL / 9927L-NL Surface Vertical Rod Panic Exit Device, With Rigid Lever, Night Latch, 996 Trim

SKU: 9827L-NL/9927L-NL
