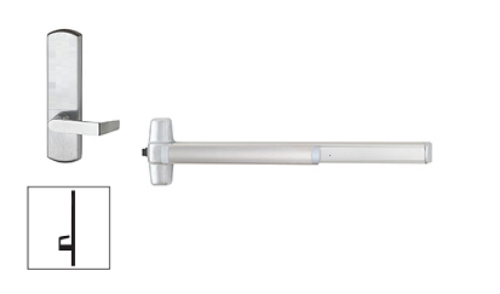

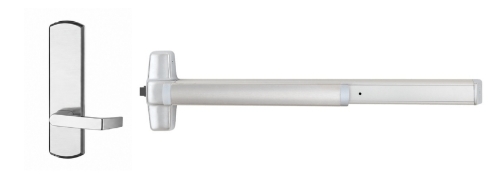

Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim

Picture of Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim
Picture of Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim
Picture of Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim
Picture of Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim
Picture of Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim
Picture of Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim
naxt
prev

Product Details

Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim

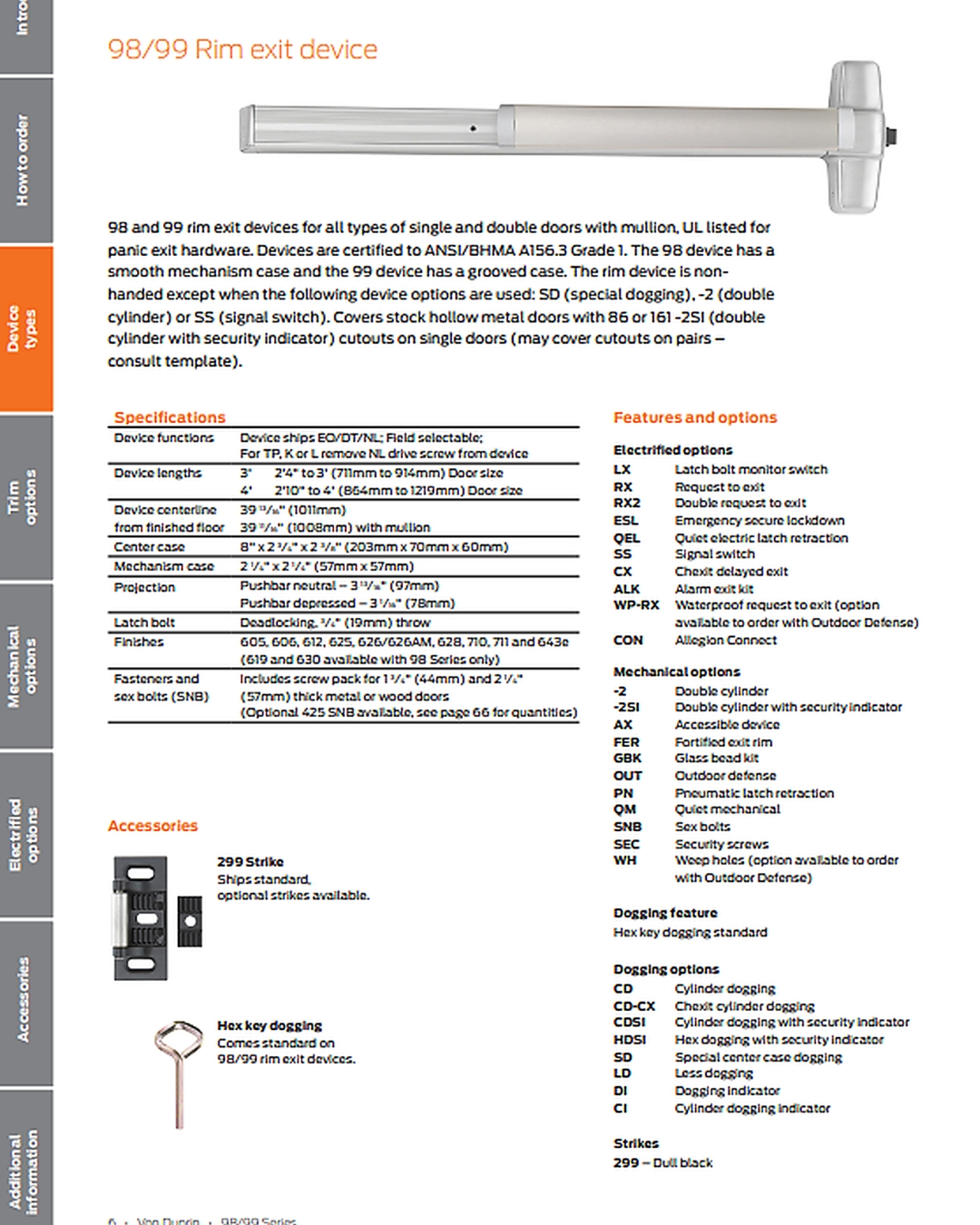

98EO and 99EO rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

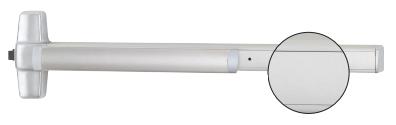

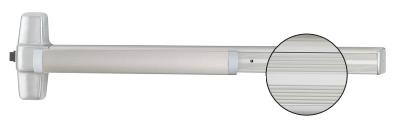

The 98 device has a smooth mechanism case and the 99 device has a grooved case.

DT - Dummy trim: Pull when dogged (not recommended for fire device).

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging Feature: Hex key dogging standard.

Latch Bolt: 3/4" (19mm) throw latch bolt.

Strike: Device is furnished with standard 299 strike in dull black finish.

Fasteners: Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: 39-13/16" (1011 mm). 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 98, 99, 98EO, 99EO26D, 99EO3, 99EO, 98/99, 98/99EO, RX98, RX99, RX98EO, RX99EO, ALK98, ALK99, ALK98EO, ALK99EO, US3, US4, US10, US10B, US26, US26D, US28, US32D

Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim

SKU: 98L-DT/99L-DT

In Stock

$1,745.92

Model *

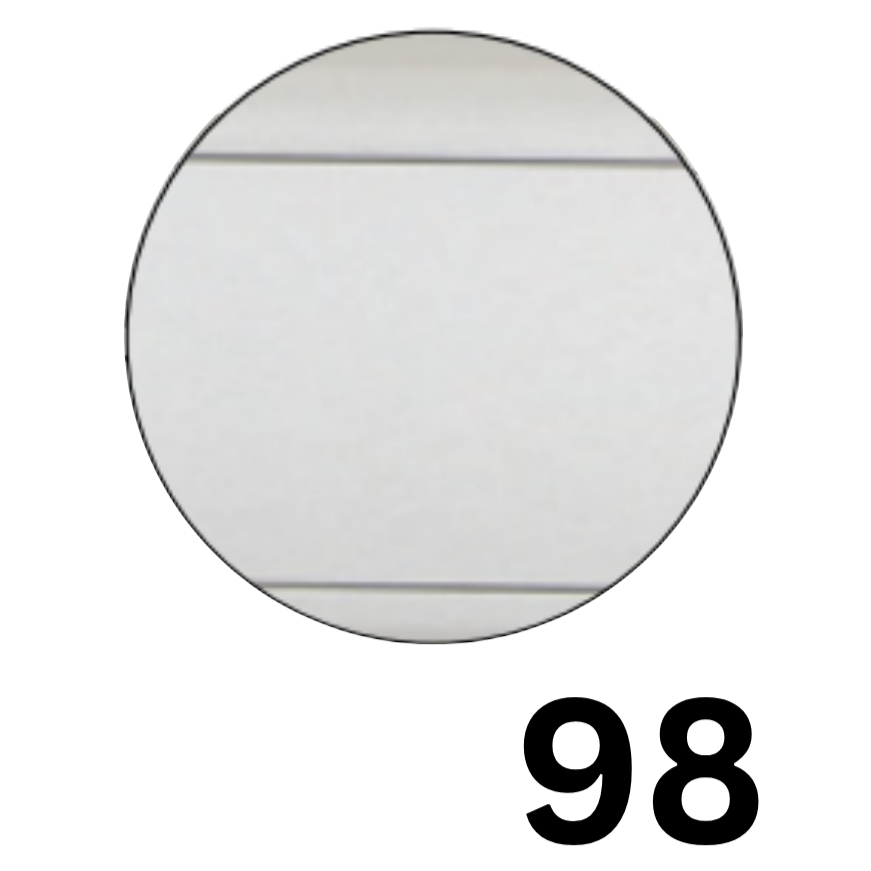

98L-DT Series - Smooth mechanism case
98L-DT Series - Smooth mechanism case

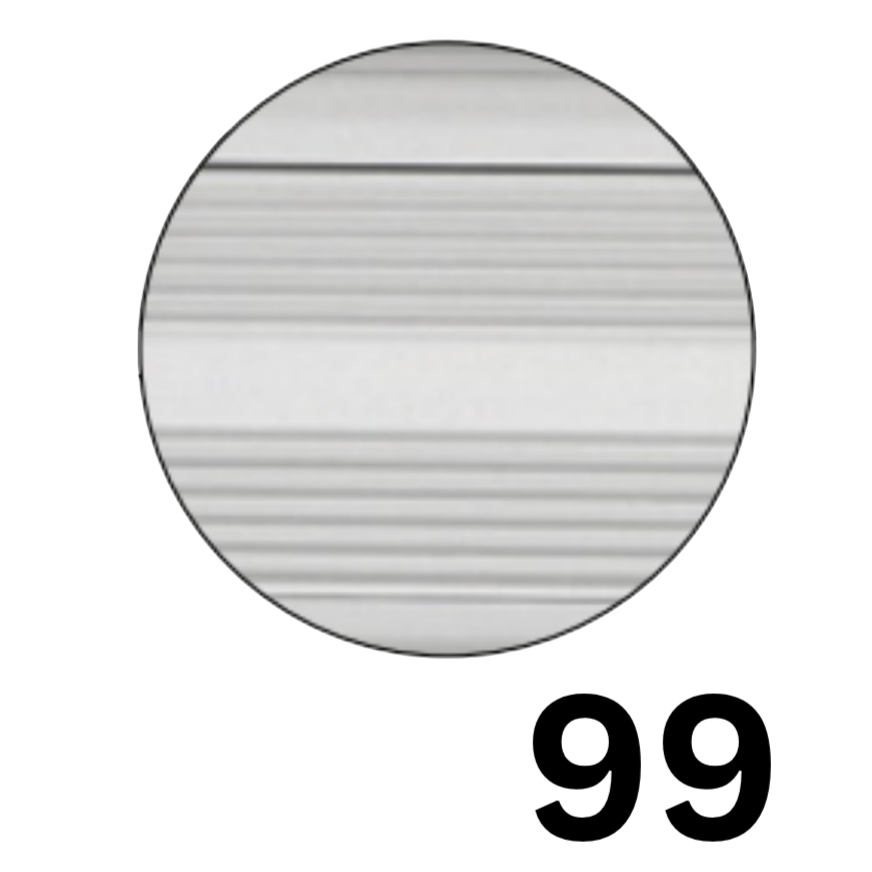

99L-DT Series - Grooved mechanism case
99L-DT Series - Grooved mechanism case

Lever Style *

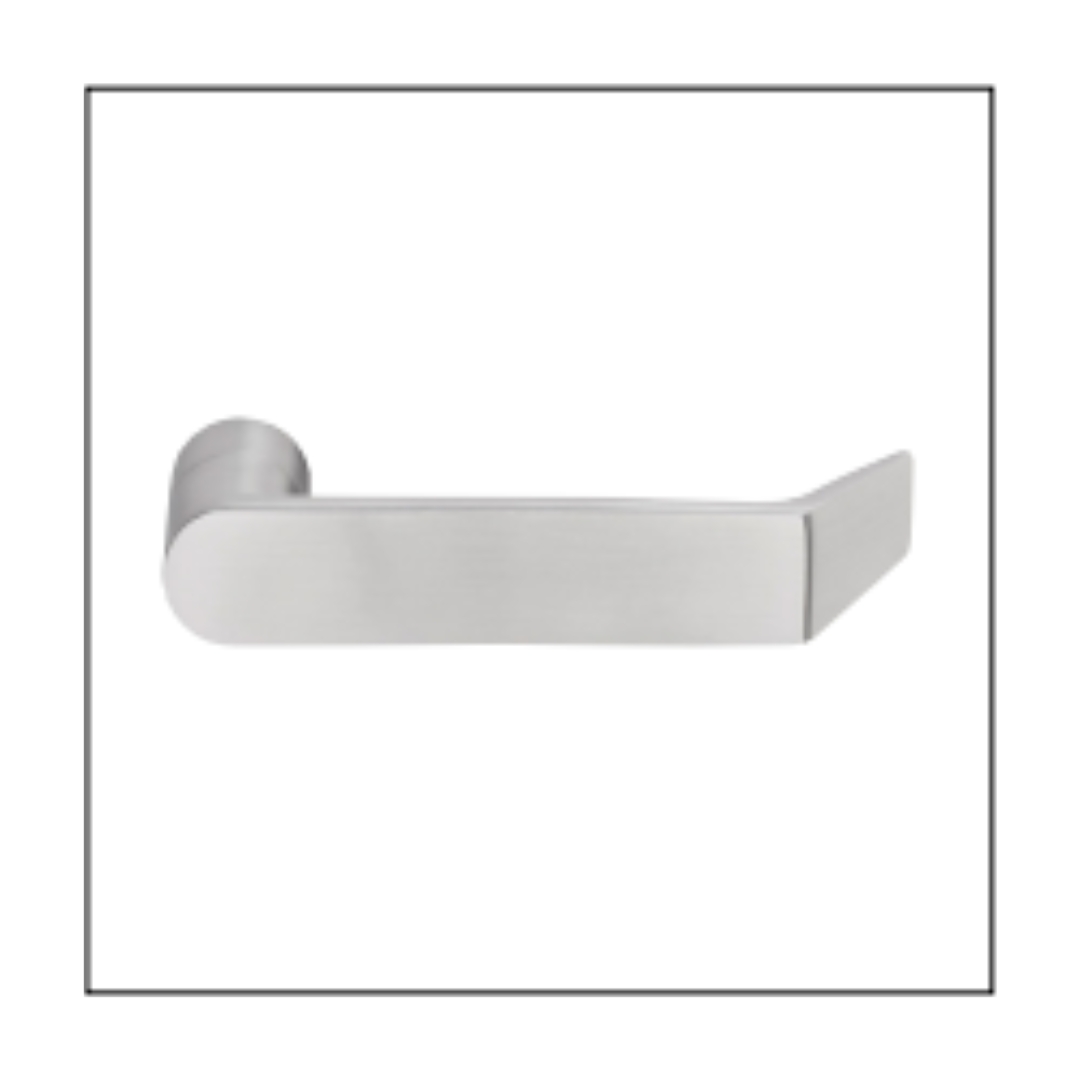

06 Lever Style (Standard)
06 Lever Style (Standard)

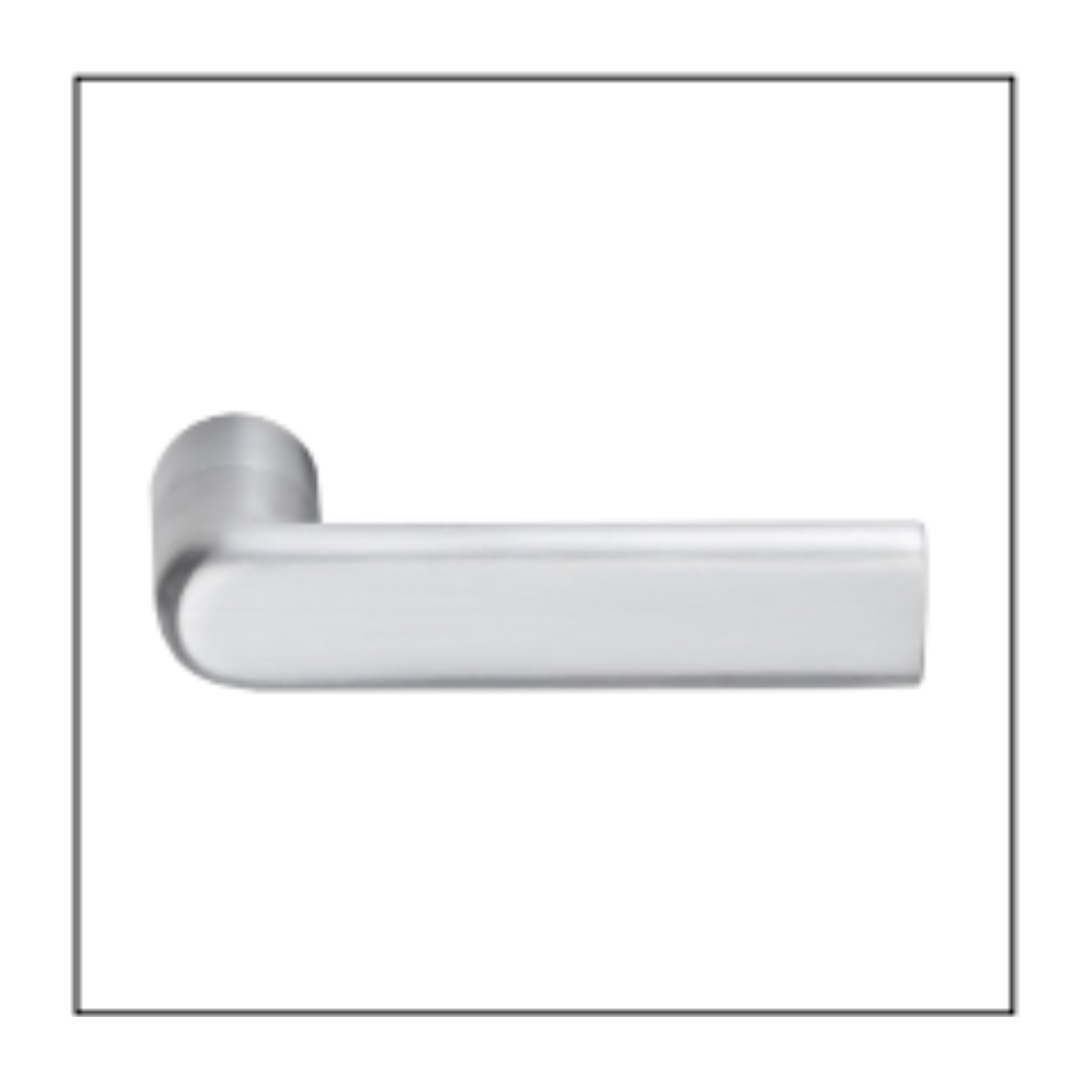

01 Lever Style
01 Lever Style

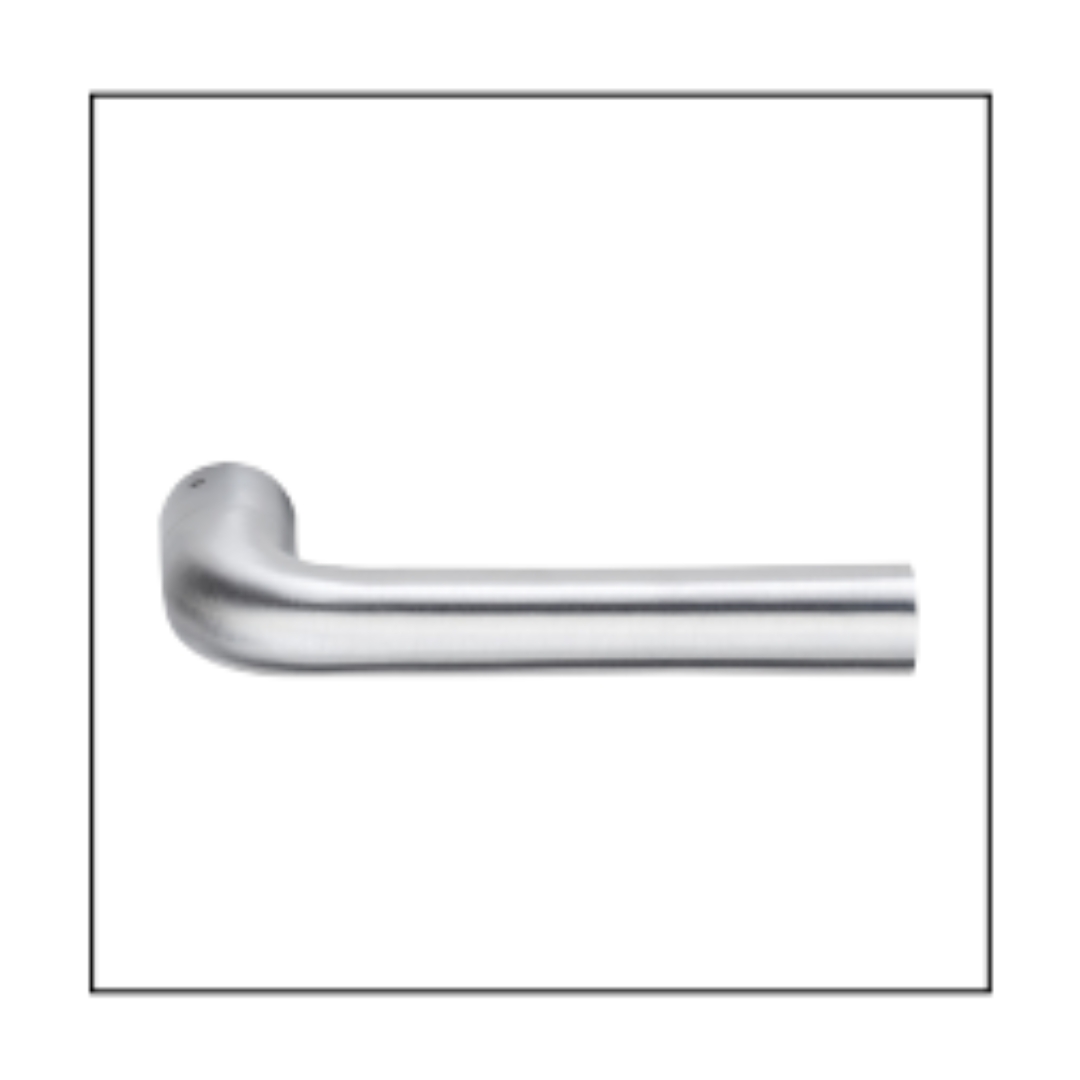

02 Lever Style
02 Lever Style

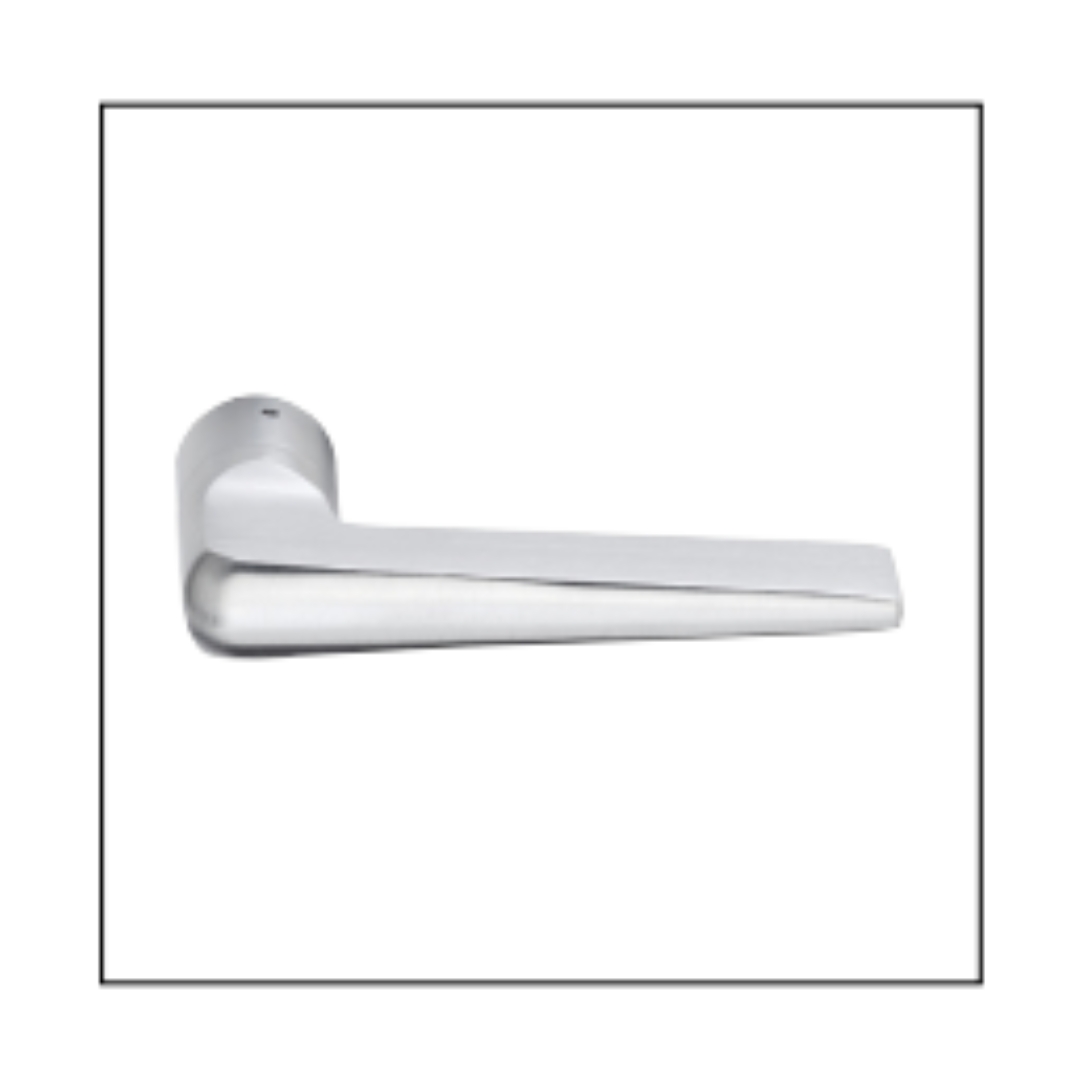

05 Lever Style
05 Lever Style

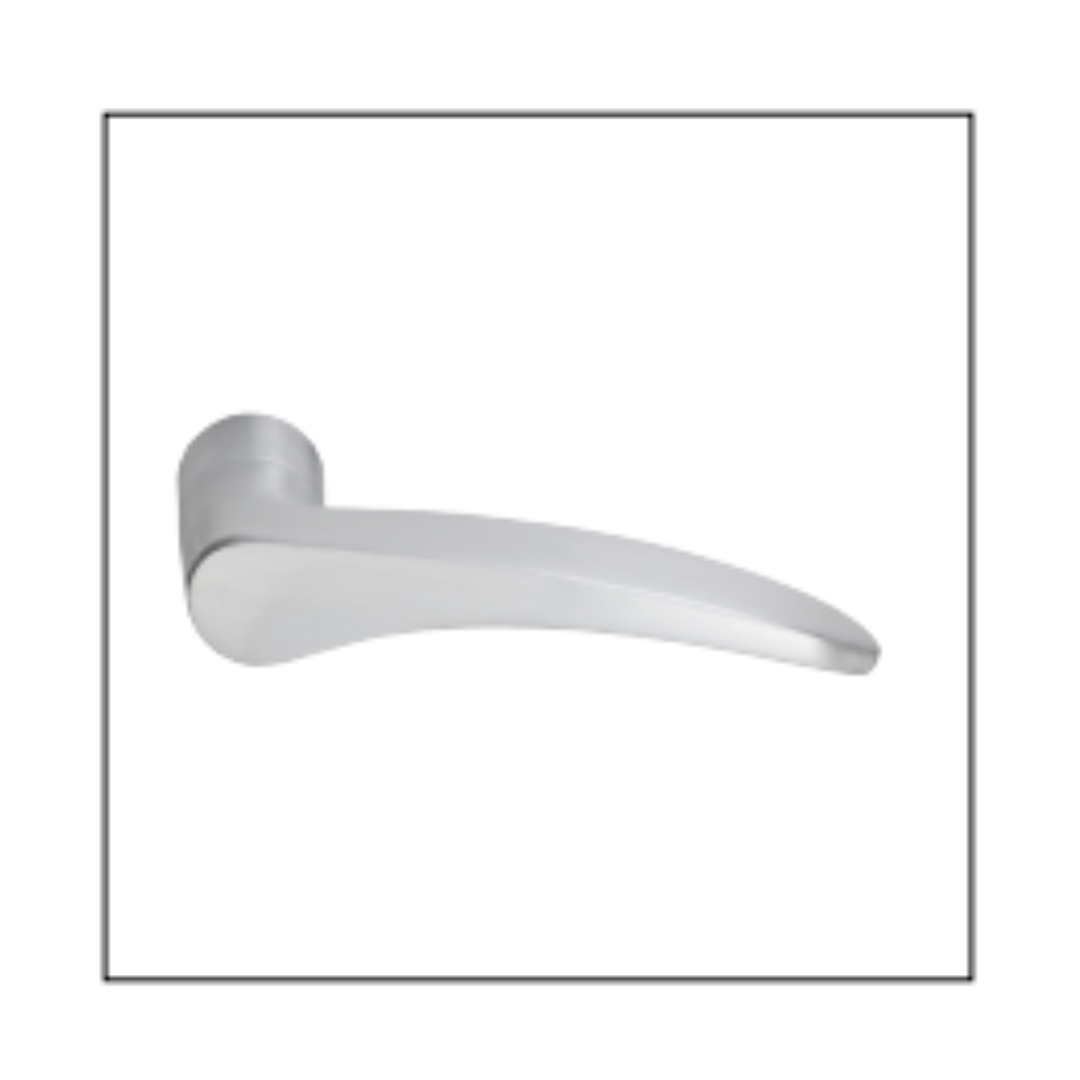

12 Lever Style
12 Lever Style

Handing *

Size *

Finish *

US28 - Anodized, Aluminum (628)
US28 - Anodized, Aluminum (628)
26D - Satin Chrome (626)
26D - Satin Chrome (626)
32D - Satin Stainless Steel (630) For 98 only
32D - Satin Stainless Steel (630) For 98 only
US10B - Oil Rubbed Bronze (613)
US10B - Oil Rubbed Bronze (613)

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim

98EO and 99EO rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

The 98 device has a smooth mechanism case and the 99 device has a grooved case.

DT - Dummy trim: Pull when dogged (not recommended for fire device).

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging Feature: Hex key dogging standard.

Latch Bolt: 3/4" (19mm) throw latch bolt.

Strike: Device is furnished with standard 299 strike in dull black finish.

Fasteners: Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: 39-13/16" (1011 mm). 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 98, 99, 98EO, 99EO26D, 99EO3, 99EO, 98/99, 98/99EO, RX98, RX99, RX98EO, RX99EO, ALK98, ALK99, ALK98EO, ALK99EO, US3, US4, US10, US10B, US26, US26D, US28, US32D

Picture of Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim
Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim

Product code: 98L-DT/99L-DT

In Stock

$1,745.92

$1,745.92

Picture of Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim
Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim

Product code: 98L-DT/99L-DT

In Stock

$1,745.92

$1,745.92

Von Duprin 98L-DT / 99L-DT Rim Panic Exit Device, with Blank Escutcheon, Rigid Lever, 996 Dummy Trim

SKU: 98L-DT/99L-DT
