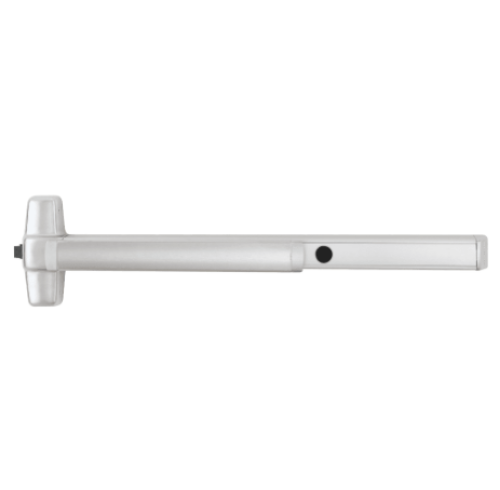

Von Duprin CD98EO / CD99EO Rim Panic Exit Device - Cylinder Dogging

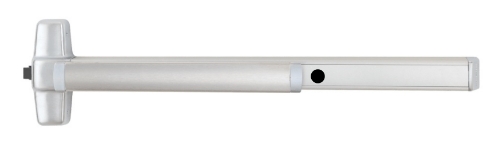

Picture of Von Duprin CD98EO / CD99EO Rim Panic Exit Device - Cylinder Dogging

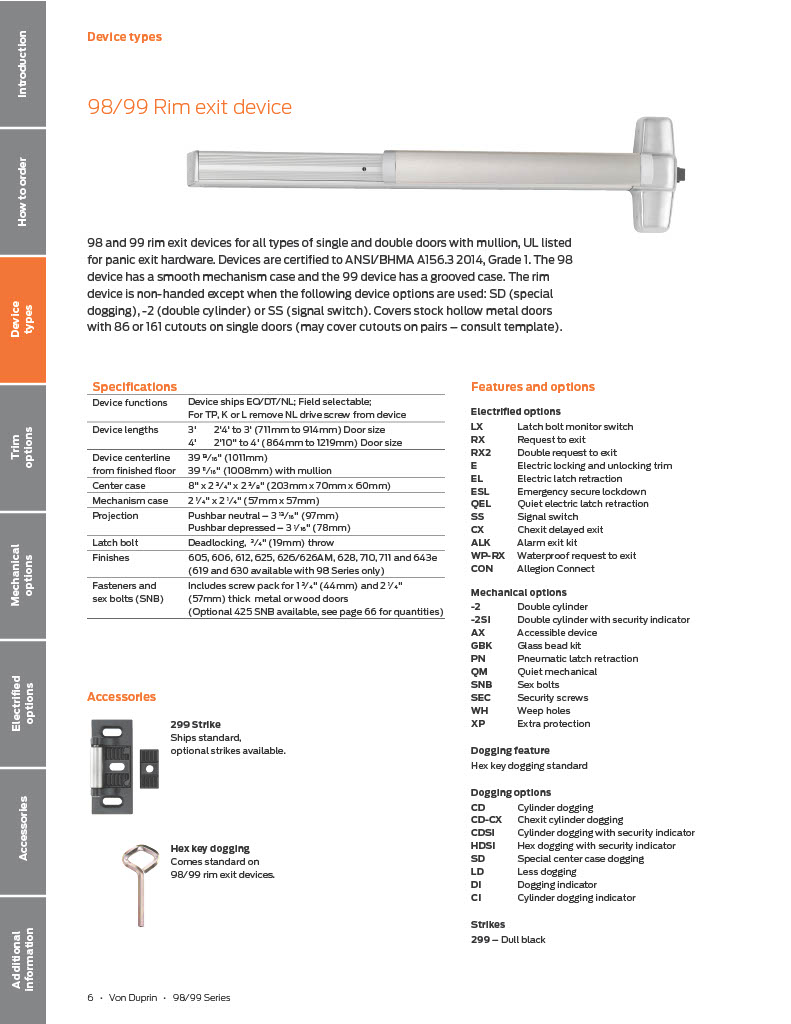

1-Page6-VON

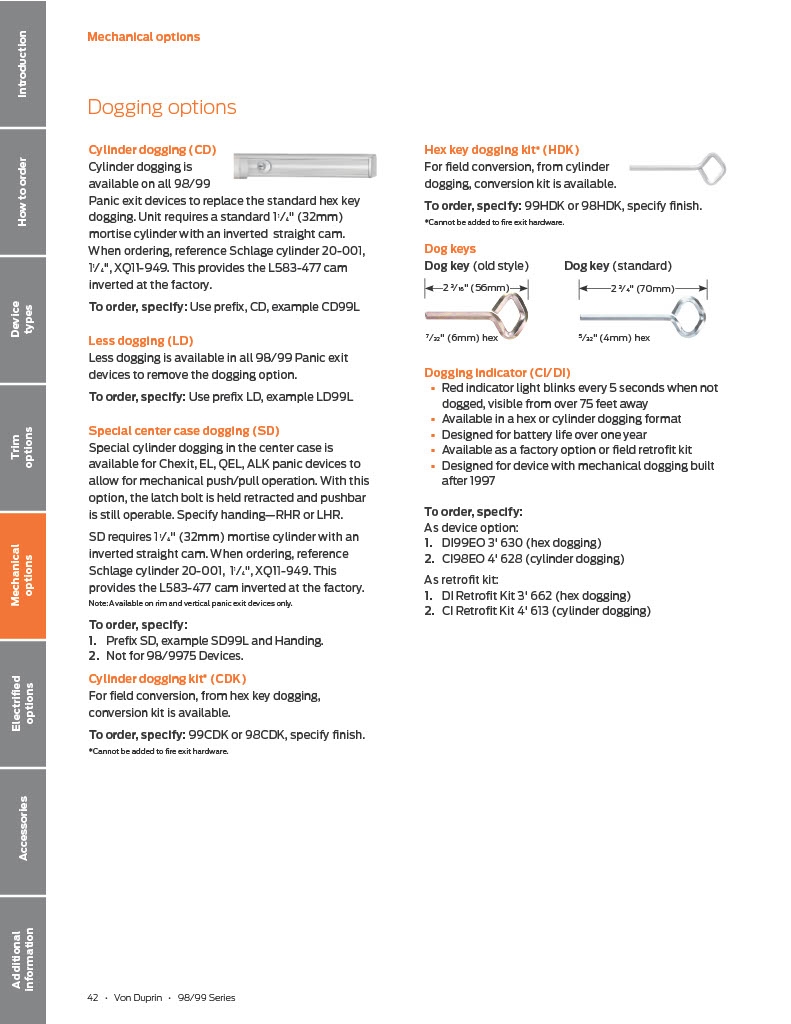

1-Page42-VON
Picture of Von Duprin CD98EO / CD99EO Rim Panic Exit Device - Cylinder Dogging
1-Page6-VON
1-Page42-VON
naxt
prev

Product Details

Von Duprin CD98EO/CD99EO Series Touch Bar Exit Device, Cylinder Dogging  - Exit Only

Cylinder dogging (CD) - Cylinder dogging is available on all 98/99 Panic exit devices to replace the standard hex key dogging. Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam.

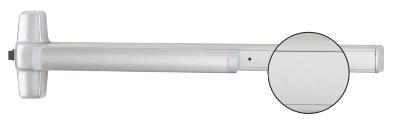

The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs. The 98 device has a smooth mechanism case and the 99 device has a grooved case.

98 and 99 rim exit devices for all types of single and double doors with mullion  UL listed for panic or fire exit hardware The 98 device has a smooth mechanism case and the 99 device has a grooved case   Devices are certified to ANSI/BHMA A156.3 2014, Grade 1 Designed for high use and abuse in institutional applications like schools, hospitals and  government facilities  A variety of field-configurable options and retrofit kits available  Covers stock hollow metal doors with 86 or 161 cutouts on single doors

Specifications:

Device lengths:- 3' Device, 2'4' to 3' (711mm to 914mm) Door size; 4' Device, 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion

Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Latch Bolt: 3/4" (19mm) throw latch bolt.

Strike: - Device is furnished with standard 299 strike in dull black finish

Dogging: - Cylinder dogging

Projection: - Pushbar neutral  - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm)

Latch bolt Deadlocking: - 3⁄4" (19mm) throw

Handing: - Non handed

Finishes: 628, 626, 612, 710, 630, 606, 625, 605, 619, 711, 613 (619 and 630 available with 98 Series only).

Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)

Von Duprin CD98EO / CD99EO Rim Panic Exit Device - Cylinder Dogging

SKU: CD98EO/CD99EO

In Stock

$1,373.30

Model *

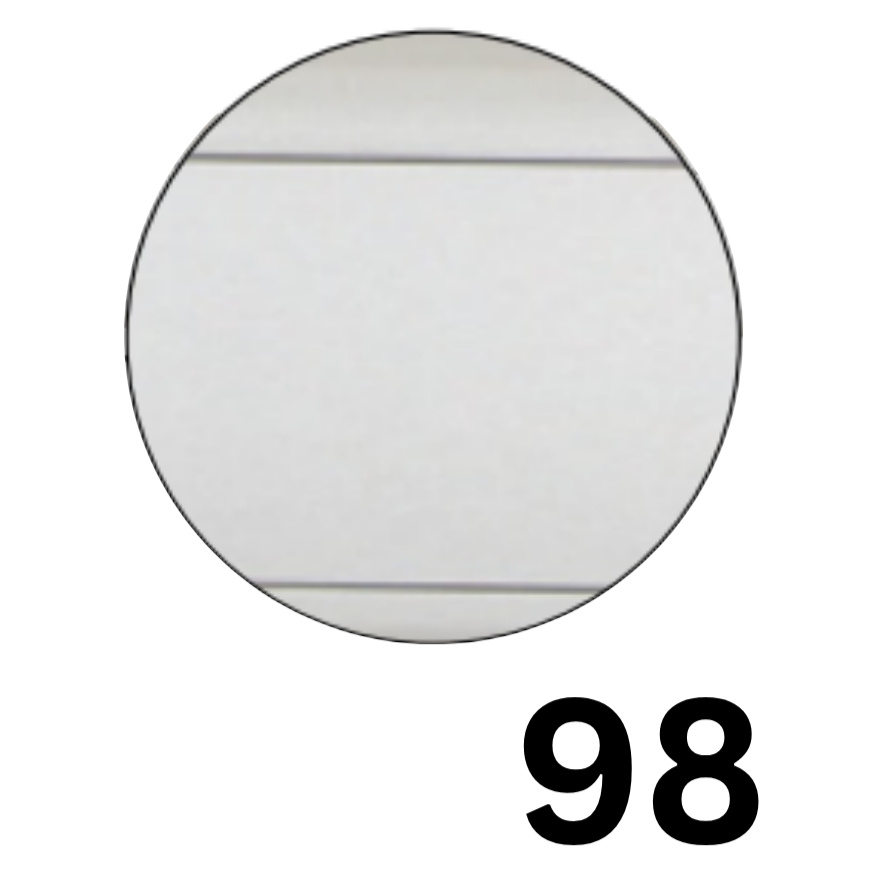

CD98EO Series - Smooth mechanism case
CD98EO Series - Smooth mechanism case

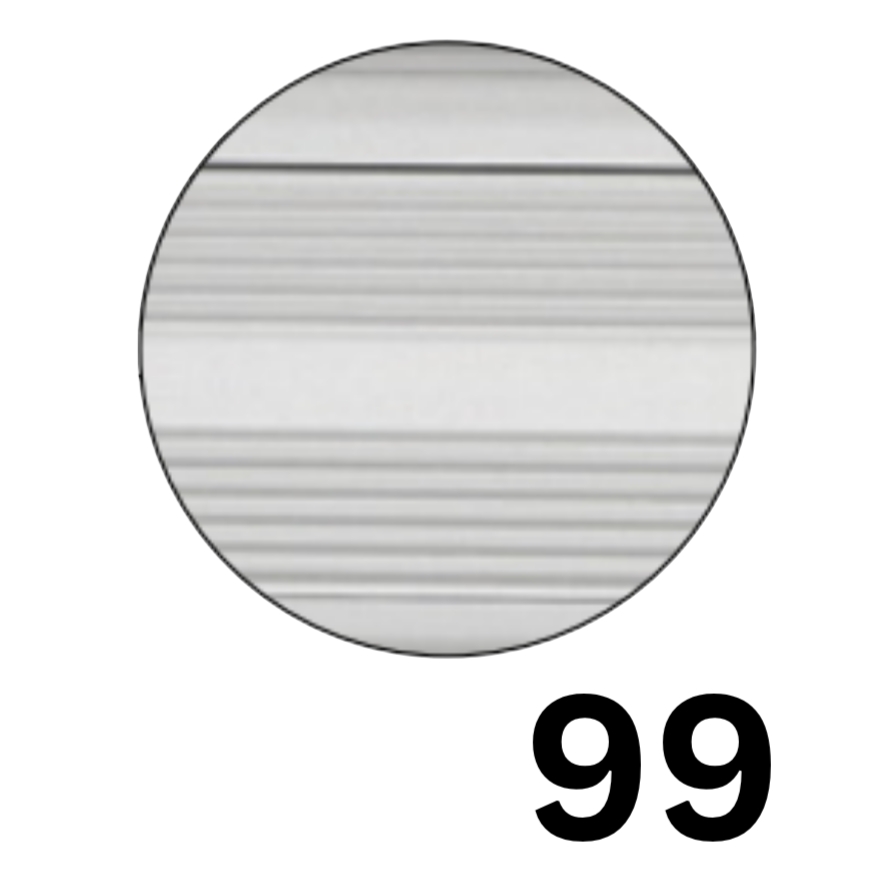

CD99EO Series - Grooved mechanism case
CD99EO Series - Grooved mechanism case

Size *

Finish *

US28 - Anodized, Aluminum (628)
US28 - Anodized, Aluminum (628)
26D - Satin Chrome (626)
26D - Satin Chrome (626)
US10 - Satin Bronze (612)
US10 - Satin Bronze (612)
710 - Dark Brown, Anodized (313)
710 - Dark Brown, Anodized (313)
32D - Satin Stainless Steel (630) For 98 only
32D - Satin Stainless Steel (630) For 98 only
US4 - Satin Brass (606)
US4 - Satin Brass (606)
US26 - Bright Chrome (625)
US26 - Bright Chrome (625)
US3 - Bright Brass (605)
US3 - Bright Brass (605)
US15 - Satin Nickel (619) For 98 only
US15 - Satin Nickel (619) For 98 only
711 - Black (315)
711 - Black (315)
US10B - Oil Rubbed Bronze (613)
US10B - Oil Rubbed Bronze (613)

Cylinder For Cylinder Dogging *

About this item

                                              Click Here for the 88/99 Series Trims section

Von Duprin CD98EO/CD99EO Series Touch Bar Exit Device, Cylinder Dogging  - Exit Only

Cylinder dogging (CD) - Cylinder dogging is available on all 98/99 Panic exit devices to replace the standard hex key dogging. Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam.

The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs. The 98 device has a smooth mechanism case and the 99 device has a grooved case.

98 and 99 rim exit devices for all types of single and double doors with mullion  UL listed for panic or fire exit hardware The 98 device has a smooth mechanism case and the 99 device has a grooved case   Devices are certified to ANSI/BHMA A156.3 2014, Grade 1 Designed for high use and abuse in institutional applications like schools, hospitals and  government facilities  A variety of field-configurable options and retrofit kits available  Covers stock hollow metal doors with 86 or 161 cutouts on single doors

Specifications:

Device lengths:- 3' Device, 2'4' to 3' (711mm to 914mm) Door size; 4' Device, 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion

Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Latch Bolt: 3/4" (19mm) throw latch bolt.

Strike: - Device is furnished with standard 299 strike in dull black finish

Dogging: - Cylinder dogging

Projection: - Pushbar neutral  - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm)

Latch bolt Deadlocking: - 3⁄4" (19mm) throw

Handing: - Non handed

Finishes: 628, 626, 612, 710, 630, 606, 625, 605, 619, 711, 613 (619 and 630 available with 98 Series only).

Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)
