Von Duprin CDSI98EO / CDSI99EO Rim Panic Exit Device - Cylinder Dogging, Security Indicator

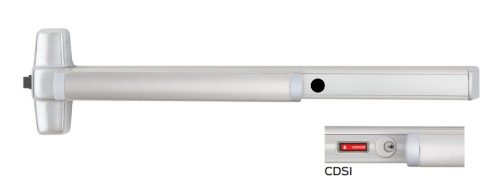

Von Duprin CDSI98EO/CDSI99EO Series Touch Bar Exit Device - Exit Only - Cylinder Dogging, Security Indicator

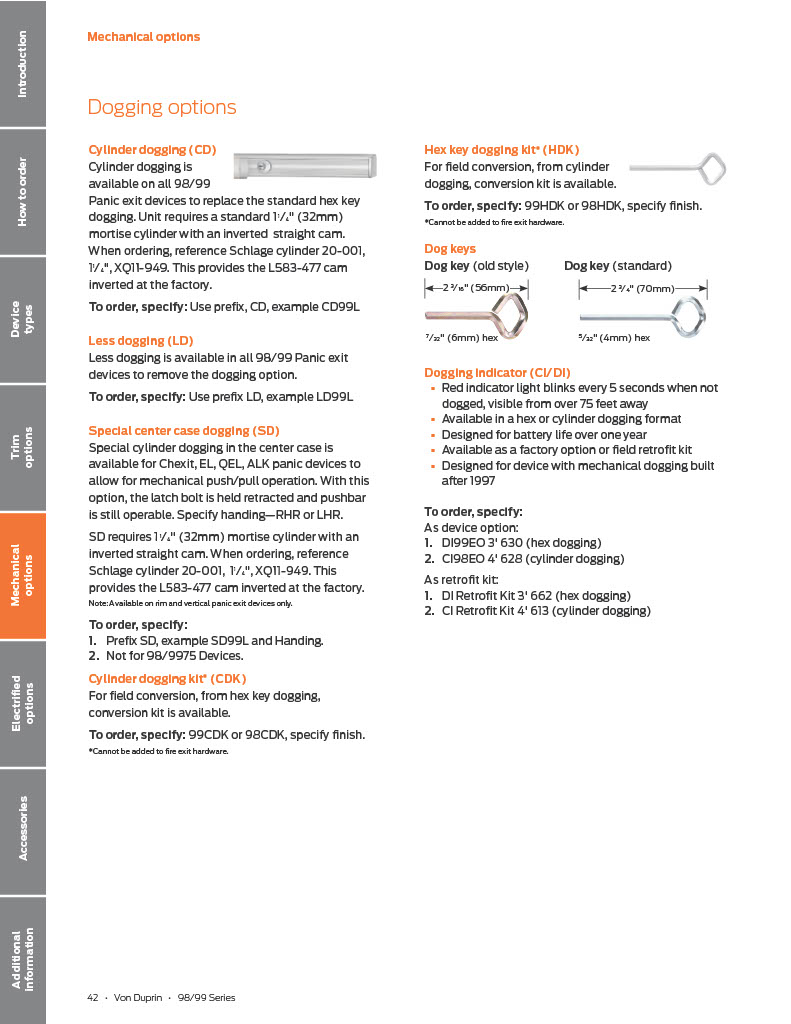

Cylinder dogging (CD) - Cylinder dogging is available on all 98/99 Panic exit devices to replace the standard hex key dogging. Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam.

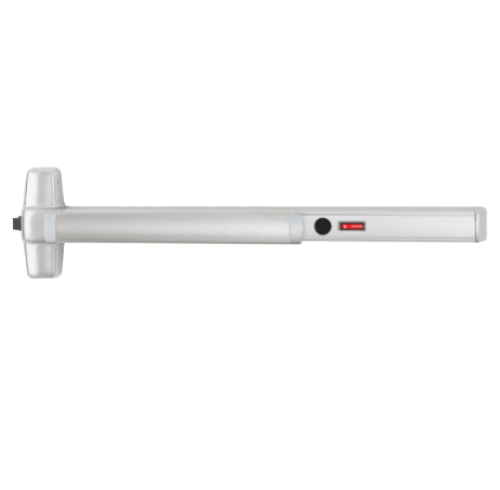

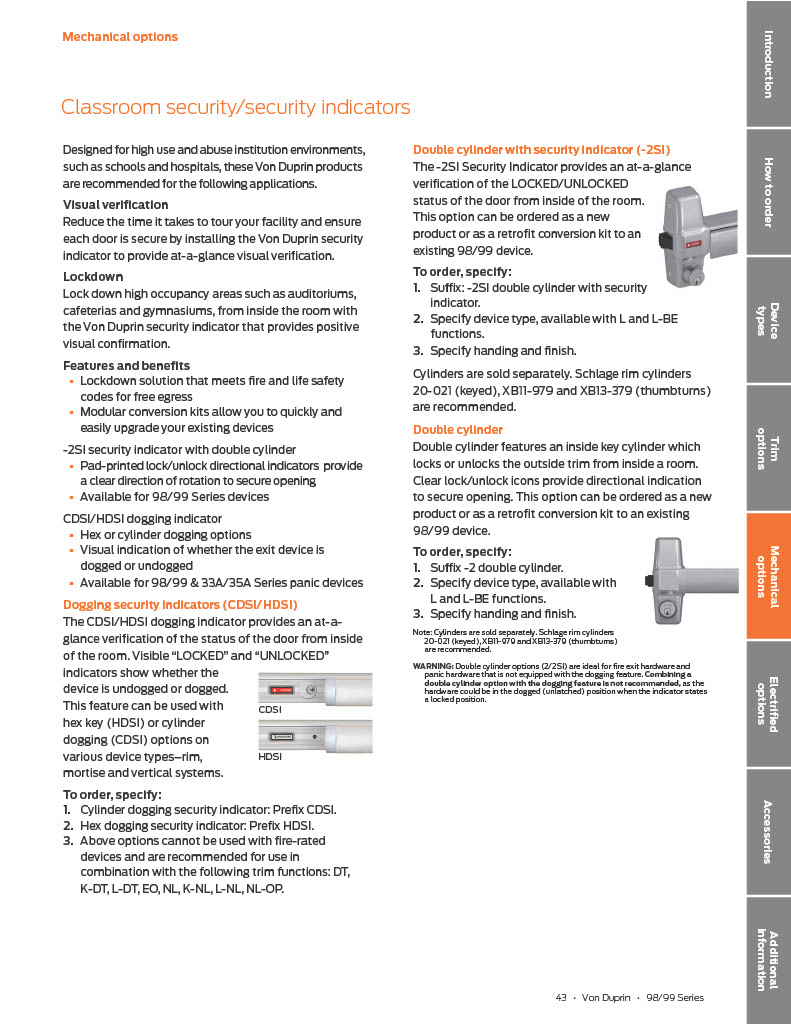

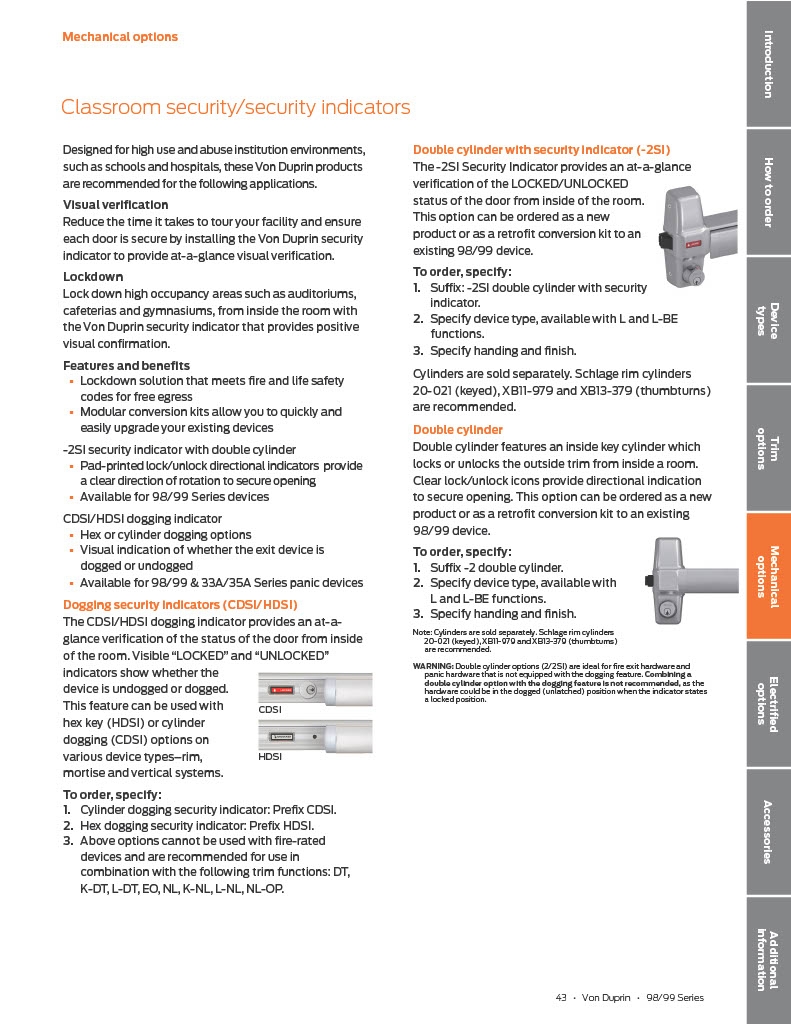

The CDSI indicator provides an at-aglance verification of the status of the door from inside of the room. Visible "LOCKED" and "UNLOCKED" indicators show whether the device is undogged or dogged. This feature can be used with hex key (HDSI) or cylinder dogging (CDSI) options on various device types rim, mortise and vertical systems.

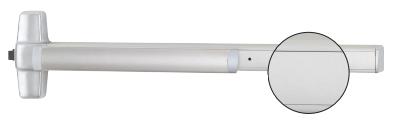

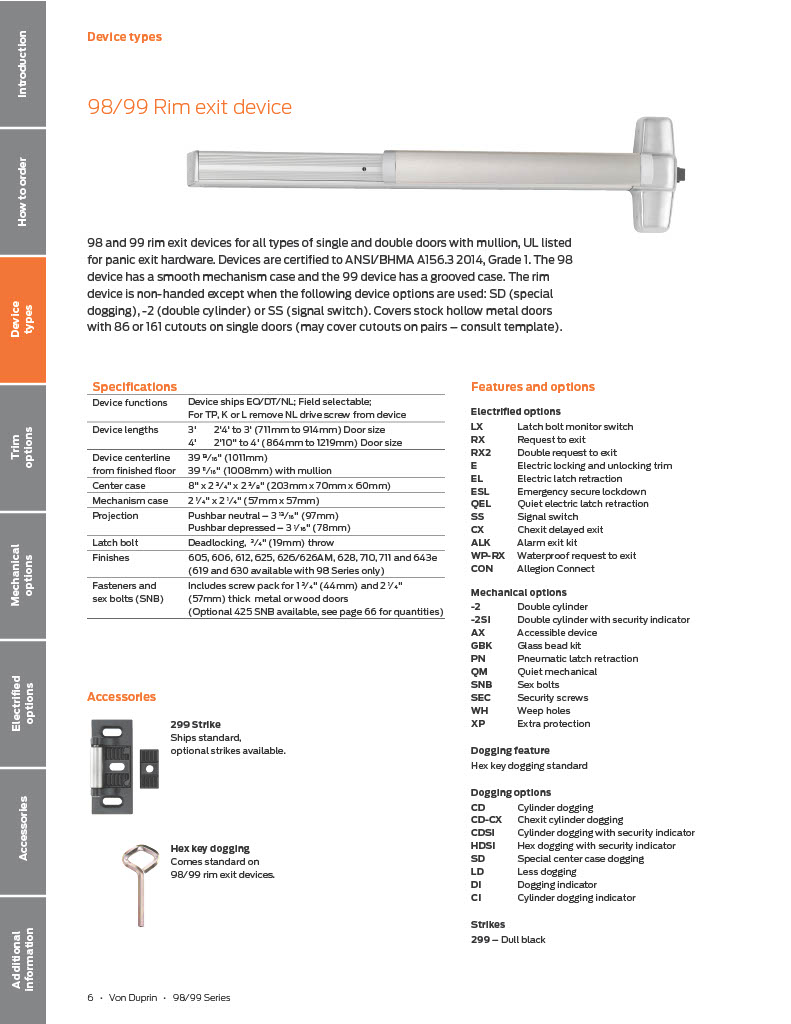

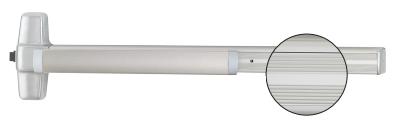

98EO and 99EO rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware, Devices are ANSI A156.3 2001 Grade 1.

Specifications:

Device lengths:  - 3' Device, 2'4' to 3' (711mm to 914mm) Door size - 4' Device, 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion

Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Latch Bolt: 3/4" (19mm) throw latch bolt.

Strike: - Device is furnished with standard 299 strike in dull black finish

Dogging: - Cylinder dogging

Projection: - Pushbar neutral  - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm)

Latch bolt Deadlocking: - 3⁄4" (19mm) throw

Handing: - Non handed

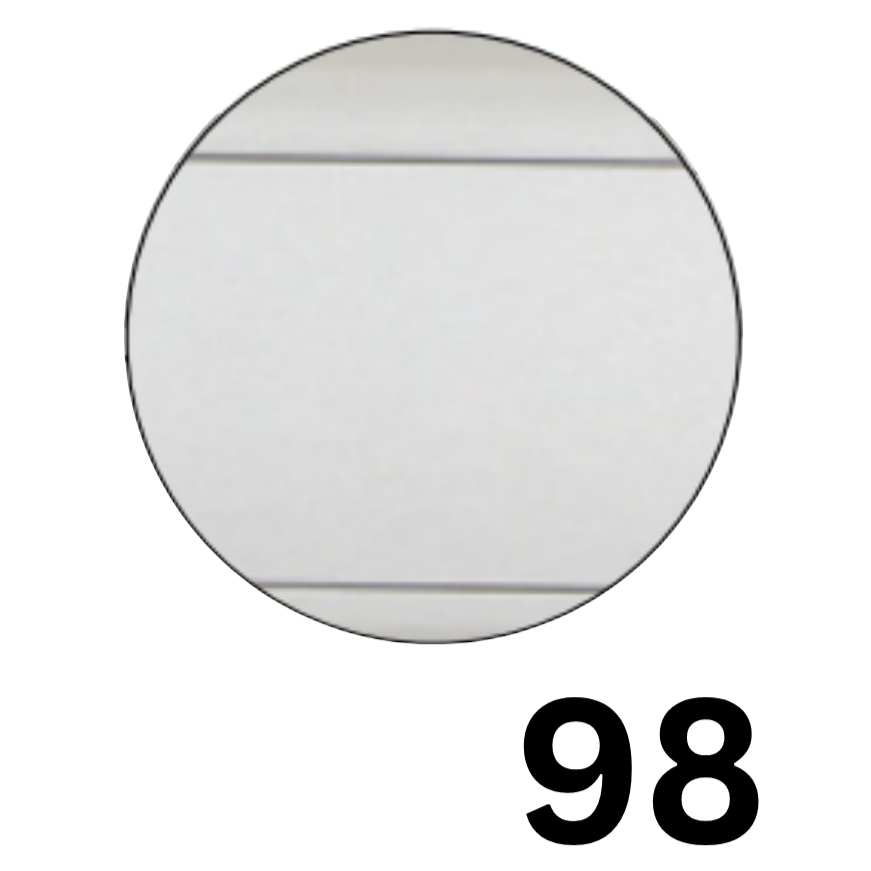

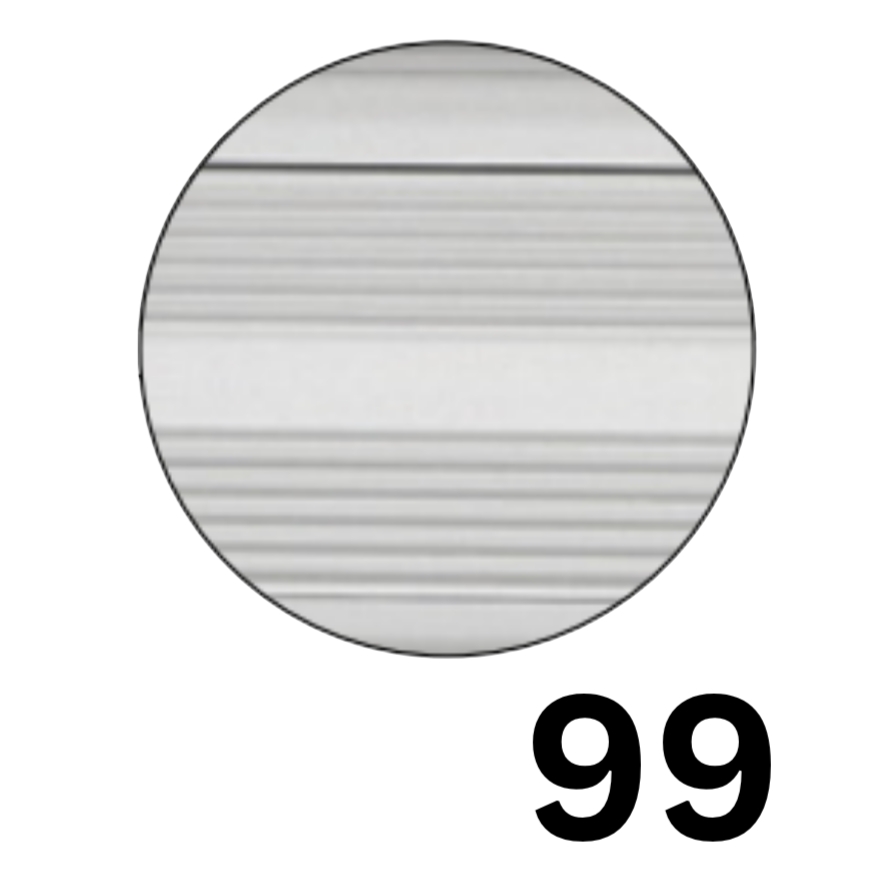

Finishes: 628, 626, 612, 710, 630, 606, 625, 605, 619, 711, 613 (619 and 630 available with 98 Series only).

Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)

**
